AFE47-BZ 730E S/N A30246-A30256 HAMMERSLEY IRON

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	VE3706	END, CAP	1
?	VE3705	FAN MOUNTING HUB	1
?	VE3696	RETAINER, SEAL ASSM (FRONT) (1)	1
?	VE4331	WEAR SLEEVE (FRONT) (1)/(2)	1
?	VE3685	MAIN BEARING (FRONT) (1)	1
?	VE1304	FACING PLATE	7
?	VE3690	CLUTCH HUB	1
?	VE4418	SNAP RING, EXTERNAL (1)	1
?	VE3692	BEARING, SLEEVE (REAR) (1)	1
?	VE3692	BEARING, SLEEVE (FRONT) (1)	1
?	VE3680	OIL SEAL (FRONT) (1)/(2)	1
?	VE3694	BEARING RETAINER (FRONT)	1
?	VE3700	O-RING SEAL (1)/(2)	1
?	VE3683	BOLT	8
?	VE3684	LOCKWASHER	8
?	VE1305	CLUTCH PLATE, STEEL	7
?	VE3687	PISTON	1
?	VE3688	SEAL RING (1)/(2)	1
?	VE6849	PULLEY	1
?	VE3684	LOCKWASHER	8
?	VE3683	BOLT	8
?	VE3700	O-RING SEAL (1)/(2)	1
?	VE3710	BEARING RETAINER (REAR)	1
?	VE3680	OIL SEAL (REAR) (1)/(2)	1
?	VE3697	SNAP RING, INTERNAL (1)	1
?	VE3689	SEAL RING, (SMALL) (1)/(2)	1
?	VE3701	SPRING WASHER (1)/(2)	1
?	VE3697	SNAP RING, INTERNAL (1)	1
?	VE3702	SNAP RING, EXTERNAL (1)	1
?	VE3703	SHIM (1)/(2)	1
?	VE3708	SHAFT & BRACKET ASSEMBLY	1
?	TH5103	SEAL RING (1)/(2)	2
?	VE3711	PITOT TUBE (1)/(2)	2
?	VE3679	SLEEVE, WEAR (REAR) (1)/(2)	1
?	VS7793	FITTING, ORIFICE	1
?	VE3696	RETAINER, SEAL ASSM (REAR) (1)	1
?	VE3685	MAIN BEARING (REAR) (1)	1
?	VE3686	SNAP RING, EXTERNAL (1)	1
?		NOTE: NS = NOT SHOWN	-1
?	VS7811	NAME PLATE KIT (1)/(2)	1
?	VE3714	ENGINE INTERCOOLER THERMO SENSOR (120 - 130 DEG)	1
?	VE3715	ENGINE JACKET COOLANT THERMO SENSOR (180 - 190 DEG)	1
?	VE3742	NOTE: (1) INCLUDED IN VE3742 OVERHAUL KIT.	-1
?	VE3741	(2) INCLUDED IN VE3741 SEAL KIT.	-1

Komatsu AFE47-BZ 730E S/N A30246-A30256 HAMMERSLEY IRON parts catalog PDF

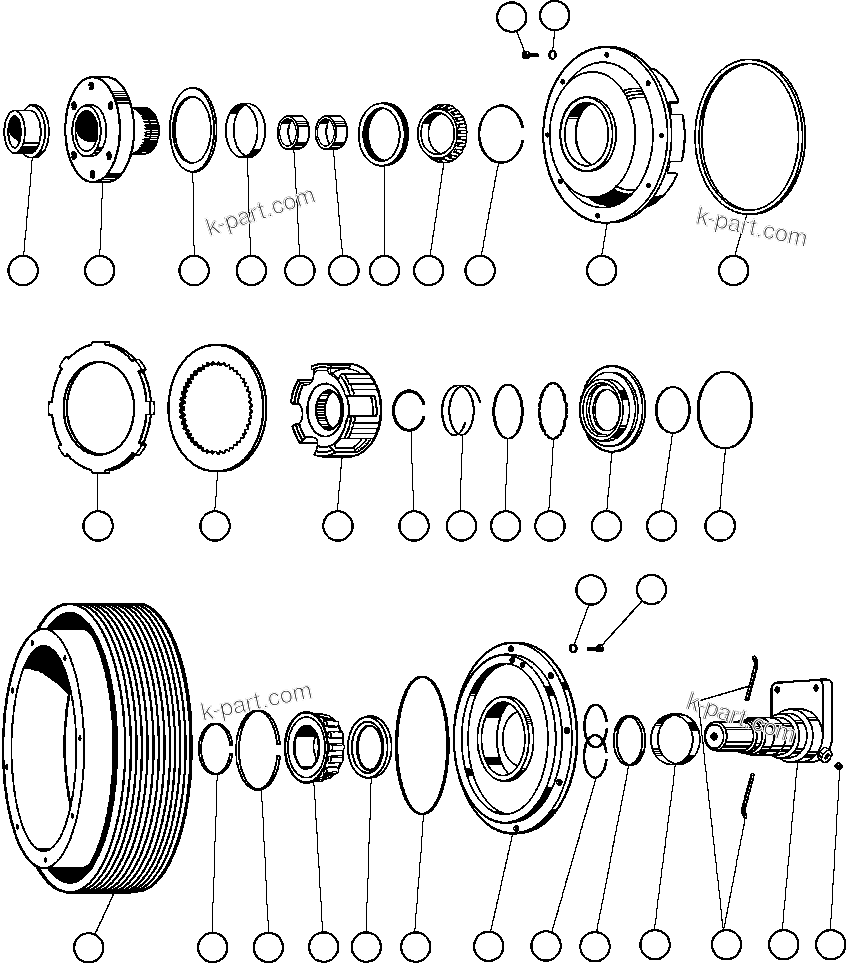

VARIABLE SPEED FAN CLUTCH (AK1940) (15243) in AFE47-BZ 730E S/N A30246-A30256 HAMMERSLEY IRON. Diagram image and parts list.
