AFE47-BZ 730E S/N A30246-A30256 HAMMERSLEY IRON

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

#	Part Number	Partname	Quantity
1	VE6807	HOUSING, BRAKE	1
2	VE6814	CAPSCREW (1)/(2)	2
3		LINING (1)/(2)/(4)/(5)	2
4		SEAL (1)/(2)/(3)/(5)	2
5	VE9652	PISTON (1)	2
6		SEAL (1)/(2)/(3)/(5)	2
7	VE6811	SPRING	8
8	VE5733	BOOT (1)/(2)/(3)	2
9	VE6812	RETAINER	2
10	VE6806	SET SCREW	1
11	BF3406	JAM NUT - 1" - 14NF	1
12	TR6102	SCREW, BLEEDER	2
13	VE6805	YOKE	1
14	VE6816	WASHER (HARDENED)	1
15	VE6815	CAPSCREW	1
16	VE9650	RING, BACKUP (1)/(2)/(3)	2
17	VE9651	RING, BACKUP (1)/(2)/(3)	2
NS\|18	BF0286	NOTE: (1) INCLUDED IN BF0286 BRAKE REBUILD KIT.	-1
NS\|19	BF0287	(2) INCLUDED IN BF0287 BRAKE SERVICE KIT.	-1
NS\|20	BF0288	(3) INCLUDED IN BF0288 SEAL KIT.	-1
NS\|21	VE7632	(4) INCLUDED IN VE7632 LINING KIT.	-1
NS\|22		(5) NOT SERVICED SEPARATELY.	-1

Komatsu AFE47-BZ 730E S/N A30246-A30256 HAMMERSLEY IRON parts catalog PDF

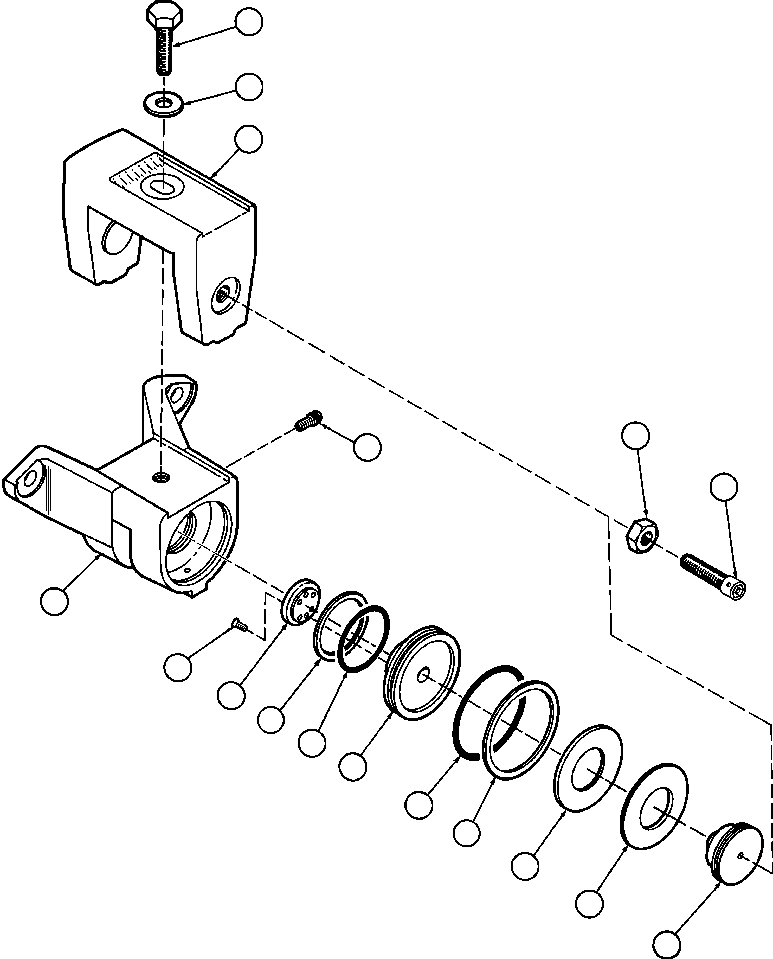

PARKING BRAKE ASSEMBLY (PB8995) (40774) in AFE47-BZ 730E S/N A30246-A30256 HAMMERSLEY IRON. Diagram image and parts list.
