AFE47-EF 730E S/N A30445 & A30446 ORAPA MINE

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	EH3089	BRACKET	1
?	MM0047	CAPSCREW - M10 X 1.50 X 30	2
?	MM0461	FLAT WASHER - M10	4
?	MM0178	NUT - M10 X 1.50	2
?	EH3086	PLATE	1
?	MM0155	CAPSCREW - M36 X 4.00 X 220 (1)	2
?	MM0185	NUT - M36 X 4.00 (1)	2
?	EF8566	PIN, BODY PIVOT (1)	2
?	TJ1049	SPACER	6
?	AK1058	BUSHING (1)	2
?	EF8562	GUIDE, BODY	1
?	EF8565	PLATE, FRAME WEAR	2
?	TY9612	PAD, BODY	8
?	TY9407	SHIM	48
?	WA0471	CAPSCREW - 1/2" - 13NC X 2 1/4"	32
?	WA4728	FLAT WASHER - 1/2"	64
?	TR6643	NUT - 1/2" - 13NC	32
?		BODY (ORDER FROM FACTORY)	1
?		NOTE: NS = NOT SHOWN	-1
?	EG8982	CABLE, BODY SLING	1
?	AK4471	NOTE: (1) INCLUDED IN AK4471 BODY PIVOT PIN KIT.	-1

Komatsu AFE47-EF 730E S/N A30445 & A30446 ORAPA MINE parts catalog PDF

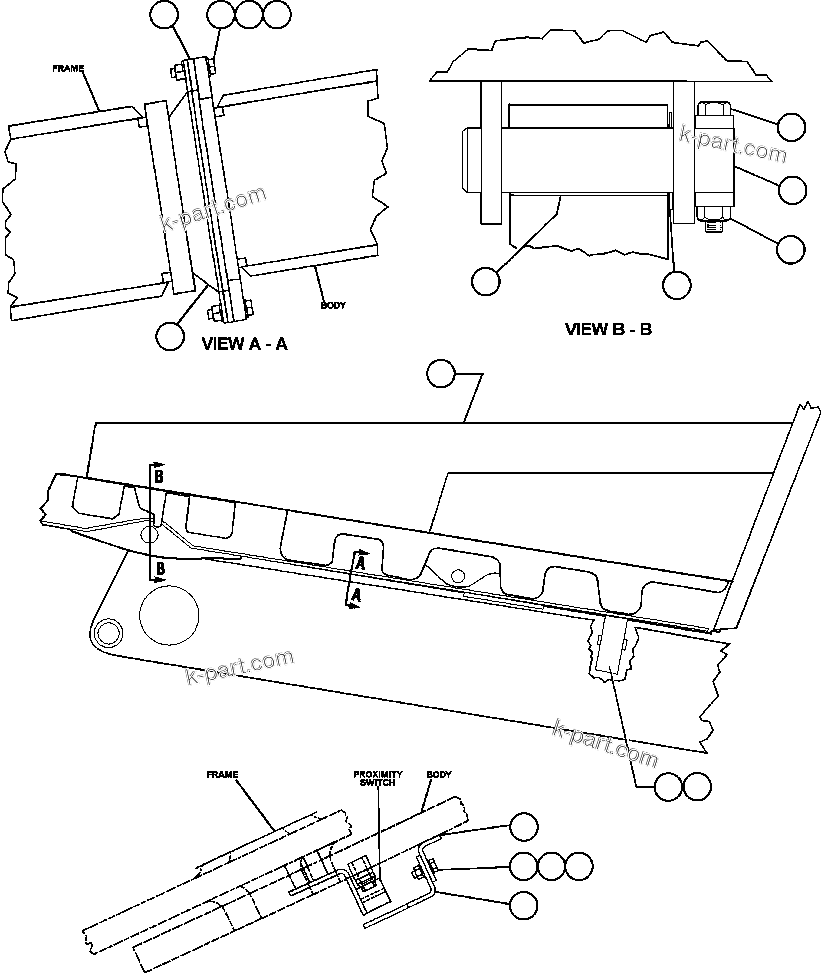

BODY & BODY PIVOT (55430) in AFE47-EF 730E S/N A30445 & A30446 ORAPA MINE. Diagram image and parts list.
