AFE47-EF 730E S/N A30445 & A30446 ORAPA MINE

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	TA1978	VENT ASSEMBLY	1
?	WB0270	FITTING, 37 DEG FLARE, 90 DEG ELBOW	1
?	WA4708	CLAMP ASSEMBLY	1
?	HA0912	HOSE	1
?	MM0460	FLAT WASHER - M8	3
?	MM0470	LOCKWASHER - M8	3
?	MM0177	NUT - M8 X 1.25	3
?	VN9913	CLAMP, VINYL - 1 1/16"	5
?	WB0408	FITTING, 37 DEG FLARE, UNION	1
?	WB0411	FITTING, 37 DEG FLARE, UNION	1
?	HA5742	HOSE	1
?	MM0461	FLAT WASHER - M10	11
?	MM0471	LOCKWASHER - M10	9
?	MM0178	NUT - M10 X 1.50	11
?	424243	CLAMP, VINYL - 3/8"	3
?	EH0744	HARNESS, FUEL TANK	1
?	VL4462	WIRE, GROUND	1
?	TG0545	FLAT WASHER - 3/8" (COPPER)	2
?	TH4849	BUSHING	1
?	WB0274	FITTING, 37 DEG FLARE, 90 DEG ELBOW	1
?	TC6058	CLAMP, VINYL - 1 1/2"	3
?	WA4710	CLAMP ASSEMBLY - 1 1/2"	2
?	MM0607	CAPSCREW - M10 X 1.50 X 35 (ZINC)	1

Komatsu AFE47-EF 730E S/N A30445 & A30446 ORAPA MINE parts catalog PDF

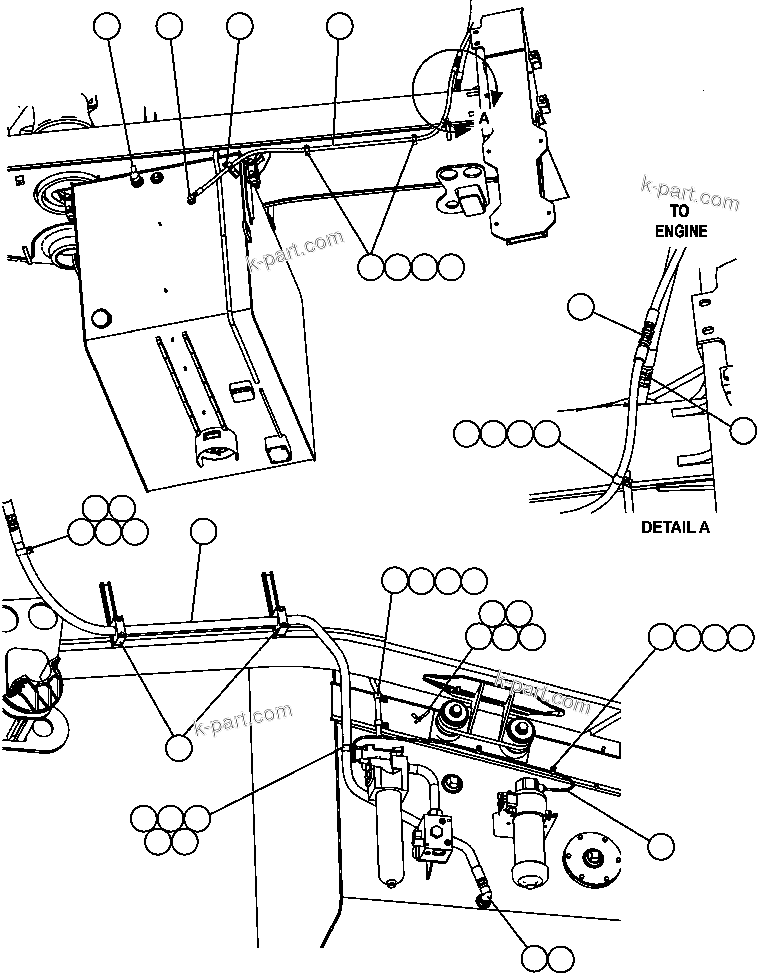

FUEL SYSTEM PIPING (55808) in AFE47-EF 730E S/N A30445 & A30446 ORAPA MINE. Diagram image and parts list.
