AFE47-EF 730E S/N A30445 & A30446 ORAPA MINE

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	HA6502	HOSE	3
?	WB0508	FITTING - 90 DEG	3
?	TF8090	CLAMP, SPLIT FLANGE	2
?	VG9095	O-RING	1
?	C1614	CAPSCREW - 1/2" - 13NC X 1 1/2"	12
?	C1540	LOCKWASHER - 1/2"	12
?	TD0791	CAPSCREW - 3/8" - 16NC X 1 1/4"	6
?	TC1231	LOCKWASHER - 3/8"	12
?	VN9037	CAPSCREW - 3/8" - 16NC X 1 1/4"	8
?	C0312	LOCKWASHER - 3/8"	21
?	WA0386	NUT - 3/8" - 16NC	8
?	EG9343	COVER, TOP	1
?	EG9344	COVER, BOTTOM	1
?	PC0184	DRIVE SHAFT ASSEMBLY (SEE FIG 55350)	1	55350
?	SG7814	CAPSCREW - 3/8" - 24NF X 1 1/4"	8
?	TL7218	CAPSCREW - 3/8" - 16NC X 7/8"	6
?	TF3231	CLAMP, SPLIT FLANGE	4
?	WA0187	O-RING	2
?	HA7768	HOSE	1
?	HA7695	HOSE	1
?	HA4273	HOSE	1
?	HA7768	HOSE	1
?	HA2463	HOSE	2
?	HA7431	HOSE	2
?	HA7723	HOSE	1
?	VL9963	CLAMP, SPLIT FLANGE	4
?	WA0237	O-RING	3
?	C1629	CAPSCREW - 5/8" - 11NC X 1 3/4"	4
?	C1541	LOCKWASHER - 5/8"	12
?	HA7340	HOSE	1
?	VM0313	PLUG	2
?	EG5531	FLANGE, ADAPTER	1
?	WA0241	O-RING	2
?	VN6903	CLAMP, SPLIT FLANGE	2
?	C1634	CAPSCREW - 5/8" - 11NC X 3"	4
?	TF3237	CLAMP	2
?	VG9096	O-RING	2
?	C1609	CAPSCREW - 7/16" - 14NC X 1 1/2"	4
?	C5775	LOCKWASHER - 7/16"	4
?	TF6925	CLAMP	1
?	VH9969	WELD STUD - 3/8" - 16NC X 3/4"	1
?	C1521	NUT - 3/8" - 16NC	1
?	EF8352	ADAPTER, FLANGE	1
?	C1634	CAPSCREW - 5/8" - 11NC X 3"	4
?	HA5194	HOSE	1
?	TF8077	CLAMP, SPLIT	2
?	VG9097	O-RING	1
?	C1603	CAPSCREW - 3/8" - 16NC X 1 1/4"	4
?	HA7509	HOSE	1

Komatsu AFE47-EF 730E S/N A30445 & A30446 ORAPA MINE parts catalog PDF

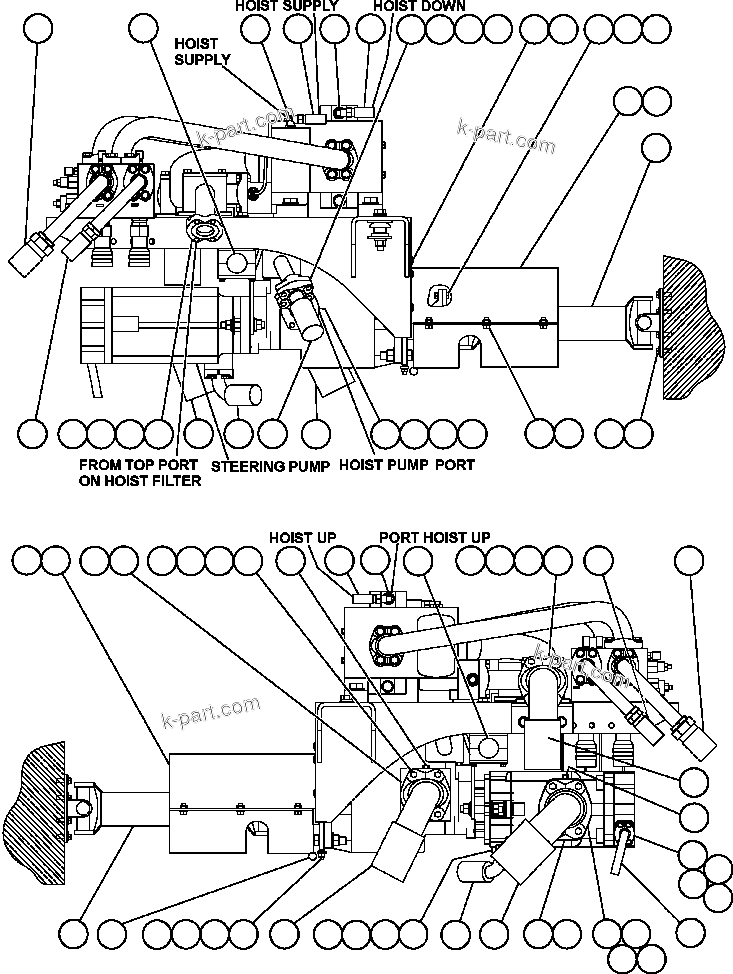

HYDRAULIC SYSTEM PIPING (55728) in AFE47-EF 730E S/N A30445 & A30446 ORAPA MINE. Diagram image and parts list.
