AFE47-EF 730E S/N A30445 & A30446 ORAPA MINE

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	PB5430	STAND-OFF, INSULATED	6
?	TR2961	CAPSCREW - 5/8" - 11NC X 1"	7
?	TR9082	FLAT WASHER - 5/8"	21
?	VC1390	LOCKWASHER - 5/8"	9
?	VC5162	CAPSCREW - 5/8" - 11NC X 1 1/4"	2
?	TK5255	BAR, BUS	2
?	EB5496	BAR, BUS	2
?	PB8567	STAND-OFF, INSULATED	3
?	VE6118	PANEL, VMM (SEE INDEX)	2	64067
?	MM0459	FLAT WASHER - M6	4
?	MM0469	LOCKWASHER - M6	4
?	MM0176	NUT - M6	4
?	PB4267	PANEL, RESISTOR	2
?	F0043	MACHINE SCREW - #10 X 1 3/4"	4
?	VC5344	FLAT WASHER - #10	4
?	DC3101	LOCKWASHER - #10	4
?	ED0904	COVER, INSULATED SHEET	1
?	EC7464	PLATE, NAME - 7J7	1
?	WA3108	PLATE, DANGER HIGH VOLTAGE	3
?	EC7469	PLATE, NAME - 7J1RS	1
?	EC7468	PLATE, NAME - 7J1LS	1
?	TZ7544	PLATE, NAME - LOAD TEST	1
?	TZ7524	PLATE, NAME - VMM1	1
?	TZ7548	PLATE, NAME - VDR3	1
?	TZ7520	PLATE, NAME - GFIP	1
?	TZ7525	PLATE, NAME - VMM2	1
?	EC7467	PLATE, NAME - 7J8	1
?	EC7466	PLATE, NAME - 7J1L	1
?	EC7465	PLATE, NAME - 7J1R	1

Komatsu AFE47-EF 730E S/N A30445 & A30446 ORAPA MINE parts catalog PDF

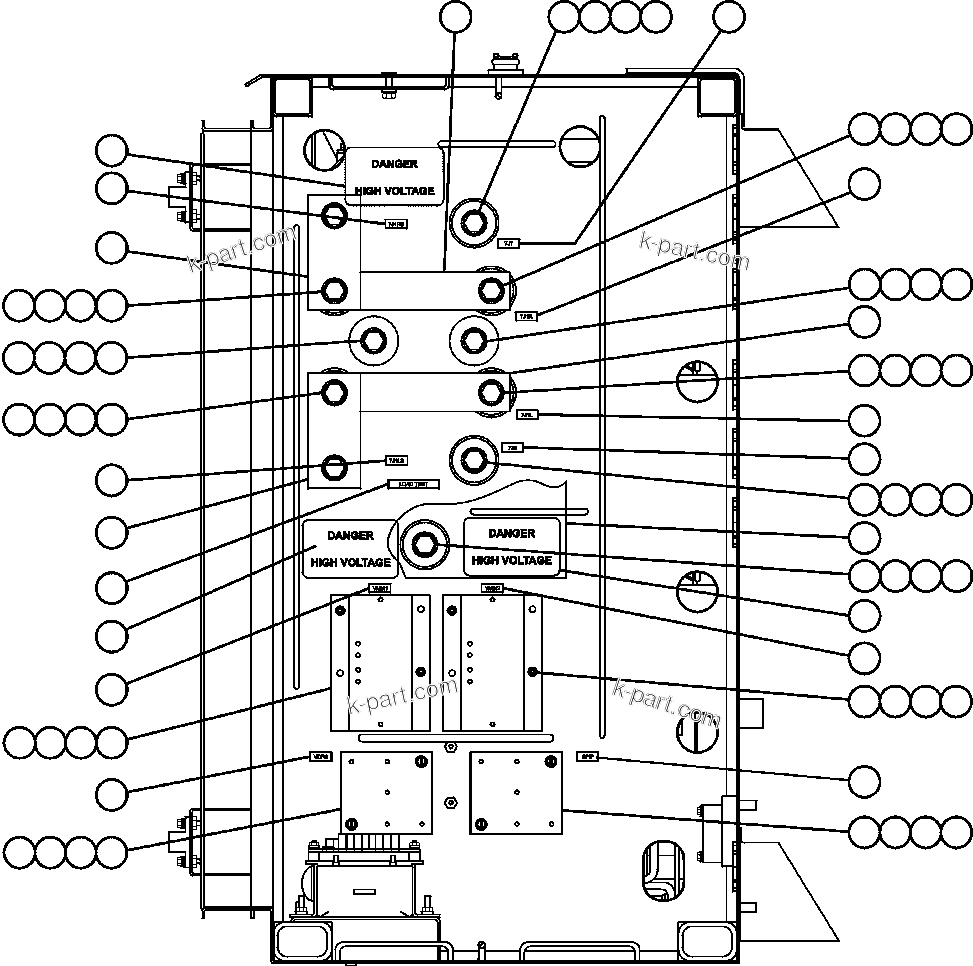

CONTROL CABINET - CENTER DOOR (LEFT SIDE WALL) (41445) in AFE47-EF 730E S/N A30445 & A30446 ORAPA MINE. Diagram image and parts list.
