AFE47-EF 730E S/N A30445 & A30446 ORAPA MINE

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	EL7958	CYLINDER, STEERING (SEE FIG 55690)	2	55690
?	EK9257	TIE ROD ASSEMBLY (SEE FIG 55694)	1	55694
?	EB4430	RETAINER (1)/(2)	8
?	MM0697	LOCKNUT - M20 X 2.50 (1)/(2)	6
?	EK3378	SPACER (1)/(2)	12
?	EK3379	SEAL, BEARING (1)/(2)	12
?	PC1680	BEARING, SPHERICAL (1)/(2)	6
?	EB4429	PIN (1)	2
?	MM0690	CAPSCREW - M20 X 2.50 X 240 (1)	2
?	EK9254	RETAINER, BEARING (2)	6
?	C1602	CAPSCREW - 3/8" - 16NC X 1"	36
?	C0312	LOCKWASHER - 3/8"	36
?	EF7599	WASHER (2)	4
?	MM0735	CAPSCREW - M20 X 2.5 X 220 (2)	4
?	EH0875	PIN (2)	4
?	WA4817	CAPSCREW - 1 1/4" - 12NF X 5" (12 POINT)	54
?	EJ9962	PLATE, RETAINER	2
?	TY2149	FLAT WASHER - 1 1/4" (HARDENED)	16
?	EL6069	STEERING ARM - R.H.	1
?	EL6070	STEERING ARM - L.H.	1
?	AK3731	NOTE: (1) INCLUDED IN AK5167 STEERING PIN KIT.	-1
?	AK5109	(2) INCLUDED IN AK5109 STEERING CYLINDER	-1
?		AND TIE ROD PIN KIT.	-1

Komatsu AFE47-EF 730E S/N A30445 & A30446 ORAPA MINE parts catalog PDF

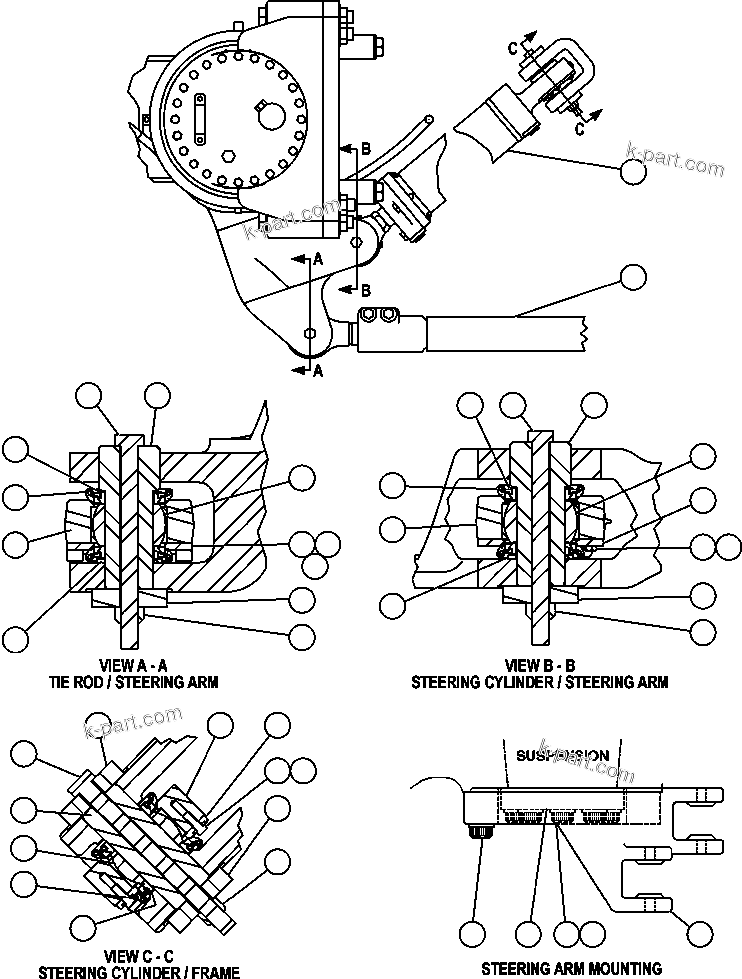

STEERING ARMS & LINKAGE (55695) in AFE47-EF 730E S/N A30445 & A30446 ORAPA MINE. Diagram image and parts list.
