AFE47-EC 730E S/N A30434-A30436, A30438-A30439 KAL

? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	AK7552	UNIVERSAL HOUSING ASSEMBLY	1
?	AK7575	BULB, LIGHT - 24V/65W (1)/(2)/(3)/(5)	1
?	AK4236	BULB, LIGHT - 24V/100W (4)	1
?	AK7554	SPRING, BULB RETAINER (MULTIPAK 10)	1
?	AK3352	LENS/REFLECTOR - RETARD - AMBER (WITHOUT BULB) (1)	1
?	AK3354	LENS/REFLECTOR - STOP/TAIL - RED (WITHOUT BULB) (2)	1
?	AK3337	LENS/REFLECTOR - BACKUP - CLEAR (WITHOUT BULB) (3)/(4)	1
?	AK7534	LENS/REFLECTOR - BACKUP - CLEAR (WITHOUT BULB) (5)	1
?	AK7556	GASKET (MULTIPAK 10)	1
?	AK7559	BEZEL	1
?	AK7561	SCREW (MULTIPAK 30)	3
?	AK7560	HARDWARE KIT	1
?		NOTE: (1) INCLUDED IN AK3357 RETARD (TURN/CLEARANCE)	-1
?		LIGHT ASSEMBLY.	-1
?		(2) INCLUDED IN AK3359 STOP/TAIL LIGHT ASSM.	-1
?		(3) INCLUDED IN AK3320 FLOOD (BACKUP) LIGHT ASSM.	-1
?		(4) INCLUDED IN AK3326 OPTIONAL FLOOD (BACKUP)	-1
?		LIGHT ASSEMBLY.	-1
?		(5) INCLUDED IN AK7503 FLOOD (BACKUP) LIGHT ASSM.	-1
?		(ALL PARTS ARE COMMON, EXCEPT WHERE INDICATED.)	-1

Komatsu AFE47-EC 730E S/N A30434-A30436, A30438-A30439 KAL parts catalog PDF

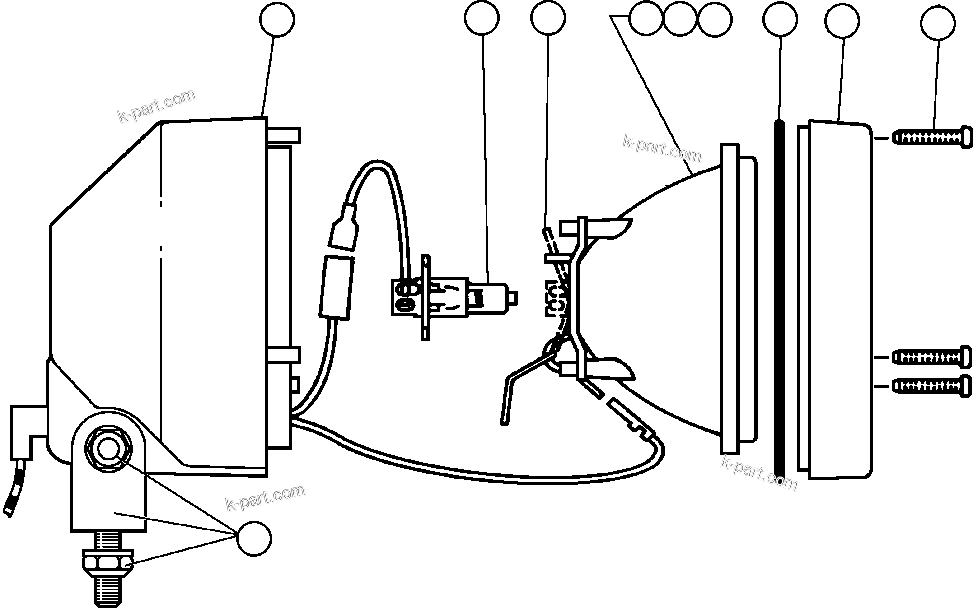

LIGHT ASSEMBLY (SUPER HALOGEN) - 2 (55733) in AFE47-EC 730E S/N A30434-A30436, A30438-A30439 KAL. Diagram image and parts list.
