AFE47-EC 730E S/N A30434-A30436, A30438-A30439 KAL

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	VE4648	WASHER - 5/16"	-1
?	VE4696	LOCKWASHER - 5/16"	-1
?	VE5013	NUT - 5/16" - 18NC	-1
?	GE0671	FRAME ASSEMBLY	4
?	XA2761	SHIELD, INSULATION	4
?	XA3538	CONTACTOR ASSEMBLY	7
?	VE1317	CONTACTOR - GF & GFR (SEE INDEX)	7	64069
?	VE3530	INTERLOCK (SEE INDEX)	7	64035
?	XA3544	COUNTERWEIGHT	7
?	XA3543	BRACKET	7
?	XA3545	SET SCREW	7
?	XA3546	CAPSCREW - #10 - 32NF X 1"	14
?	XA2760	SHIELD, INSULATION	4
?	VE4739	CAPSCREW - 3/8" - 16NC X 1"	-1
?	VE4515	FLAT WASHER - 3/8"	-1
?	VE4687	LOCKWASHER - 3/8"	-1
?	GE0018	DIFFUSER ASSEMBLY	4
?	GE0019	GASKET	8
?	GE0020	GASKET	8
?	VJ2672	CEMENT	-1
?	XA2748	BUS BAR - 1/2" THICK	4
?	XA2754	BUS BAR - INSULATED	1
?	XA2753	BUS BAR - INSULATED	1
?	GE0023	INSULATOR	28
?	XA2476	GRID, RETARDING	2
?	XA2475	GRID, RETARDING	12
?	GE0021	COLLAR ASSEMBLY	4
?	XA2745	BUS BAR - INSULATED	5
?	XA3510	WELDMENT, GRID	-1
?	XA3549	CASE, WELDMENT	-1
?		NOTE=(NOT SHOWN)	-1
?	XA3399	WIRING KIT	-1
?	XA3400	WIRING KIT	-1

Komatsu AFE47-EC 730E S/N A30434-A30436, A30438-A30439 KAL parts catalog PDF

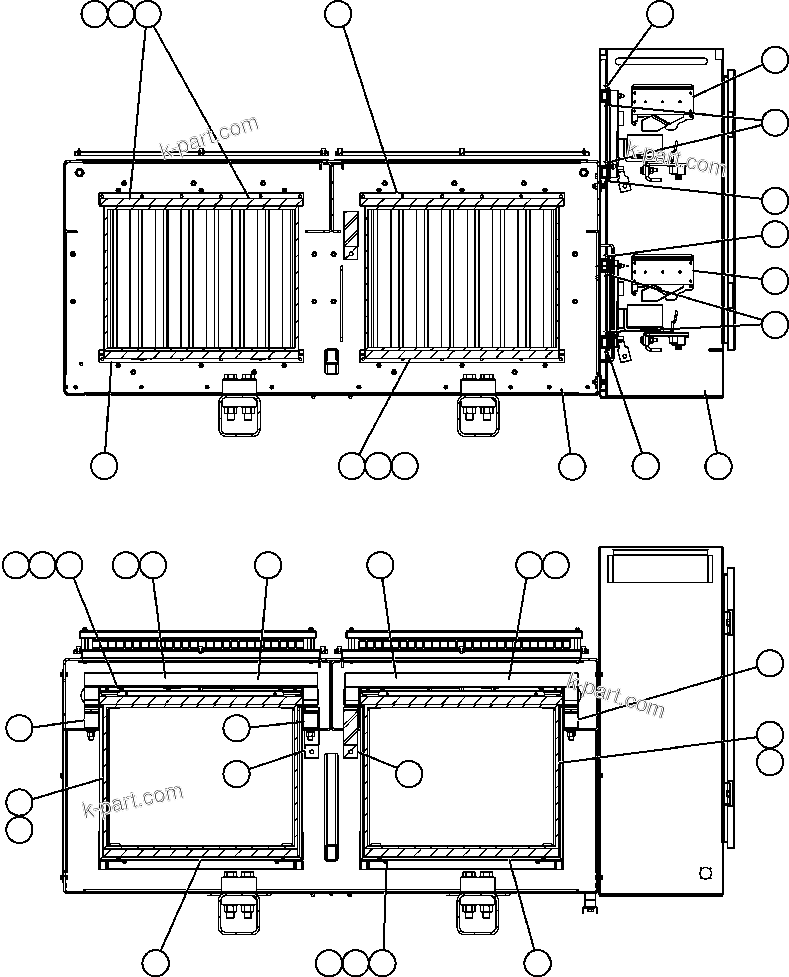

RETARDING GRID ASSEMBLY - 7 STEP - 1 (PC2158) (42053) in AFE47-EC 730E S/N A30434-A30436, A30438-A30439 KAL. Diagram image and parts list.
