AFE47-DW 730E S/N A30410-A30411 & A30417 LOMAS BAYAS

6 1 2 4 5 8 7 4 29 6 30 2 59 33 31 32 34 1 35 9 10 11 36 3 12 37 13 38 45 14 39 58 46 15 42 16 41 40 17 51 18 52 47 19 53 44 48 43 20 54 50 49 55 21 56 22 57 23 60 24 25 26 27 28

#	Part Number	Partname	Quantity
1	BF5470	SCREW, FLAT HEAD	2
2	BF5471	WEIGHT, OUTER	2
3	XA2789	LOCKWASHER	2
4	BF5473	RING, RETAINING	2
5	BF5474	CRANKROD	1
6	BF5511	RING, RETAINING	2
7	BF5475	CRANK, ECCENTRIC	1
8	BF5476	BEARING, BALL	1
9	BF5477	PIN, OUTLET	1
10		O-RING (1)	1
11	BF5478	TUBE, PLUNGER	1
12	XA2790	SCREW, BUTTON HEAD	2
13	BF5480	BUSHING, WRIST PIN	2
14	BF5481	ANCHOR, WRIST PIN	1
15		WASHER, BACKUP (1)	1
16		SEAL, CUP (1)	1
17	BF5482	ROD, PLUNGER	1
18	BF5483	SPRING	1
19	LA0906	BALL, STEEL	1
20	XA2017	PLUNGER	1
21	BF5485	TUBE, RECIPRICATING	1
22		SEAL, CUP (1)	1
23		O-RING (1)	1
24	BF5486	CYLINDER	1
25	BF5487	CAGE, BALL	1
26	BF3823	BALL, STEEL	1
27		O-RING (1)	1
28	BF5488	SEAT, CHECK	1
29	BF5489	SCREW, SELF TAPPING	6
30	BF5490	COVER, HOUSING	1
31		GASKET, COVER (1)	1
32	BF5491	GAUGE, PRESSURE	1
33	BF5492	SCREW, SOCKET HEAD	4
34	BF5493	CARTRIDGE, VALVE	1
34	BF5507	SEAL KIT	1
35	BF5494	VALVE, SOLENOID	1
36	PB9784	CONNECTOR	1
37	XA2018	MANIFOLD	1
38	PC1770	VALVE, PRESSURE REDUCING	1
38	BF5508	SEAL KIT	1
39	PC1769	VALVE, FLOW CONTROL	1
39	BF5509	SEAL KIT	1
40	BF5498	MOTOR, HYDRAULIC	1
41		GASKET (1)	1
42		O-RING (1)	2
43	XA2147	WASHER	2
44	BF5499	SCREW, SOCKET HEAD	2
45	BF5500	PLUG, PIPE	1
46	BF5501	HOUSING, PUMP	1
47		RING, BACKUP (1)	2
48		O-RING (1)	2
49		O-RING (1)	2
50	BF5502	NUT	2
51	BF5503	BEARING, BRONZE	1
52		O-RING (1)	1
53		WASHER, BACKUP (1)	1
54		O-RING (1)	1
55	BF5504	TUBE, HOUSING	1
56	BF5505	PLUG, SHOVEL	1
57	BF5506	RING, RETAINING	1
58	BF5510	FITTING, ORIFICE	1
59		GASKET (1)	6
60	XA2148	STRAINER, INLET (2)	1
NS\|64	BF5513	NOTE: (1) NOT SERVICED SEPARATELY. INCLUDED IN	-1
NS\|65		BF5513 SOFT GOODS KIT.	-1
NS\|66		(2) OPTIONAL COMPONENT. NOT INCLUDED IN	-1
NS\|67		LUBE PUMP ASSEMBLY.	-1

Komatsu AFE47-DW 730E S/N A30410-A30411 & A30417 LOMAS BAYAS parts catalog PDF

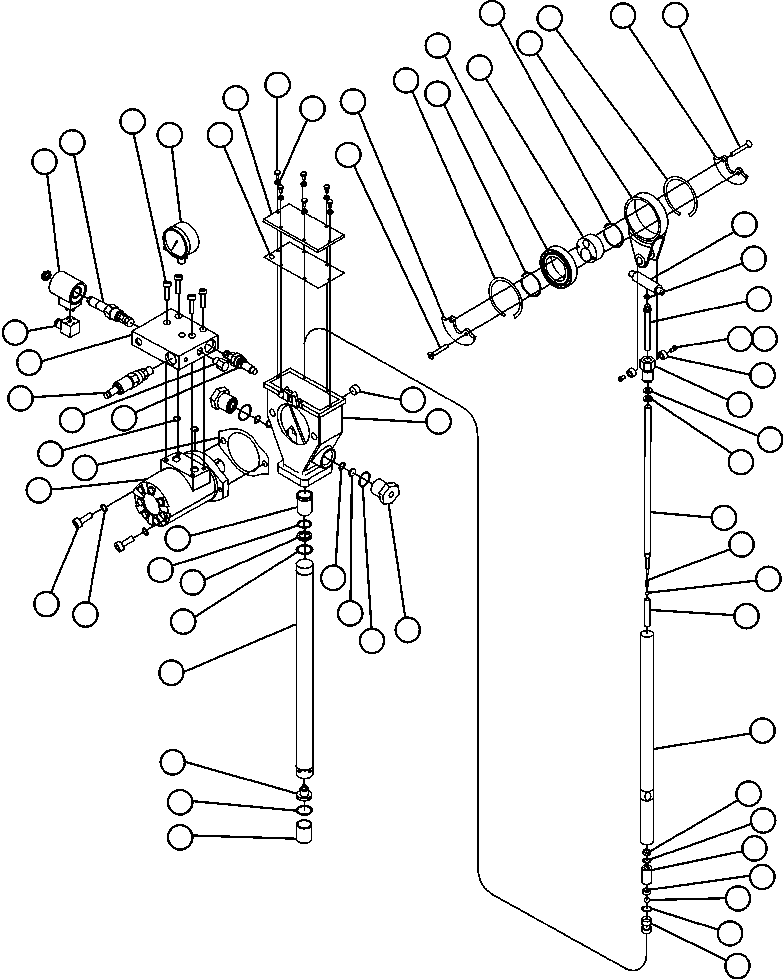

LUBE PUMP ASSEMBLY (PC1767) (55688) in AFE47-DW 730E S/N A30410-A30411 & A30417 LOMAS BAYAS. Diagram image and parts list.
