AFE47-DW 730E S/N A30410-A30411 & A30417 LOMAS BAYAS

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	XA2761	SHIELD, INSULATION	4
?	BF4452	MODULE	7
?	GE0032	BUS BAR	5
?	XA3538	CONTACTOR ASSEMBLY	7
?	VE1317	CONTACTOR - GF & GFR (SEE INDEX)	7	64069
?	VE3530	INTERLOCK (SEE INDEX)	7	64035
?	XA3544	COUNTERWEIGHT	7
?	XA3543	BRACKET	7
?	XA3545	SET SCREW	7
?	XA3546	CAPSCREW - #10 - 32NF X 1"	14
?	XA2760	SHIELD, INSULATION	4
?	VE4515	FLAT WASHER - 3/8"	-1
?	VE4687	LOCKWASHER - 3/8"	-1
?	TC1233	NUT - 3/8" - 16NC	-1
?	VW6069	BOLT, INSULATED W/ NUT & WASHER	-1
?	VE4999	CAPSCREW - 1/2" - 13NC X 2"	-1
?	VE4519	FLAT WASHER - 1/2" (NARROW)	-1
?	VE4699	LOCKWASHER - 1/2"	-1
?	XA2748	BUS BAR - 1/2" THICK	4
?	XA2754	BUS BAR - INSULATED	1
?	XA2755	BUS BAR - INSULATED	2
?	XA2476	GRID, RETARDING	2
?	XA2475	GRID, RETARDING	2
?	GE0021	COLLAR ASSEMBLY	4
?	GE0018	DIFFUSER ASSEMBLY	4
?	GE0019	GASKET	8
?	GE0020	GASKET	8
?	GE0017	MOTOR, BLOWER (SEE INDEX)	1	64000
?	XA2746	BUS BAR - INSULATED	5
?	XA2751	BUS BAR - 3/8" THICK	2
?		(SEE FOLLOWING PAGE FOR DETAILS B & C)	-1

Komatsu AFE47-DW 730E S/N A30410-A30411 & A30417 LOMAS BAYAS parts catalog PDF

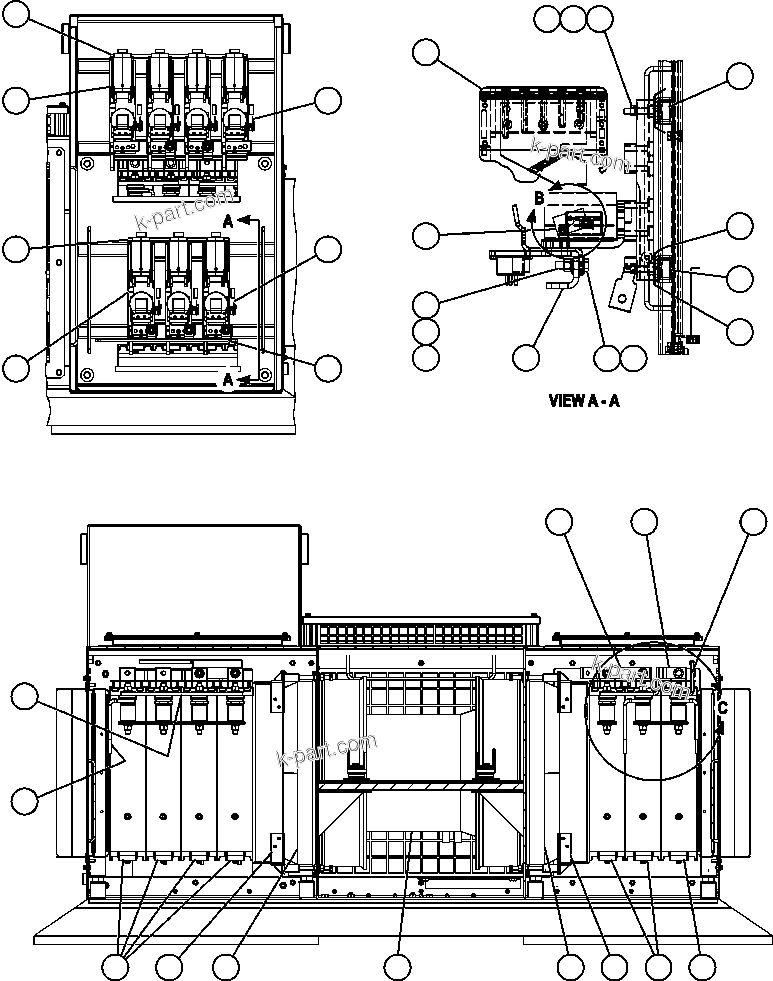

RETARDING GRID ASSEMBLY - 7 STEP - 2 (PC2158) (64249) in AFE47-DW 730E S/N A30410-A30411 & A30417 LOMAS BAYAS. Diagram image and parts list.
