AFE47-CM 730E S/N A30310 & A30312-A30317 A.T. MASSEY

1 14 28 14 13 28 12 29 17 27 12 13 23 15 8 12 27 23 11 3 16 3 22 11 12 9 19 3 30 13 12 14 11 12 21 15 30 26 3 3 26 4 10 6 24 3 27 28 28 27 3 2 3 3 2 5 28 27 3 6 24 7 7 27 3 2 3 27 28 10 13 12 14 30 23 11 7 20 12 8 12 7 11 3 16 3 9 23 12 12 12 22 13 12 29 27 13 13 14 28 14 18 25

#	Part Number	Partname	Quantity
1	PB8838	PANEL	1
2	TR1306	CAPSCREW - 1/4" - 20NC X 1"	12
3	VE7202	FLAT WASHER - 1/4"	-1
4	VE5129	BAR, BUS / SCREW	1
5	VE5130	BAR, BUS / SCREW	1
6	VE5131	MACHINE SCREW - 1/4" - 20NC X 1/2"	2
7	VE0037	RECTIFIER / CLAMP	4
8	VE0301	BUS BAR	2
9	VE0302	BUS BAR	2
10	VE0297	BUS BAR / SCREWS	2
11	VE4905	MACHINE SCREW - #10 - 32NF X 1 1/4"	8
12	VS6662	FLAT WASHER - #10	-1
13	DC3101	LOCKWASHER - #10	16
14	SF2755	NUT	10
15	VE0036	DIODE WITH CLAMP	2
16	VS7514	BOARD, TERMINAL	2
17	VE4904	PLATE, INDICATOR	2
18	VE4916	MACHINE SCREW - #10 - 32NF X 1/2"	6
19	VE7272	SEALER	-1
20	VE4917	CLAMP, CABLE	1
21	VE5133	CLAMP, CABLE	1
22	VE4921	MACHINE SCREW - #10 - 32NF X 1"	6
23	VP9525	PIN, SPRING DOWEL	4
24	VE5136	PIN, SPRING DOWEL	2
25	BF0932	SENSOR, THERMISTOR - 100,000 OHM	1
26	VE6320	CAPSCREW - 1/4" - 20NC X 1 1/8"	4
27	DC3584	LOCKWASHER - 1/4"	-1
28	VE4902	NUT	-1
29	C5746	CAPSCREW - 1/4" - 20NC X 3/4"	5
30	VE4383	MACHINE SCREW - #4 - 40NF X 1/2"	4

Komatsu AFE47-CM 730E S/N A30310 & A30312-A30317 A.T. MASSEY parts catalog PDF

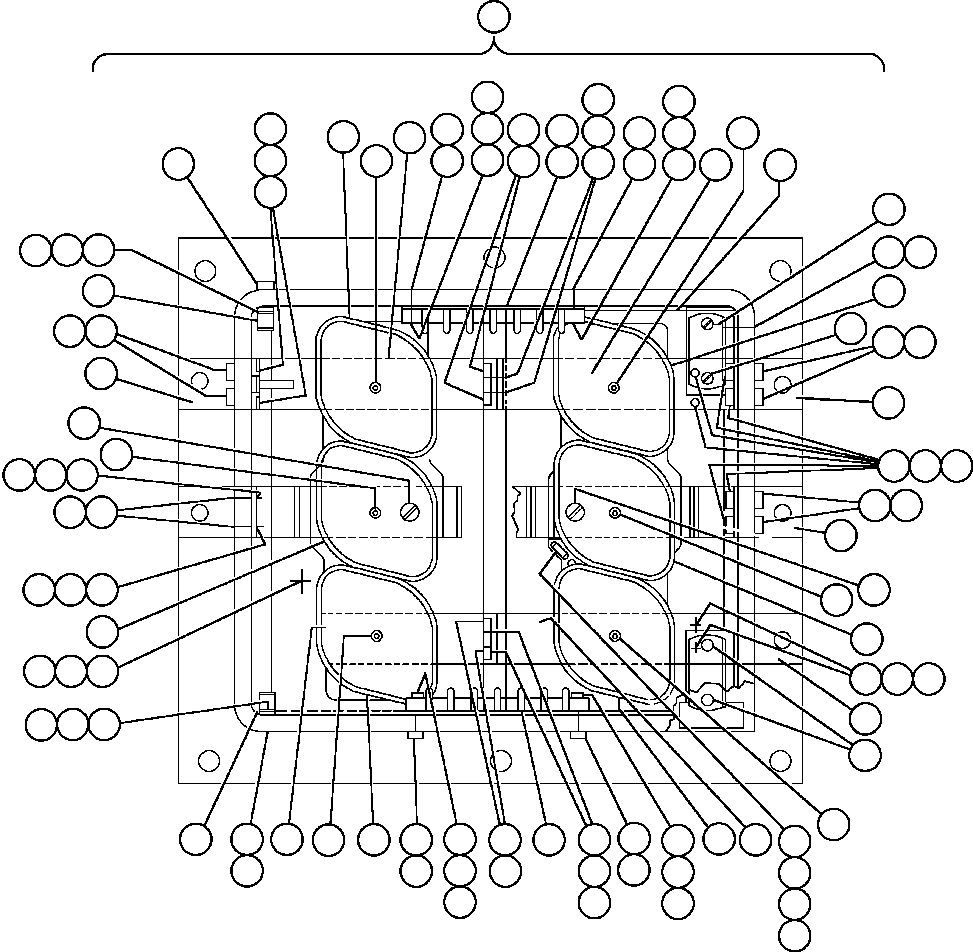

PANEL - A.F.S.E. (PB8838) (64071A) in AFE47-CM 730E S/N A30310 & A30312-A30317 A.T. MASSEY. Diagram image and parts list.
