AFE47-CA 730E S/N A30257 & A30260 FOSCOR

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	XA2283	GAS MANIFOLD KIT	1
?	EJ7887	MANIFOLD, GAS VALVE	1
?	MM0603	CAPSCREW - M10 X 1.50	2
?	MM0471	LOCKWASHER - M10	2
?	TV1294	GUARD	1
?	PB2194	CHARGING VALVE ASSEMBLY (1)	1
?	TR9993	CAP, VALVE	1
?	TD7179	CORE, VALVE	1
?	TF1144	O-RING - HOUSING	1
?	WA0052	O-RING - VALVE STEM	1
?	VD5076	GASKET (1)	1
?	TC9899	O-RING	1
?	EC1015	GAS VALVE ASSEMBLY	1
?	TD7179	CORE, VALVE	1
?	EC1447	BODY, VALVE	1
?	TL3995	O-RING	1
?	PB8333	SWITCH, PRESSURE (NOT INCLUDED IN ASSEMBLY)	1
?	XA0069	NUT	1
?	XA0065	BLADDER ASSEMBLY	1
?	AK4788	KIT, BLADDER REPAIR	1
?	XA0068	SHELL	1
?	XA0067	RING, ANTI-EXTRUSHION	1
?	XA1929	WASHER, BACKUP	1
?	XA0071	O-RING	1
?	XA0072	RING, BACKUP	1
?	XA0073	SPACER	1
?	XA0074	RING, LOCKING	1
?	XA0066	VALVE PORT ASSEMBLY	1
?	XA0077	PLUG, BLEED	1
?	RK1887	NOTE: (1) INCLUDED IN RK1887 REPAIR KIT.	-1

Komatsu AFE47-CA 730E S/N A30257 & A30260 FOSCOR parts catalog PDF

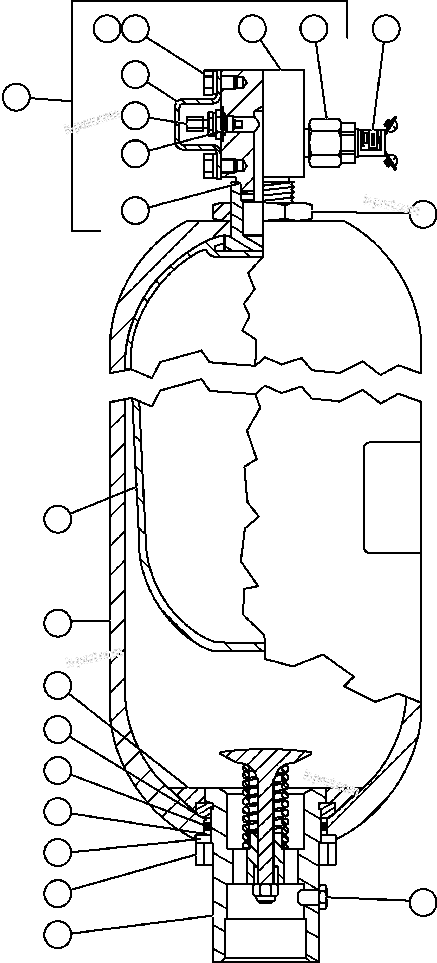

STEERING ACCUMULATOR ASSEMBLY (PC1338) (60678) in AFE47-CA 730E S/N A30257 & A30260 FOSCOR. Diagram image and parts list.
