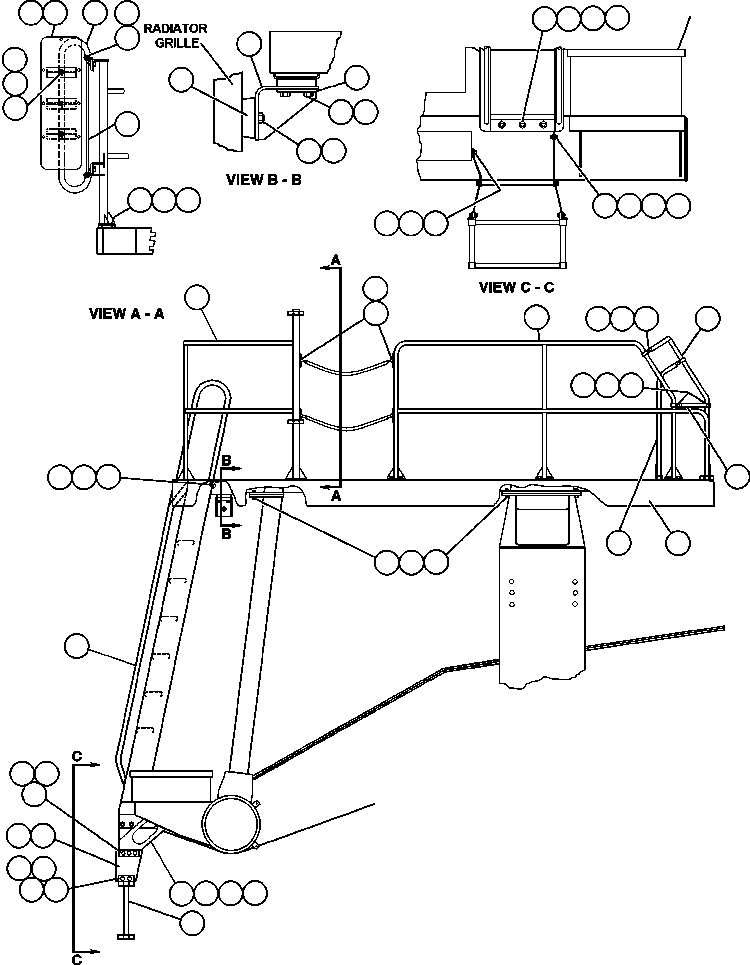

LEFT DECK, LADDER & STEP | AFE47-CA 730E S/N A30257 & A30260 FOSCOR

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Reference
1	EK2827	HANDRAIL, FRONT - L.H.	1
2	TB8588	ROD, FORMED	2
3	EG8963	CHAIN	2
4	EG9339	HANDRAIL, REAR - L.H.	1
5	EK1361	DECK - L.H.	1
6	MM0091	CAPSCREW - M20 X 2.50 X 80	6
7	EC7594	FLAT WASHER - M20 (HARDENED)	12
8	MM0697	LOCKNUT - M20 X 2.50	6
9	MM0461	FLAT WASHER - M10	12
10	MM0693	LOCKNUT - M10 X 1.50	3
11	MM0032	CAPSCREW - M12 X 1.75 X 30	3
12	MM0720	NUT - M12 X 1.75	3
13	ED5897	STEP EXTENSION - L.H.	1
14	MM0024	CAPSCREW - M10 X 1.50 X 16	3
15	MM0050	CAPSCREW - M10 X 1.50 X 35	3
16	MM0713	FLAT WASHER - M10 (HARDENED)	9
17	EC6553	STEP	1
18	MM0064	CAPSCREW - M10 X 1.50 X 45	4
19	EB2102	BAR	2
20	MM0471	LOCKWASHER - M10	16
21	MM0178	NUT - M10 X 1.50	3
22	EB2104	STRAP, MOUNTING - R.H.	1
23	EB2105	STRAP, MOUNTING - L.H.	1
24	MM0047	CAPSCREW - M10 X 1.50 X 30	6
25	EB2899	WASHER	2
26	EJ8801	LINK, CONNECTOR	2
27	PC1253	MIRROR ASSEMBLY - L.H.	1
27	XA2124	CHANNEL, RETAINING	1
27	XA2123	BACK, MIRROR	1
27	XA2125	GLASS, MIRROR	1
27	XA2127	NUT - 1/4" - 20NC	2
27	XA2126	CAPSCREW - 1/4" - 20NC X 3/4"	2
27	VN9772	LOCKWASHER - 1/4"	2
28		LADDER ASSM - L.H. (SEE FIG 55050)	1	55050
29	MM0010	CAPSCREW - M12 X 1.75 X 25	3
30	MM0462	FLAT WASHER - M12	6
30	C1549	FLAT WASHER - 1/2"	3
31	MM0472	LOCKWASHER - M12	6
32	MM0032	CAPSCREW - M12 X 1.75 X 30	2
33	MM0462	FLAT WASHER - M12	2
34	D104556	BUMPER	1
35	EC7588	BRACKET	1
36	EC7589	PLATE	1
37	MM0031	CAPSCREW - M20 X 2.50 X 45	4
38	MM0707	FLAT WASHER - M20 (HARDENED)	4
39	VN9780	FLAT WASHER - 9/16"	1
40	TR6643	NUT - 1/2" - 13NC	1
41	EG9340	HANDRAIL	1
42	TD0791	CAPSCREW - 3/8" - 16NC X 1 1/4"	4
43	WA4726	FLAT WASHER - 3/8"	4
44	TC1233	NUT - 3/8" - 16NC	4
45	MM0608	CAPSCREW - M10 X 1.50 X 40	3
46	EG6836	HANDRAIL	1
47	EG9341	HANDRAIL	1
48	EG8984	MOUNT, MIRROR	1
49		(NOT USED THIS APPLICATION)	-1
50	MM0617	CAPSCREW - M12 X 1.75 X 25	22
51	MM0714	FLAT WASHER - M12	22
52	MM0472	LOCKWASHER - M12	22
NS\|60		NOTE: NS = NOT SHOWN	-1
NS\|61	EC1826	DECK, CENTER REAR - L.H.	1
NS\|62	MM0075	CAPSCREW - M20 X 2.50 X 60	2
NS\|63	EC7594	FLAT WASHER - M20 (HARDENED)	4
NS\|64	MM0697	LOCKNUT - M20 X 2.50	4
NS\|65	MM0085	CAPSCREW - M20 X 2.50 X 70	2
