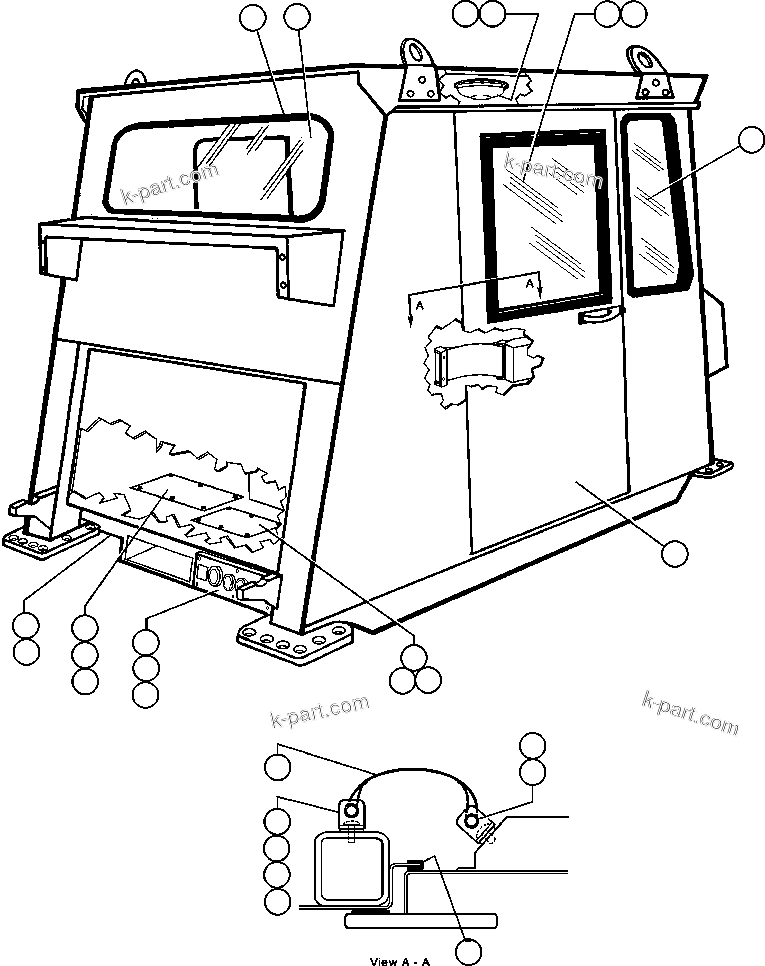

CAB ASSM - 1 (SM2950) | AFE47-Q 730E S/N 32691 ROSSING URANIUM

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE47-Q 730E S/N 32691 ROSSING URANIUM

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	SM2031	GLASS, REAR	1
?	SM2041	CHANNEL, RUBBER	1
?	SM2240	LIGHT, DOME	1
?	VZ1912	BULB, 24 VOLT	1
?	SM2879	GLASS, FRONT - R.H.	1
?	SM2749	DOOR ASSM - R.H. (SEE FIG 55240)	1	55240
?	PB8734	WINDOW ASSM	1
?	SM2265	GLASS	1
?	SM2839	PLATE, CONNECTOR (SEE FIG 55257)	1	55257
?	MM0027	CAPSCREW - M6 X 1.00 X 25	8
?	MM0469	LOCKWASHER - M6	8
?		(NOT USED THIS APPLICATION)	-1
?	MM0036	CAPSCREW - M10 X 1.50 X 20	12
?	MM0471	LOCKWASHER - M10	12
?	SM2189	PLATE, ACCESS - L.H. FLOOR	1
?	SM0991	PLATE, FRONT ACCESS - BRAKE & STEERING PIPING	1
?	SM0992	PLATE, REAR ACCESS - BRAKE & STEERING PIPING	1
?	MM0595	CAPSCREW - M8 X 1.25 X 30	14
?	MM0470	LOCKWASHER - M8	14
?	SM2167	STRAP, DOOR CHECK	2
?	SM2165	BRACKET, DOOR STRAP	4
?	MM0364	MACHINE SCREW - M8 X 1.75 X 20	8
?	SM2168	BOLT, PLAIN DRILLED	4
?	SM2322	CLIP, HAIR PIN	4
?	SM2582	SEAL, INNER DOOR	2
?		NOTE: NS = NOT SHOWN	-1
?	WB2418	DECAL, NOISE STATEMENT (1)	1
?	WB2419	DECAL, PRESSURE & CIRCULATION (1)	1
?		NOTE: (1) LOCATED R.H. FRONT OF CAB.	-1
