AFE47-FM 730E S/N A30531 - A30534 RUSSIAN COPPER COMPANY (RMK)

1 2 3 28 4 29 27 5 26 6 25 7 30 24 8 9 23 31 10 22 11 32 12 33 21 13 32 20 14 15 19 16 17 34 18

#	Part Number	Partname	Quantity
1	VE8070	COLLAR	2
2	BF2596	NUT	2
3	BF2594	PLUNGER	2
4		SEAL, WIPER (2)/(4)	2
5	VE8533	SCREW	1
6	BF2595	PACKING (4)	6
7	BF2598	RING, GLYD (4)	2
8		SPRING, PLUNGER RETURN (3)	2
9	BF2597	SEAT, SPRING	2
10	BF1862	SPOOL (1)	1
11		SLEEVE (1)	2
12		SPRING, SPOOL (3)	2
13		PLUNGER (1)	1
14		SEAL (2)/(4)	2
15		PACKING (2)/(4)	1
16	VE9418	PLUG	1
17	BF2590	WASHER	4
18		BOLT	4
19	VE9421	RETAINER, SLEEVE	1
20	BF2589	BODY, DUAL VALVE	1
21		PLUNGER (1)	1
22	EF5752	SPOOL, REGULATING (1)	1
23	VE8080	SPRING, REGULATOR (3)	2
24	BF2599	SPRING, REGULATOR (3)	2
25	BF2593	SEAT, STAGING	2
26	BF2592	PACKING (4)	2
27	BF2591	STUD	2
28		RING, BACKUP (2)/(4)	2
29		SEAL (2)/(4)	2
30		RING, BACKUP (2)/(4)	2
31	WA0019	O-RING (2)/(4)	2
32		RING, BACKUP (2)/(4)	4
33		SEAL (2)/(4)	2
34	EF3449	PLUG, ORIFICE - .045	1
NS\|35	BF1859	NOTE: (1) INCLUDED IN BF1859 SPOOL/SLEEVE KIT.	-1
NS\|36	BF1861	(2) INCLUDED IN BF1861 SEAL KIT.	-1
NS\|37	BF4645	(3) INCLUDED IN BF4645 SPRING KIT.	-1
NS\|38	BF4335	(4) INCLUDED IN BF4335 SEAL KIT.	-1

Komatsu AFE47-FM 730E S/N A30531 - A30534 RUSSIAN COPPER COMPANY (RMK) parts catalog PDF

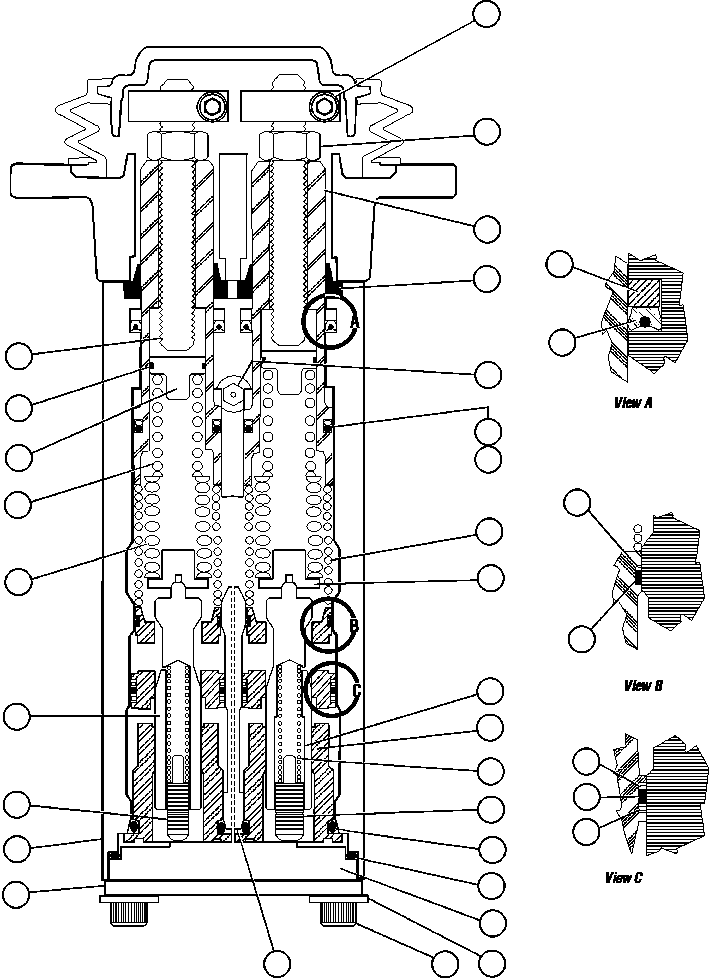

BRAKE VALVE SUB-ASSEMBLY - 1 (BF2463) (55083) in AFE47-FM 730E S/N A30531 - A30534 RUSSIAN COPPER COMPANY (RMK). Diagram image and parts list.
