AFE47-FP 730E S/N A30541 - A30545 & A30550 - A30551 DARMA HENWA

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	VE8652	BLOWER ASSEMBLY	1
?		HOUSING, BLOWER (1)	1
?	VE7951	WHEEL, BLOWER	2
?		PLATE, COVER (1)	1
?		VENTURI (1)	2
?	VE7950	MOTOR - 24V	1
?		MOUNT, MOTOR (1)	2
?	BF5260	CONVERTER	1
?	BF5257	ACTUATOR, MOTOR	2
?	BF5266	SCREW - M4 X 20	6
?	BF5265	SPACER, NYLON	6
?	BF5254	DOOR, FLAPPER (DEFROST)	1
?	BF5267	BUSHING, SNAP - 3/16"	2
?		FOAM, OPEN CELL (1)	1
?	BF4816	VALVE, HEATER	1
?	BF4170	GROMMET	1
?	XA2219	CASING	1
?	XA2227	GASKET - 1/16" X 1/2"	1
?	BF5252	HOLDER, INTERNAL FILTER	1
?	BF5467	FILTER, AIR	1
?	BF5268	KNOB	2
?	XA2242	HOLDER, EXTERNAL FILTER	1
?	XA2221	INSULATION, FOAM	1
?	XA2226	NUT, CAP	7
?	XA2222	FLAT WASHER - M5	7
?	XA2220	COVER	1
?	BF2721	LOUVER	3
?	PB8320	ADAPTER	3
?	XA2231	FOAM	1
?	XA2224	PLATE, COIL	1
?	VE8650	COIL, EVAPORATOR	1
?	BF2733	O-RING - #8	2
?	BF2732	VALVE, BLOCK	1
?	BF4218	KNOB	2
?	BF2729	SWITCH, TOGGLE (3 POSITION)	1
?	XA2229	OVERLAY	1
?	XA2228	PLATE, CONTROL	1
?	BF4168	POTENTIOMETER	1
?	BF2722	BLOCK, JUNCTION	1
?	BF5256	THERMOSTAT	1
?	BF2734	HOSE, PVC - 1/4" O.D.	1
?	BF2723	SWITCH, BLOWER	1
?	BF2738	SCREW, PAN - M6 X 1.00	4
?	BF5645	DOOR, FLAPPER (DISCHARGE)	1
?	BF2728	SWITCH, TOGGLE (2 POSITION)	2
?	BF5642	BRACKET, FLAPPER DOOR	1
?	SM2516	COIL, HEATER	1
?	XA2064	RELAY - 12V	5
?	BF2731	BREAKER, CIRCUIT	1
?	BF2725	RESISTOR - 12V	1
?	BF2726	RESISTOR - 24V	1
?	BF4166	RETAINER, BLOWER	1
?		NOTE: NS = NOT SHOWN	-1
?	XA2230	HARNESS, WIRING	1
?		NOTE: (1) NOT SERVICED SEPARATELY.	-1

Komatsu AFE47-FP 730E S/N A30541 - A30545 & A30550 - A30551 DARMA HENWA parts catalog PDF

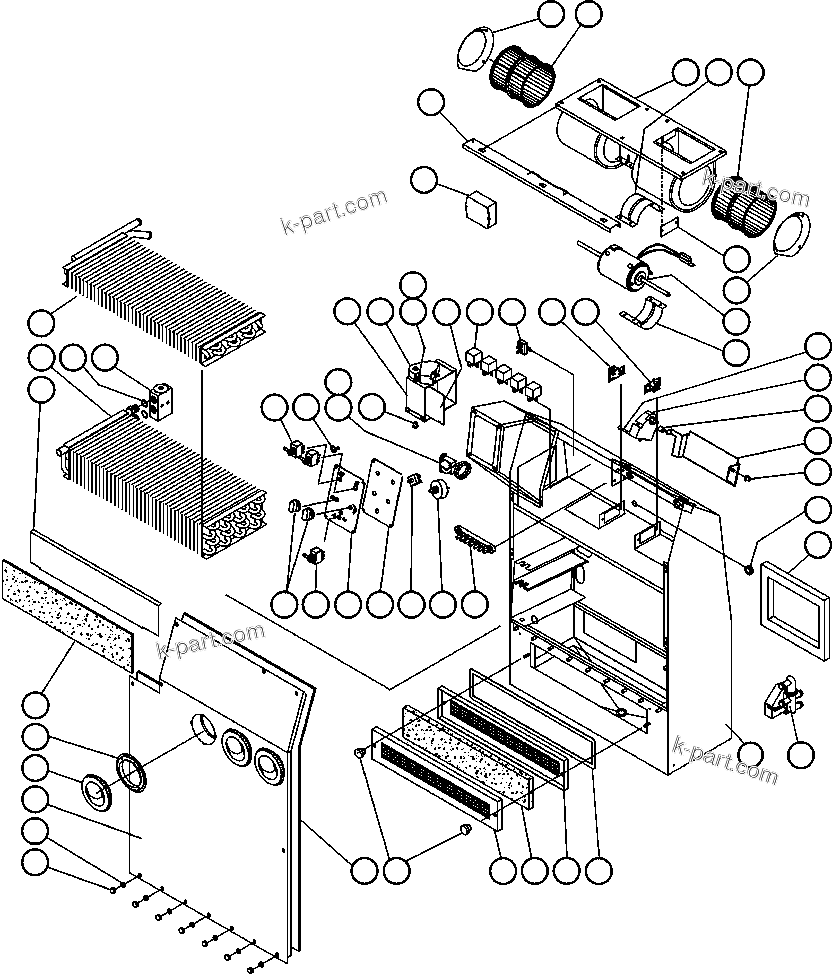

HEATER/AIR CONDITIONER ASSEMBLY (PC1066) (55554) in AFE47-FP 730E S/N A30541 - A30545 & A30550 - A30551 DARMA HENWA. Diagram image and parts list.
