AFE47-FQ 730E S/N A30546 - A30549 ROSSING URANIUM

1 8 7 6 1 4 3 2 8 7 6 5 6 7 8 10 9 9 10 11 45 46 30 44 11 24 6 13 15 3 2 12 18 17 16 27 26 25 11 29 28 47 6 7 8 10 14 6 7 8 10 14 34 35 16 17 18 2 3 15 20 31 18 33 32 19 20 18 15 41 35 36 3 2 20 21 6 37 39 38 40 23 22 42 43

#	Part Number	Partname	Quantity
1	TH5599	ELBOW, RUBBER	2
2	MM0461	FLAT WASHER - M10	27
3	MM0178	NUT - M10 X 1.50	15
4	MM0042	CAPSCREW - M10 X 1.50 X 25	12
5	WA0720	FLAT WASHER - 3/8"	28
6	C0312	LOCKWASHER - 3/8"	34
7	C1521	NUT - 3/8" - 16NC	30
8	C1602	CAPSCREW - 3/8" - 16NC X 1"	30
9	EL6302	SUPPORT	2
10	TY0176	U-CLAMP	6
11	WA1066	CLAMP, T-BOLT	9
12	EL8152	TUBE, AIR	1
13	WA1074	CLAMP, T-BOLT	1
14	KB5044	STOP, AXLE	2
15	WB3092	CLAMP, CUSHION - 7/8"	3
16	WB3096	CLAMP, CUSHION - 1 1/4"	2
17	MM0047	CAPSCREW - M10 X 1.50 X 30	2
18	MM0471	LOCKWASHER - M10	5
19	HA8245	HOSE	1
20	HA7509	HOSE	1
21	VG9096	O-RING	1
22	TF8077	CLAMP, SPLIT FLANGE - 1"	2
23	C1604	CAPSCREW - 3/8" - 16NC X 1 1/2"	4
24	EG4616	GUARD	1
25	C1523	NUT - 1/2" - 13NC	4
26	C1614	CAPSCREW - 1/2" - 13NC X 1 1/2"	4
27	TZ4225	BRACKET, CHANNEL	1
28	WA0360	FLAT WASHER - 1/2"	8
29	C1540	LOCKWASHER - 1/2"	4
30	C1603	CAPSCREW - 3/8" - 16NC X 1 1/4"	4
31	MM0401	CAPSCREW - M8 X 1.25 X 90	2
32	MM0703	FLAT WASHER - M8	2
33	MM0718	NUT - M8 X 1.25	2
34	WB0516	FITTING, 37 DEG FLARE, 90 DEG ELBOW	1
35	VZ1061	ADAPTER	1
36	WB0601	FITTING, 37 DEG FLARE, STRAIGHT ADAPTER	1
37	HA7556	HOSE	1
38	EG2626	PLATE, BENT	1
39	ED6166	MANIFOLD	1
40	TV5648	HOSE	1
41	WB0542	FITTING, 37 DEG FLARE, 45 DEG ELBOW	1
42	EF8352	FLANGE, ADAPTER - 3"	1
43	WA0237	O-RING	1
44	TW2407	PLATE, LOCKING	4
45	TH7204	ELBOW	4
46	EL8151	TUBE	2
47	WA1064	CLAMP, T-BOLT	1

Komatsu AFE47-FQ 730E S/N A30546 - A30549 ROSSING URANIUM parts catalog PDF

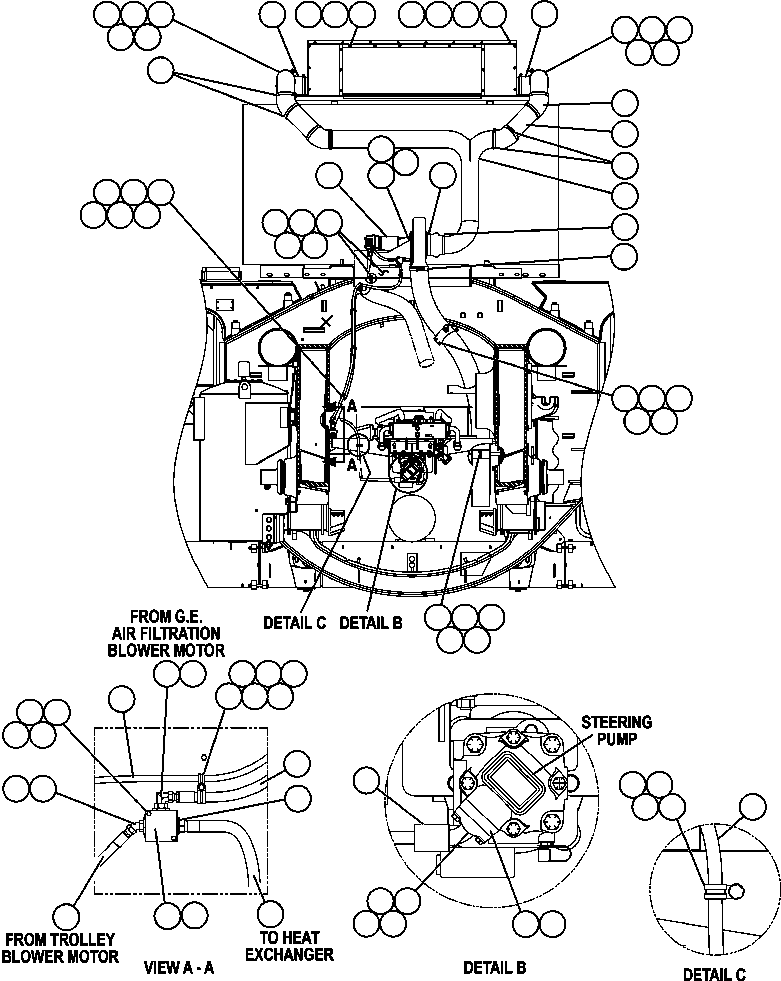

AIR INTAKE FILTRATION INSTALLATION ( 1/3) (55748) in AFE47-FQ 730E S/N A30546 - A30549 ROSSING URANIUM. Diagram image and parts list.
