AFE47-FQ 730E S/N A30546 - A30549 ROSSING URANIUM

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	BF3878	SCREW	4
?	BF3879	COVER, INLET	1
?	BF3877	O-RING (1)	1
?	BF3876	RING, RETAINING	1
?	BF3875	CARRIER, BEARING	1
?	BF3874	RING, BACKUP (1)/(2)	2
?	BF4670	O-RING (1)/(2)	2
?	BF3872	O-RING (1)/(2)	2
?	BF3871	RING, BACKUP (1)/(2)	2
?		CARTRIDGE (2)/(5)	1
?	BF3880	SCREW	4
?	BF3881	HOUSING	1
?	BF3155	RING, BACKUP (1)/(3)	2
?	BF4670	O-RING (1)/(3)	2
?	BF3152	RING, BACKUP (1)/(3)	2
?	BF3154	O-RING (1)/(3)	2
?		CARTRIDGE (3)/(5)	1
?	VS0616	RING, LOCK	1
?	SP1068	RING, RETAINING	1
?	C9809	BEARING, BALL	1
?	BF4671	SHAFT	1
?	BF3149	O-RING (1)	1
?	BF2816	BODY, OUTLET	1
?	VJ9192	SEAL, OIL (1)	2
?	BF3150	RING, RETAINING (1)/(4)	2
?	BF3151	O-RING (1)	1
?	BF3158	FLANGE (4)	1
?	BF3159	SCREW (4)	4
?	BF4669	NOTE: (1) INCLUDED IN BF4669 SEAL KIT.	-1
?	BF3870	(2) INCLUDED IN BF3870 CARTRIDGE KIT.	-1
?	BF2820	(3) INCLUDED IN BF2820 CARTRIDGE KIT.	-1
?	BF3158	(4) INCLUDED IN BF3158 FLANGE KIT.	-1
?		(5) NOT SERVICED SEPARATELY.	-1

Komatsu AFE47-FQ 730E S/N A30546 - A30549 ROSSING URANIUM parts catalog PDF

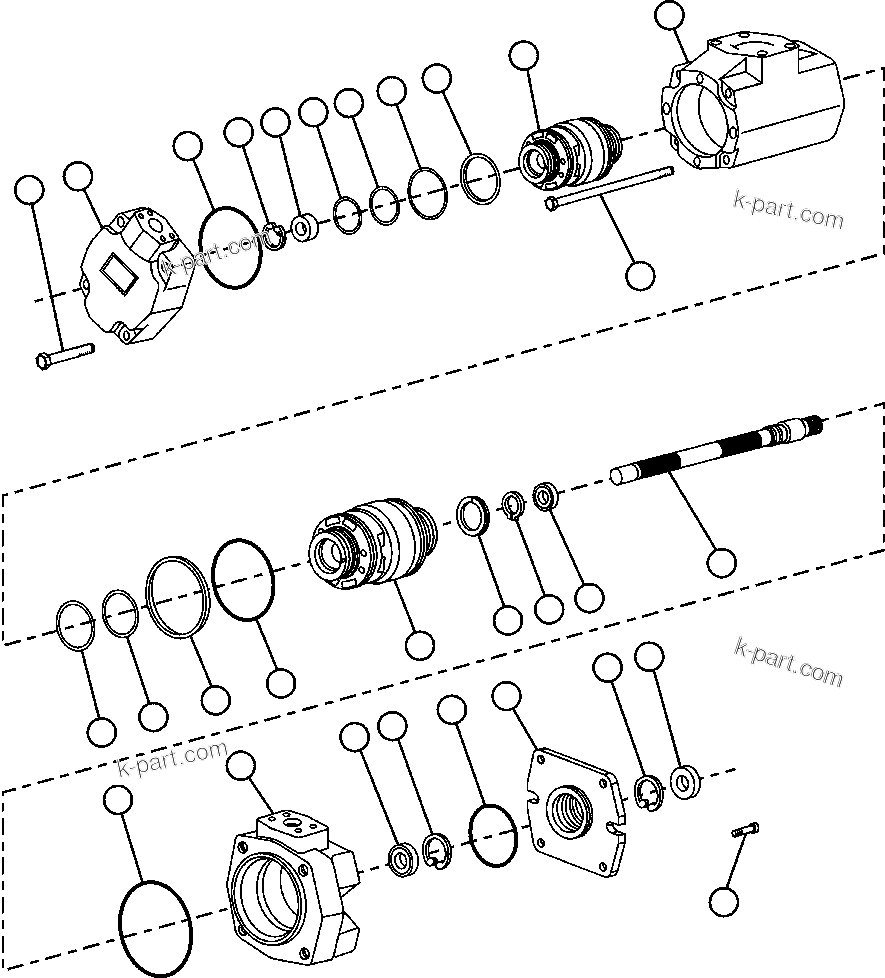

STEERING & BRAKE PUMP ASSEMBLY (PC0094) (55444) in AFE47-FQ 730E S/N A30546 - A30549 ROSSING URANIUM. Diagram image and parts list.
