AFE47-FQ 730E S/N A30546 - A30549 ROSSING URANIUM

1 2 3 4 8 7 6 9 5 10 5 11 5 16 5 23 5 24 5 17 5 18 5 25 5 12 5 19 5 20 26 5 27 5 5 5 13 12 5 12 5 12 5 21 5 14 5 28 5 35 15 5 22 5 29 5 36 5 42 5 5 41 5 5 5 12 34 12 5 12 5 5 40 5 33 5 5 39 32 5 38 5 37 5 5 31 30

#	Part Number	Partname	Quantity
1	SM2712	PLATE, WARNING LIGHT	1
2	SM2713	LEXAN OVERLAY, WARNING LIGHTS	1
3	PB6972	SWITCH, ROCKER (HAZARD LIGHTS)	1
4	PB9723	SWITCH, ROCKER (LAMP TEST)	1
5	VL6234	BULB	40
5	SM4443	FLASHER ASSEMBLY - CLEAR LENS	40
6	EJ9512	SOCKET	1
7	EH9352	SOCKET	1
8	EJ2141	HARNESS, WARNING LIGHT	1
9	SM4473	DECAL, CYLINDER OIL TEMPERATURE	1
10	SM5083	DECAL, CYLINDER OIL LEVEL	1
11	SM5052	DECAL, PARKING BRAKE	1
12	SM4315	DECAL, NOT USED	7
13	SM5073	DECAL, SERVICE ENGINE	1
14	SM5087	DECAL, DIESEL POWER	1
15	SM5091	DECAL, MAXIMUM SPEED	1
16	SM5065	DECAL, STEERING SYSTEM PRESSURE	1
17	EM4202	DECAL, LOW LUBE PRESSURE	1
18	SM5056	DECAL, BRAKE	1
19	SM4470	DECAL, BACKUP LIGHTS	1
20	SM5086	DECAL, WHEEL MOTOR TEMPERATURE	1
21	SM5088	DECAL, TROLLEY READY	1
22	SM5092	DECAL, HIGH SPEED	1
23	SM5053	DECAL, ACCUMULATOR PRE-CHARGE PRESSURE	1
24	SM5089	DECAL, CIRCUIT BREAKER TRIPPED	1
25	SM5075	DECAL, BODY UP	1
26	EM4308	DECAL, 3 MINUTE ENGINE SHUT DOWN TIMER	1
27	SM5093	DECAL, BLOWER FAULT	1
28	SM5096	DECAL, ON TROLLEY	1
29	SM5094	DECAL, MEDIUM SPEED	1
30	SM4472	DECAL, NO POWER	1
31	SM5084	DECAL, CYLINDER OIL FILTER	1
32	SM5070	DECAL, RETARDER	1
33	SM5071	DECAL, RETARD SPEED CONTROL	1
34	SM5074	DECAL, SERVICE ENGINE	1
35	SM5090	DECAL, TROLLEY FAULT	1
36	SM5095	DECAL, LOW SPEED	1
37	SM5057	DECAL, BRAKE OIL PRESSURE	1
38	SM5078	DECAL, FUEL	1
39	SM5063	DECAL, ENGINE SHUTDOWN	1
40	SM5076	DECAL, CHECK ENGINE	1
41	SM5069	DECAL, LEFT LIMIT	1
42	SM5077	DECAL, RIGHT LIMIT	1
42		(NOT SOLD AS AN ASSEMBLY.	-1
42		ORDER INDIVIDUAL COMPONENTS PARTS.)	-1

Komatsu AFE47-FQ 730E S/N A30546 - A30549 ROSSING URANIUM parts catalog PDF

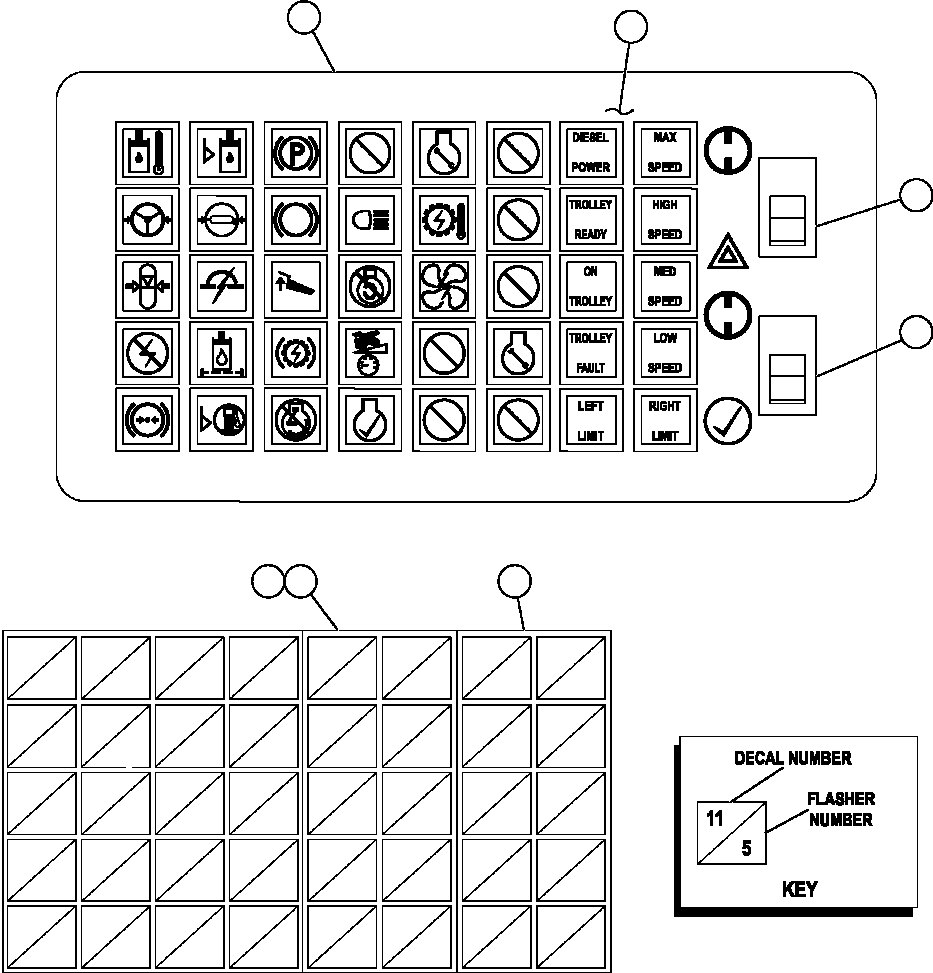

WARNING LIGHTS MODULE (EM5394) (55746) in AFE47-FQ 730E S/N A30546 - A30549 ROSSING URANIUM. Diagram image and parts list.
