REAR SUSPENSION ASSEMBLY (EJ8859) | AFE47-FH 730E S/N A30524 NITTETSU

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE47-FH 730E S/N A30524 NITTETSU

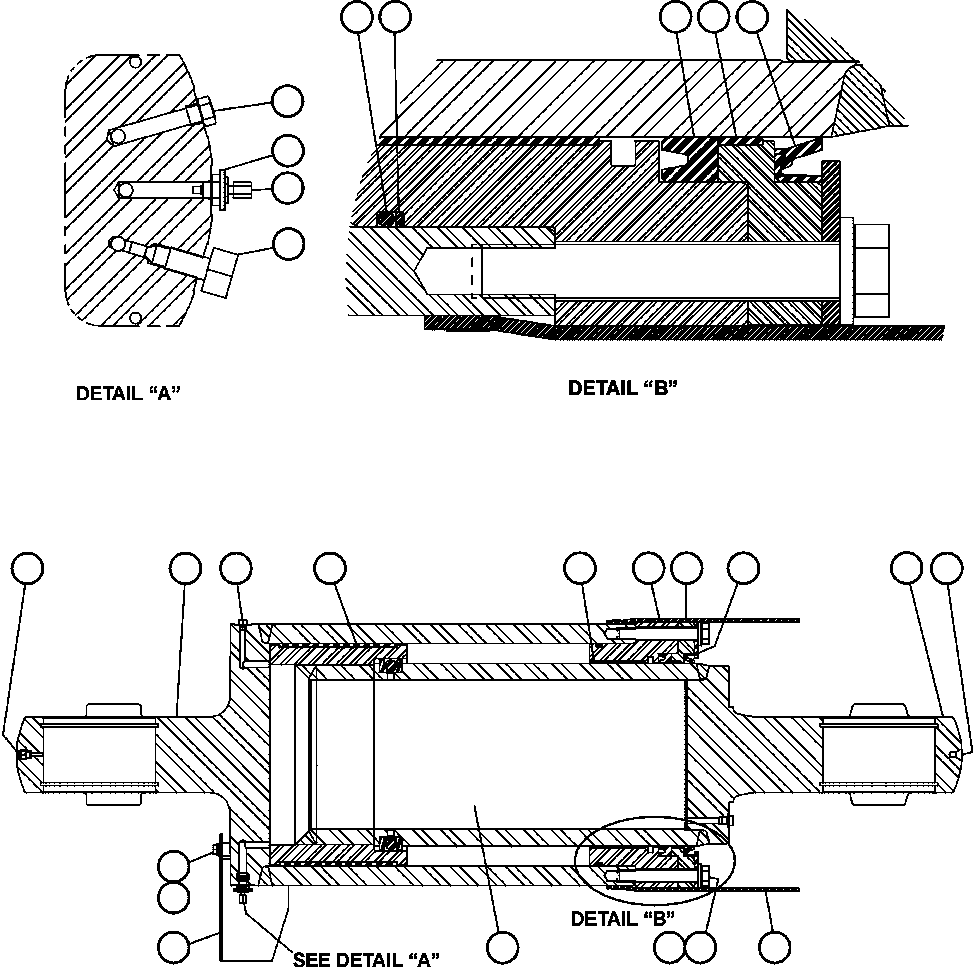

21 22 23 24 25 17 19 18 20 9 1 2 3 4 5 6 7 8 1 15 16 14 13 12 11 10

#	Part Number	Partname	Quantity
0	EJ8859	REAR SUSPENSION ASSEMBLY (1)	1
1	VM0313	PLUG, O-RING BOSS - 1/4" (2)	3
2	EJ8866	HOUSING	1
3	VM2202	PLUG, VENT (2)	1
4	562-50-32270	RING, WEAR (2)	1
5	581-50-11180	BUSHING (2)	1
6	562-50-36150	FLANGE	1
7	562-50-36220	RETAINER	1
8	562-50-36210	PLATE	1
9	EJ8861	PISTON	1
10	562-50-36191	SHIELD (NOT INCLUDED IN ASSEMBLY)	1
10	PC1006	CLAMP (NOT INCLUDED IN ASSEMBLY)	2
11	01011-81825	CAPSCREW	18
12	01643-31845	WASHER	18
13	VJ3911	OIL, SUSPENSION (5 GALLON CAN)	2
13	VJ5925	OIL, SUSPENSION - COLD WEATHER (5 GALLON CAN) (4)	2
13	AK3761	ADDITIVE, OIL (5 GALLON CAN)	1
14	EJ6733	COVER (2)	1
15	C1603	CAPSCREW - 3/8" - 16NC X 1 1/4" (2)	2
16	WA0720	FLAT WASHER - 3/8" (2)	2
17	VM0314	PLUG, O-RING BOSS - 3/8" (2)	1
18	PB2194	CHARGING VALVE ASSEMBLY (2)/(3)	1
18	TD7179	CORE, VALVE	1
18	TR9993	CAP, VALVE	1
18	TF1144	O-RING (VALVE BODY)	1
18	WA0052	O-RING (VALVE STEM)	1
19	VD5076	GASKET (2)/(3)	1
20	TZ8637	PLUG, SENSOR	1
21	581-50-21910	O-RING (2)	1
22	07001-05330	RING, BACKUP (2)	1
23	581-50-11290	PACKING (2)	1
24	581-50-11280	BUSHING (2)	1
25	581-50-21252	SEAL (2)	1
NS\|34		NOTE: NS = NOT SHOWN	-1
NS\|35	WA2892	PLATE, DANGER - HIGH PRESSURE CYLINDER	1
NS\|36	R1073	DRIVE SCREW - #6 - 32NC X 3/16"	8
NS\|37		NOTE: (1) NOT SERVICED AS AN ASSEMBLY. ORDER NEXT HIGHER	-1
NS\|38		LEVEL.	-1
NS\|39	AK4941	(2) INCLUDED IN AK4941 REAR SUSPENSION OVERHAUL KIT.	-1
NS\|40	RK1887	(3) INCLUDED IN RK1887 CHARGING VALVE KIT.	-1
NS\|41		(4) EJ8859 DOES NOT INCLUDE COLD WEATHER SUSPENSION	-1
NS\|42		OIL. VJ5925 MUST BE ORDERED SEPARATELY.	-1
