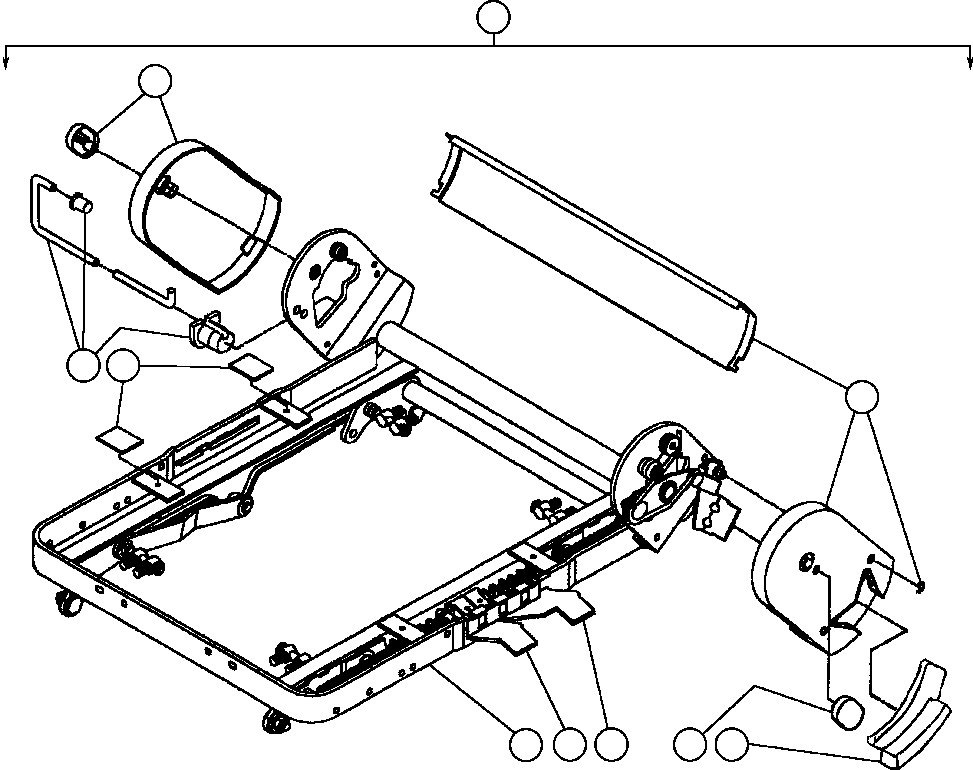

Komatsu parts book diagram for AFE47-FF 730E S/N A30518 - A30520 & A30523 DARMA HENWA: OPERATOR'S SEAT ASSEMBLY - 2 (PC2324)

1 2 8 7 2 4 3 2 5 6

	#	Part Number	Partname	Quantity	Options	Reference
	1	XA4006	SEAT FRAME ASSEMBLY	1
	2	VE4570	KIT, SIDE PLATE	1
	3	XA2245	HANDLE, REAR	1
	4	XA2246	HANDLE, FRONT	1
	5	XA2287	HANDLE, BACKREST	1
	6	XA4014	FRAME, SEAT	1
	7		PAD, FELT (1)	4
	8	VE4569	KIT, TORSION BAR	1
	NS\|9		NOTE: (1) NOT SERVICED SEPARATELY.	-1

Komatsu AFE47-FF 730E S/N A30518 - A30520 & A30523 DARMA HENWA parts catalog PDF

OPERATOR'S SEAT ASSEMBLY - 2 (PC2324) (41733) in AFE47-FF 730E S/N A30518 - A30520 & A30523 DARMA HENWA. Diagram image and parts list.
