AFE47-FE 730E S/N A30512 - A30517 ROSSING URANIUM

? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	XA4006	SEAT FRAME ASSEMBLY (SEE FOLLOWING THREE PAGES) (2)	1
?	XA2240	KIT, SEAT FRAME BOOT	1
?		BOOT, SEAT FRAME (1)	1
?	BF0518	KIT, HARDWARE	1
?	VE8862	SPACER, STATIC	1
?	VE8873	SPACER, ADAPTER PLATE	4
?	VE8871	CAPSCREW - M8 X 25	4
?	XA2239	BAR, INTERMEDIATE CONNECTING POINTS	1
?	VE8866	KIT, SEAT BELT	1
?	BF0513	KIT, SEAT BELT	1
?	BF0514	KIT, TETHER	1
?	VE8863	KIT, SLIDE	1
?	BF0526	HANDLE, SLIDE	1
?	BF0527	SLIDE - R.H.	1
?	BF0528	SLIDE - L.H.	1
?	VE8708	SPACER (HANDLE UP)	4
?	VE8870	CAPSCREW - M8 X 20 (ADAPTER PLATE & SLIDE MOUNTING)	8
?	VE8868	PLATE, ADAPTER	1
?	VE4565	KIT, BOOT	1
?		BOOT (1)	1
?	VE8747	KIT, HARDWARE	1
?	XA4007	SEAT SUSPENSION ASSEMBLY (SEE FIG 60545)	1	60545
?	VE8875	CAPSCREW - M8 X 16 (ICP BAR MOUNTING)	2
?	VE8872	LOCKWASHER - M8 (ICP BAR & SUSPENSION MOUNTING)	6
?	LA0323	CAPSCREW - (SEAT BACK TO SEAT FRAME)	2
?		NOTE: NS = NOT SHOWN	-1
?	XA2252	NUT, NYLOCK - M5	2
?	XA2253	SPACER	4
?	XA2254	WASHER, SLIDE	4
?	XA2255	CAPSCREW - M8 X 25	4
?		NOTE: (1) NOT SERVICED SEPARATELY.	-1
?		(SEE PRECEDING AND FOLLOWING PAGES FOR BALANCE OF PARTS.)	-1

Komatsu AFE47-FE 730E S/N A30512 - A30517 ROSSING URANIUM parts catalog PDF

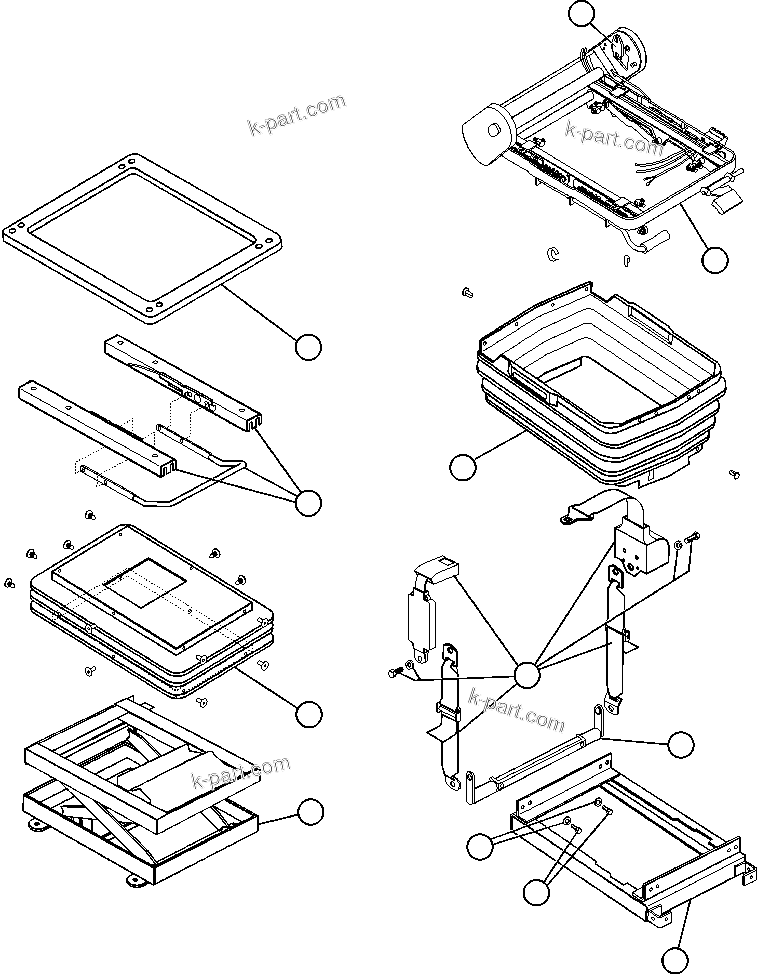

OPERATOR'S SEAT ASSEMBLY - 1 (PC2324) (50075) in AFE47-FE 730E S/N A30512 - A30517 ROSSING URANIUM. Diagram image and parts list.
