AFE47-FE 730E S/N A30512 - A30517 ROSSING URANIUM

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	EK2827	HANDRAIL FRONT	1
?	EG9340	HANDRAIL (UPPER, HORIZONTAL)	1
?	EG6836	HANDRAIL (VERTICAL)	1
?	MM0618	CAPSCREW - M12 X 1.75 X 30	22
?	MM0714	FLAT WASHER - M12	22
?	MM0694	LOCKNUT - M12 X 1.75	4
?	EG9341	HANDRAIL (MID-LEVEL, HORIZONTAL)	1
?	MM0472	LOCKWASHER - M12	22
?	EL2060	HANDRAIL - SIDE	1
?	EJ8801	LINK, CONNECTOR	4
?	EG0639	CHAIN	2
?	EG8984	MOUNT, MIRROR	1
?	PC1253	MIRROR ASSEMBLY - L.H.	1
?	XA2124	CHANNEL, RETAINING	1
?	XA2123	BACK, MIRROR	1
?	XA2125	GLASS, MIRROR	1
?	XA2127	NUT - 1/4" - 20NC	2
?	XA2126	CAPSCREW - 1/4" - 20NC X 3/4"	2
?	VN9772	LOCKWASHER - 1/4"	2
?	MM0608	CAPSCREW - M10 X 1.50 X 40	3
?	MM0461	FLAT WASHER - M10	9
?	MM0693	LOCKNUT - M10 X 1.50	3
?	MM0621	CAPSCREW - M12 X 1.75 X 45	2
?	MM0714	FLAT WASHER - M12	2
?	MM0720	NUT - M12 X 1.75	2
?	MM0620	CAPSCREW - M12 X 1.75 X 40	4

Komatsu AFE47-FE 730E S/N A30512 - A30517 ROSSING URANIUM parts catalog PDF

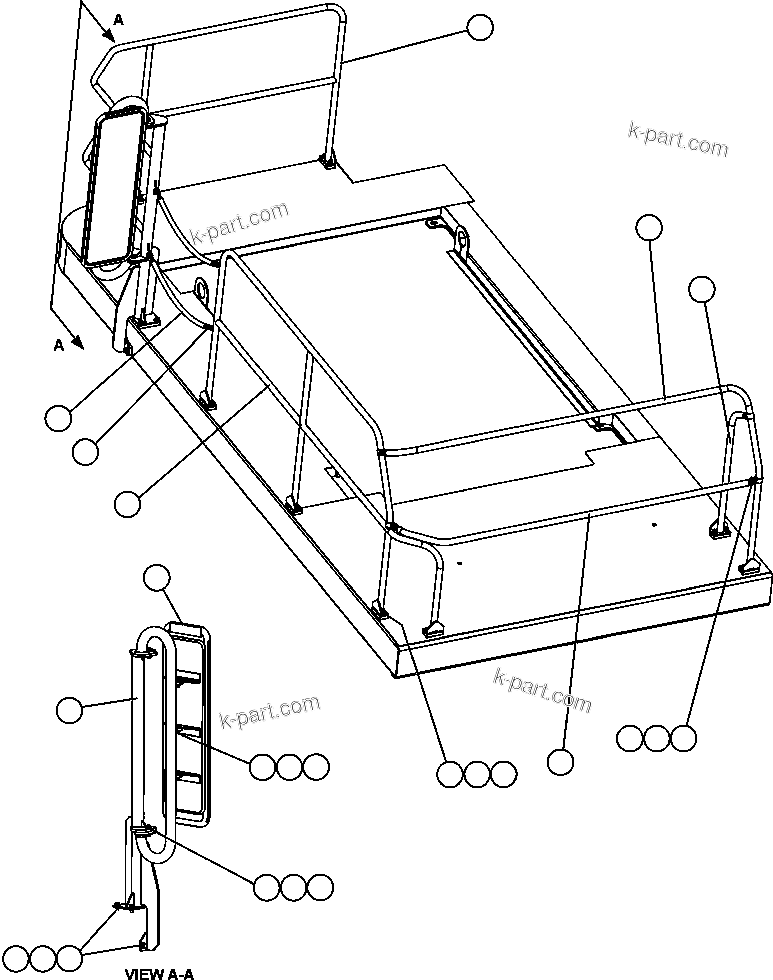

L.H. DECK HANDRAILS & MIRROR (55841) in AFE47-FE 730E S/N A30512 - A30517 ROSSING URANIUM. Diagram image and parts list.
