AFE47-FE 730E S/N A30512 - A30517 ROSSING URANIUM

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	VP5644	CLAMP, T-BOLT	4
?	TW4130	HOSE	2
?	WB0982	PLUG, PIPE	1
?	EF5926	TUBE	1
?	R2028	PLUG, PIPE - 3/4"	3
?	EC3356	ELBOW	1
?	E2579	NIPPLE, CLOSE	1
?	SF9435	PLUG, PIPE (MAGNETIC)	1
?	TF6957	COCK, DRAIN	1
?	C1603	CAPSCREW - 3/8" - 16NC X 1 1/4"	4
?	C0312	LOCKWASHER - 3/8"	4
?	TZ4384	GASKET	1
?	C5770	PLUG, PIPE - 3/8"	1
?	WA0361	FLAT WASHER - 5/8"	8
?	C1525	NUT - 5/8" - 11NC	8
?	C1633	CAPSCREW - 5/8" - 11NC X 2 3/4"	8
?	C1541	LOCKWASHER - 5/8"	8
?	C1599	CAPSCREW - 5/16" - 18NC X 1 1/2"	1
?	TV0177	FLAT WASHER - 5/16"	3
?	C1538	LOCKWASHER - 5/16"	1
?	WA1601	END, ROD	2
?	EF8702	ROD, THREADED	1
?	SF4358	JAM NUT - 5/16" - 24NF	2
?	C1639	CAPSCREW - 5/16" - 18NC X 2"	1
?	VN9752	LOCKNUT - 5/16" - 18NC (NYLON)	1
?	PB9671	CLAMP	1
?	CD9707	CLAMP, WORM DRIVE	2

Komatsu AFE47-FE 730E S/N A30512 - A30517 ROSSING URANIUM parts catalog PDF

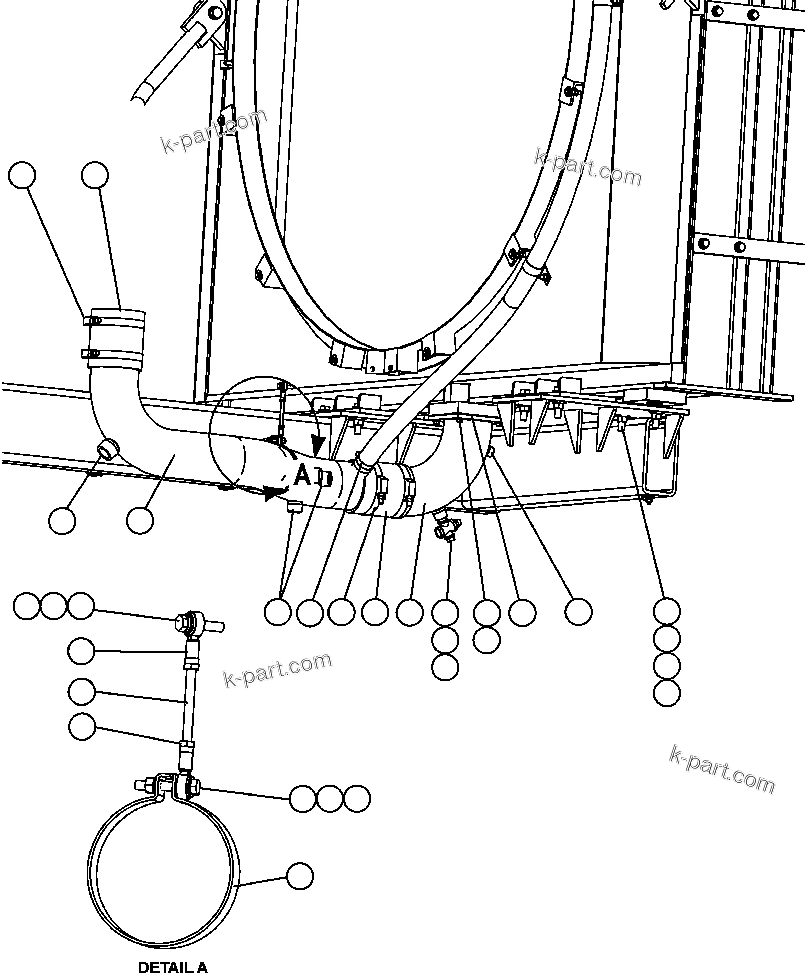

RADIATOR PIPING - 2 (55818) in AFE47-FE 730E S/N A30512 - A30517 ROSSING URANIUM. Diagram image and parts list.
