AFE47-FE 730E S/N A30512 - A30517 ROSSING URANIUM

20 21 26 25 18 19 22 23 24 28 27 17 16 15 2 1 3 4 5 10 9 8 7 6 19 13 12 11 14

#	Part Number	Partname	Quantity	Reference
1	BF0560	SHAFT (3)	1
2	BF0561	KEY (3)/(6)	1
3	BF0563	RING, SHAFT RETAINER (3)	1
4	BF0562	BEARING, FRONT DRIVESHAFT (3)	1
5	BF0551	HOUSING, MOTOR (1)	1
6	BF0564	RETAINER, SEAL (3)	1
7	BF0552	SEAL, SHAFT (1)/(4)	1
8	BF1661	BLOCK, SADDLE (8)	1
9	BF1662	PIN, ROLL (8)	2
10	BF1663	BEARING, SADDLE (8)/(9)	2
11	BF1664	SWASHBLOCK	1
12	BF0573	BEARING WITH SPACER (7)	1
13	BF0574	RING, RETAINER (7)	1
14	VE9533	PIN, ROLL (1)	2
15	BF0570	SCREW (5)/(6)	4
16	BF1667	PLATE, VALVE (5)	1
17	BF0565	GASKET (4)/(5)	1
18	BF0566	O-RING (4)/(5)	1
19	BF1666	CYLINDER, BARREL (2)	1
20	BF1665	PISTON & SHOE ASSEMBLY (2)	1
21	BF0558	SPRING (2)	1
22	BF0555	RETAINER, SHOE (2)	1
23	BF0557	BALL, FULCRUM (2)	1
24	BF0567	O-RING (4)/(10)	1
25	BF0553	PIN, DOWEL (1)	1
26	BF0568	GASKET, TOP PLATE (4)/(10)	1
27	BF0554	RING, DRIVE SHAFT BEARING RETAINER (3)	1
28	BF1676	HAND WHEEL CONTROL ASSEMBLY (SEE INDEX)	1	55317
NS\|29	BF0544	NOTE: (1) INCLUDED IN BF0544 HOUSING & PINS KIT.	-1
NS\|30	BF1669	(2) INCLUDED IN BF1669 ROTATING GROUP KIT.	-1
NS\|31	BF1670	(3) INCLUDED IN BF1670 SHAFT & BEARING KIT.	-1
NS\|32	BF1671	(4) INCLUDED IN BF1671 GASKET & SEAL KIT.	-1
NS\|33	BF1672	(5) INCLUDED IN BF1672 VALVE PLATE KIT.	-1
NS\|34	BF0549	(6) INCLUDED IN BF0549 SCREWS, KIT & TAG KIT.	-1
NS\|35	BF0550	(7) INCLUDED IN BF0550 ROTATING GROUP BEARING KIT.	-1
NS\|36	BF1673	(8) INCLUDED IN BF1673 SADDLE KIT.	-1
NS\|37	BF1674	(9) INCLUDED IN SADDLE BEARING KIT.	-1
NS\|38		(10) NOT INCLUDED IN ASSEMBLY. SEE BF1676	-1
NS\|39		HAND WHEEL CONTROL ASSEMBLY.	-1

Komatsu AFE47-FE 730E S/N A30512 - A30517 ROSSING URANIUM parts catalog PDF

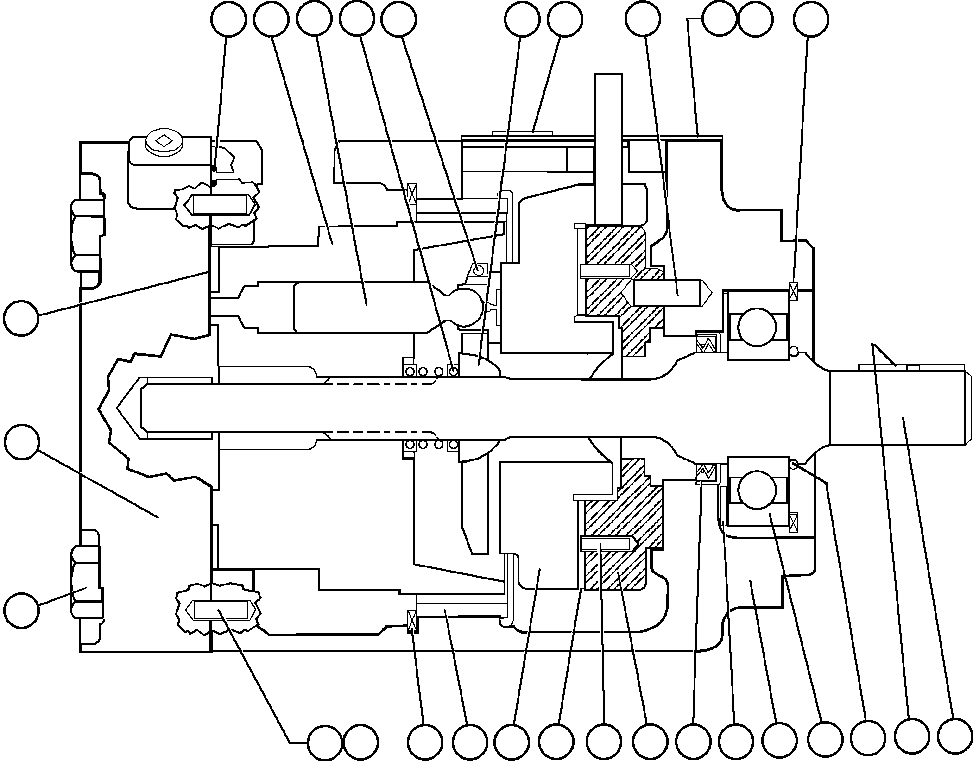

HYDRAULIC MOTOR ASSEMBLY (PB9424) (55316) in AFE47-FE 730E S/N A30512 - A30517 ROSSING URANIUM. Diagram image and parts list.
