AFE48-AU 930E-2 S/N A30098 & A30100 BARRICK

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	PB6780	ACCUMULATOR - 2.5 GALLON	1
?	TV9940	GUARD, VALVE	1
?	VE3881	STEM, VALVE	1
?	VE3880	DYNASEAL (2)	1
?	VS7979	NUT	1
?	VE5918	BLADDER & GAS VALVE ASSEMBLY (2)	1
?	VE3897	RING, ANTI-EXTRUSION (1)	1
?	VE3893	SPRING	1
?	VE3896	PLUG, BLEED (1)	1
?	BF2454	O-RING (1)	1
?	VE3895	NUT, STOP	1
?	VE3883	PLUG, MACHINED	1
?	VE3894	PISTON	1
?	VE3892	POPPET	1
?	VS7976	SPACER (1)	1
?	VS7977	LOCKNUT (1)	1
?	VE3900	RING, BACKUP (2)	1
?	VE3899	O-RING (2)	1
?	VE3898	WASHER (2)	1
?	BF2455	SHELL	1
?		NOTE: (1) INCLUDED IN VE3057 PORT ASSEMBLY.	-1
?	VE3059	(2) INCLUDED IN VE3059 REPAIR KIT.	-1

Komatsu AFE48-AU 930E-2 S/N A30098 & A30100 BARRICK parts catalog PDF

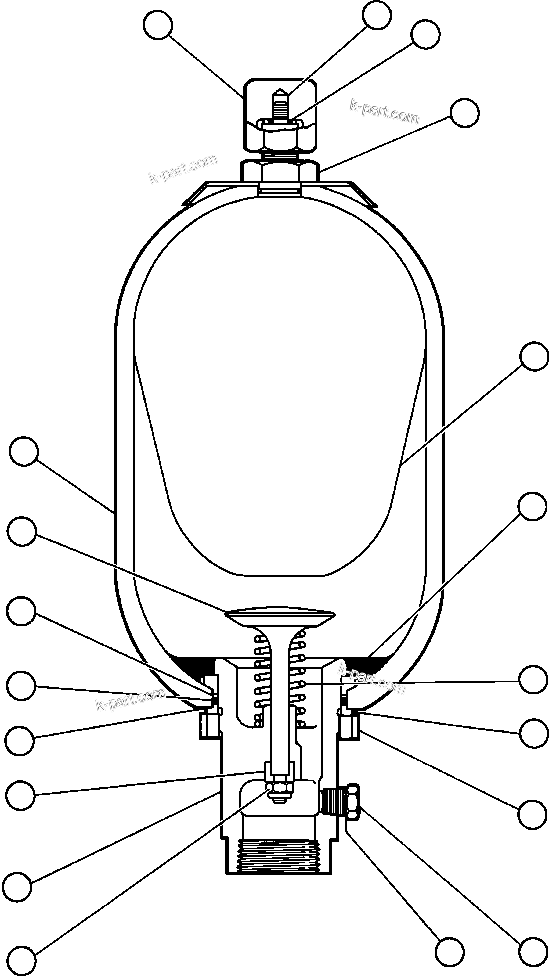

ACCUMULATOR ASSEMBLY - 1 (PB6780) (40016) in AFE48-AU 930E-2 S/N A30098 & A30100 BARRICK. Diagram image and parts list.
