AFE48-AU 930E-2 S/N A30098 & A30100 BARRICK

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	EG7740	BOX, BATTERY CONTROL	1
?	EC0891	GASKET	1
?	EC0890	PLATE, MOUNTING	1
?	MM0594	CAPSCREW - M8 X 1.25 X 25	16
?	MM0460	FLAT WASHER - M8	26
?	MM0470	LOCKWASHER - M8	18
?	PB6233	SWITCH, BATTERY DISCONNECT	3
?	VC3573	CAPSCREW - M6 X 1.00 X 25	12
?	TD1549	NUT - 1/4"	12
?	VN9773	FLAT WASHER - 1/4"	12
?	DC3584	LOCKWASHER - M6	12
?	ED7907	PLATE, BENT	1
?	MM0592	CAPSCREW - M8 X 1.25 X 16	2
?	PB8460	BREAKER, CIRCUIT	1
?	MM0373	NUT - M5	2
?	MM0379	LOCKWASHER - M5	6
?	MM0351	MACHINE SCREW - M5	2
?	PB9112	RECEPTACLE ASSEMBLY	2
?	MM0596	CAPSCREW - M8 X 1.25 X 35	8
?	EB2646	GASKET, RUBBER	1
?	MM0177	NUT - M8	8
?	PB5993	COVER ASSEMBLY	2
?	PB6977	EQUALIZER, BATTERY	1
?	DD7501	LOCKNUT - 5/16"	2
?	PC0374	RELAY, POWER	1
?	821197	LINK	1
?	ED7253	BAR, BUS - 11B1A	1
?	WB1117	CAPSCREW	1
?	PB7202	INSULATOR	5
?	MM0604	CAPSCREW - M10 X 1.50 X 20	6
?	MM0461	FLAT WASHER - M10	8
?	MM0471	LOCKWASHER - M10	8
?	SC4174	LOCKWASHER - 5/16"	20
?	TV0177	FLAT WASHER - 5/16"	24
?	ED7255	BAR, BUS - 24V	1
?	TR4731	CAPSCREW - 5/16" - 18NC X 1"	5
?	ED7257	BAR, BUS - 11ST	1
?	ED7258	BAR, BUS - 1	1
?	ED7259	BAR, BUS - 11	1
?	ED7260	BAR, BUS - 12F	1
?	S1357	JOINT, BALL	2
?	MM0605	CAPSCREW - M10 X 1.50 X 20	2
?	MM0178	NUT - M10	2
?	EG7737	HARNESS, EQUALIZER	1
?	TR9180	NUT, JAM - 5/16" - 24NF	2
?	TG2562	CLAMP	2
?	TF6924	CLAMP	7
?	TD1684	NUT - 5/16"	10
?	CH2804	CABLE, BATTERY	1
?	MM0349	MACHINE SCREW - M5 X .8 X 12	6
?	MM0459	FLAT WASHER - M6	6
?	MM0469	LOCKWASHER - M6	6
?	TG2568	CLAMP	1
?	WB2247	DECAL	2
?		NOTE: (1) EG7738 BATTERY CONTROL BOX ASSEMBLY	-1
?		NOT SERVICED AS AN ASSEMBLY - ORDER	-1
?		INDIVIDUAL COMPONENT PARTS.	-1

Komatsu AFE48-AU 930E-2 S/N A30098 & A30100 BARRICK parts catalog PDF

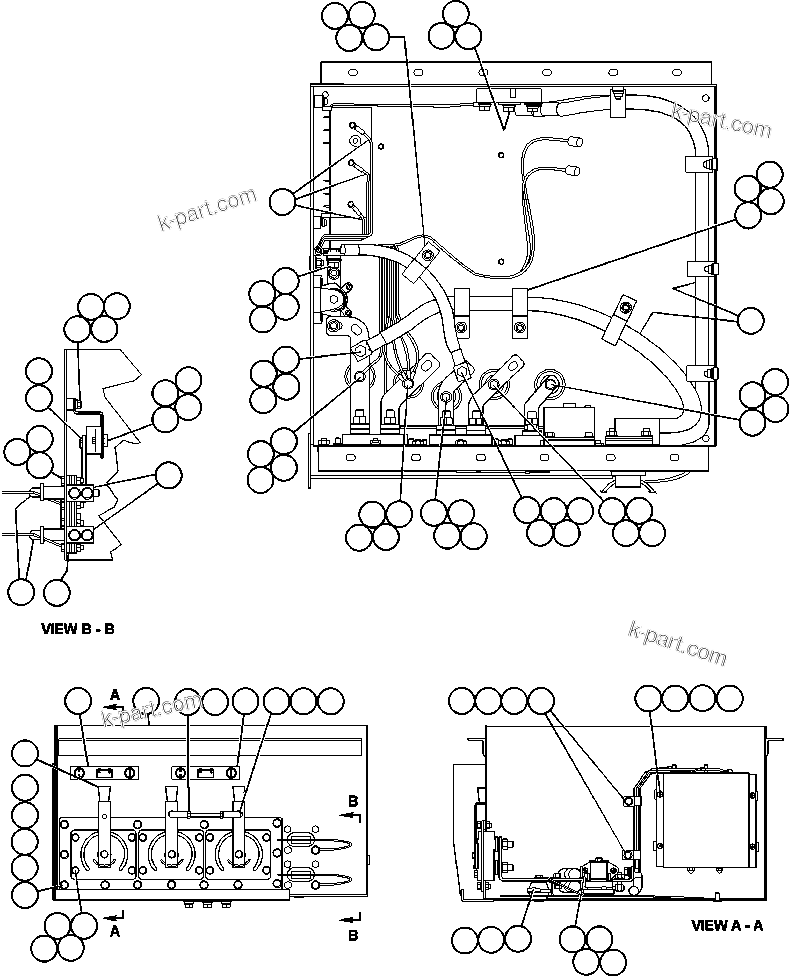

BATTERY CONTROL BOX ASSEMBLY (EG7738) (60240) in AFE48-AU 930E-2 S/N A30098 & A30100 BARRICK. Diagram image and parts list.
