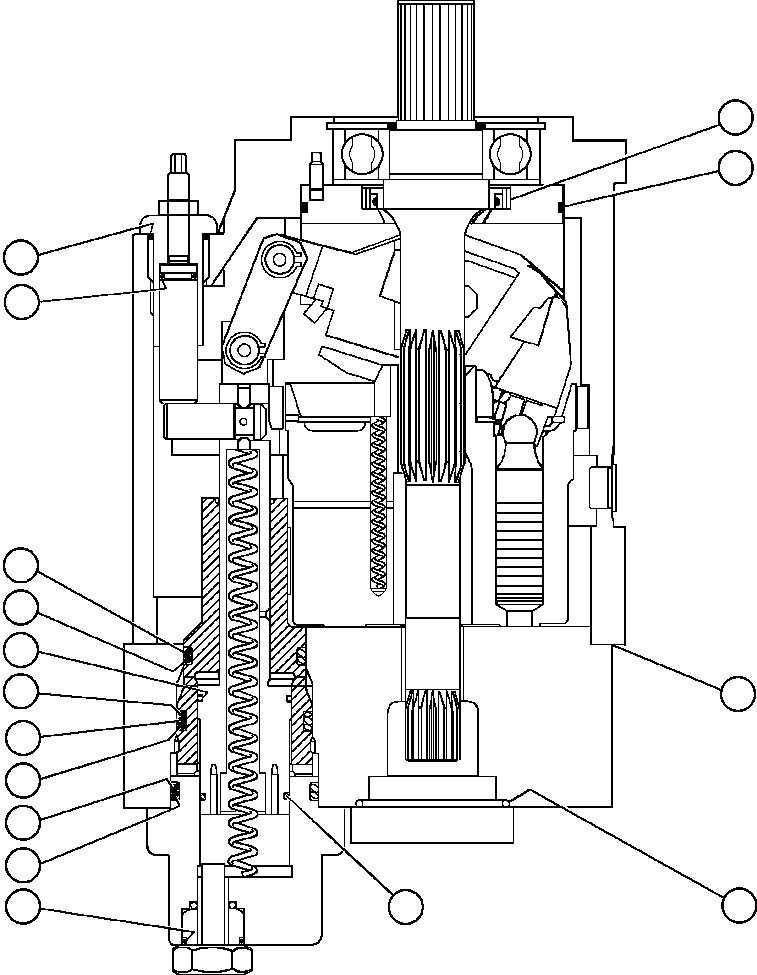

AFE48-AU 930E-2 S/N A30098 & A30100 BARRICK

11 12 13 14 15 5 4 3 2 1 8 7 6 4 10 9

#	Part Number	Partname	Quantity
1	VE9541	SEAL, O-RING (5)	1
2	BF3732	RING, BACKUP (5)	1
3	VE9590	SEAL, O-RING (5)	1
4	VE9580	RING, BACKUP (5)	2
5	VE9583	SEAL, O-RING (5)	1
6	VE9581	RING, PISTON (5)	1
7	VE9585	SEAL, O-RING (5)	1
8	VE9582	RING, BACKUP (5)	1
9	VE9598	SEAL, O-RING (4)	1
10	VE9541	SEAL, O-RING (4)	1
11	VE9532	SEAL, SHAFT (4)	1
12	VE9539	SEAL, O-RING (4)	1
13	VE9549	GASKET (2)/(3)	1
14	VE9551	O-RING (1)/(2)/(3)	1
15	VE9586	SEAL (5)	1
NS\|16	VE9618	NOTE: (1) INCLUDED IN VE9618 GASKET/SEAL KIT.	-1
NS\|17	VE9614	(2) INCLUDED IN VE9614 PUMP GASKET/SEAL KIT.	-1
NS\|18	BF1368	(3) INCLUDED IN BF1368 VALVE PLATE KIT.	-1
NS\|19	BF1369	(4) INCLUDED IN BF1369 HOUSING KIT.	-1
NS\|20	BF3727	(5) INCLUDED IN BF3727 CONTROL PISTON KIT.	-1

Komatsu AFE48-AU 930E-2 S/N A30098 & A30100 BARRICK parts catalog PDF

STEERING PUMP SEAL INSTALLATION (PB9933) (40734) in AFE48-AU 930E-2 S/N A30098 & A30100 BARRICK. Diagram image and parts list.
