AFE48-AU 930E-2 S/N A30098 & A30100 BARRICK

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	GE0519	DOOR ASSEMBLY	1
?	BF4418	MACHINE SCREW	2
?	BF3890	FLAT WASHER	2
?	GE0270	GASKET, DOOR	2
?	GE0271	GASKET, DOOR	2
?	VE3035	PYTHON - #1062	-1
?	GE0289	ASSEMBLY, COVER	1
?	GE0265	GASKET	-1
?	GE0284	COVER, REAR	1
?	GE0281	COVER, EXHAUST	4
?	GE0280	COVER, EXHAUST	1
?	GE0265	GASKET	-1
?	GE0279	COVER, EXHAUST	1
?	GE0278	COVER, EXHAUST	1
?	GE0285	COVER, EXHAUST	1
?	GE0286	COVER, EXHAUST	1
?	GE0287	COVER, EXHAUST	1
?	GE0288	COVER, EXHAUST	1
?	GE0282	COVER, EXHAUST	2
?	GE0283	COVER, EXHAUST	1
?	VE4349	CAPSCREW - 5/16" - 18NC X 7/8"	-1
?	VE5762	FLAT WASHER - 5/16"	-1
?	VE4696	LOCKWASHER - 5/16"	-1
?	BF3891	LOCKWASHER	2
?	TR4731	CAPSCREW	5

Komatsu AFE48-AU 930E-2 S/N A30098 & A30100 BARRICK parts catalog PDF

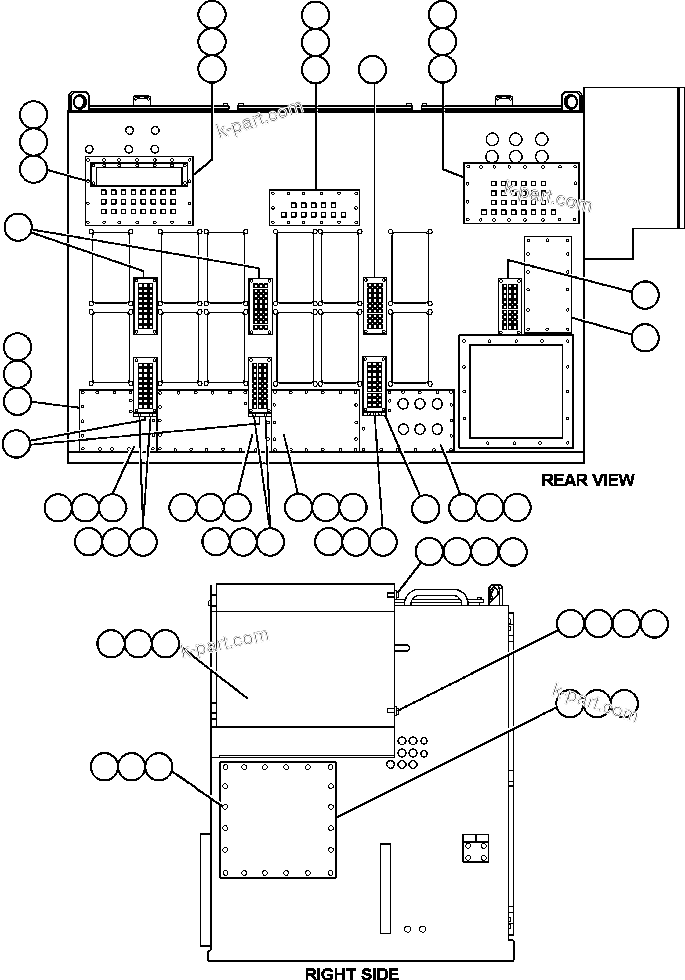

CONTROL CABINET (RIGHT SIDE & REAR VIEW) (64115) in AFE48-AU 930E-2 S/N A30098 & A30100 BARRICK. Diagram image and parts list.
