AFE48-AU 930E-2 S/N A30098 & A30100 BARRICK

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	EH6526	HOUSING	1
?	WA0362	FLAT WASHER - 3/4" (HARDENED)	12
?	VM4571	CAPSCREW - 3/4" - 10NC X 2 1/2" - G8	12
?	ED0183	BEARING, BRONZE	1
?	H2981	BALL, STEEL	2
?	EH7347	BEARING, BRONZE	1
?	VN6801	CAPSCREW - 3/4" - 10NC X 3 1/2" (SCKT HD)	24
?	TY8475	SHIELD	2
?	WA0720	FLAT WASHER - 3/8" (HARDENED)	10
?	C0312	LOCKWASHER - 3/8"	11
?	C1602	CAPSCREW - 3/8" - 16NC X 1"	12
?	TY8879	VENT, PLUG	2
?	EH7344	PISTON	1
?	VZ4269	GUARD, VALVE	1
?	PB2194	CHARGING VALVE ASSEMBLY (1)	1
?	TD7179	CORE, VALVE	1
?	TR9993	CAP	1
?	TF1144	O-RING	1
?	WA0052	O-RING	1
?	VD5076	GASKET, FLAT	1
?	ED3640	PROTECTOR	1
?	TZ8637	PLUG	1
?	TZ9093	PLUG, VENT	1
?	VF4319	PLUG, BLEEDER	1
?	WA0180	SEAL, O-RING (1)	1
?	PC0673	RING, BACKER (1)	1
?	WA2892	PLATE, WARNING	2
?	R1073	SCREW, DRIVE - #6	8
?	VJ3911	OIL, SUSPENSION (5 GAL CAN)	3
?	AK3761	ADDITIVE, OIL (5 GAL. CAN)	1
?	PC0653	SEAL, BUFFER (1)	1
?	PC0652	SEAL, DOUBLE LIP (1)	1
?	PC0654	SEAL, WIPER (1)	1
?	VM0313	PLUG, O-RING	3
?		NOTE: NS = NOT SHOWN	-1
?	WA3925	DECAL HYDRAIR II	1
?	AK4324	NOTE: (1) INCLUDED IN AK4324 SEAL KIT.	-1
?		(QUANTITIES SHOWN ARE FOR ONE SIDE ONLY)	-1

Komatsu AFE48-AU 930E-2 S/N A30098 & A30100 BARRICK parts catalog PDF

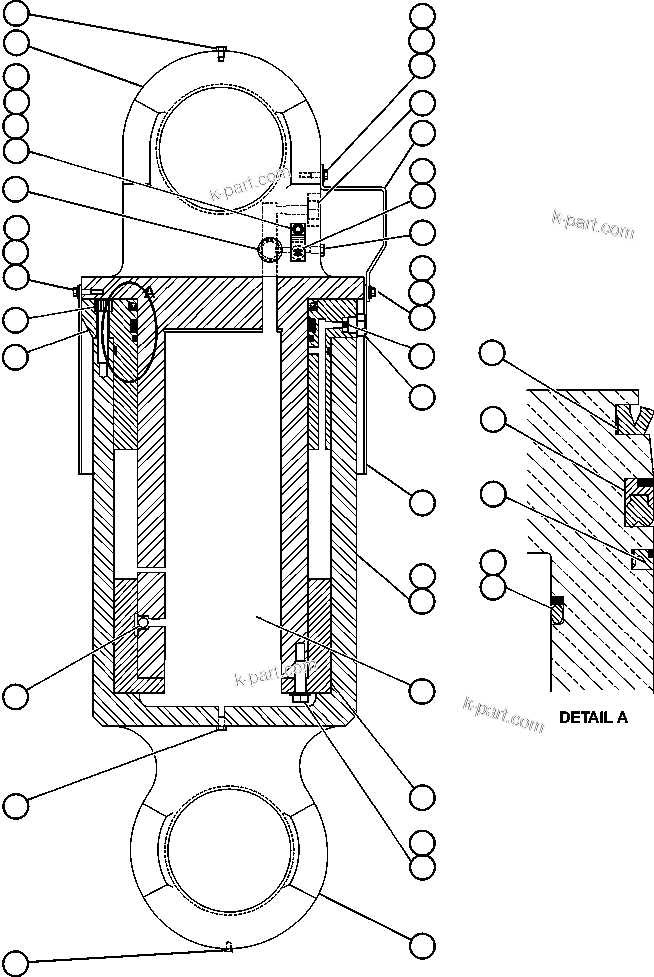

REAR SUSPENSION ASSEMBLY (EH5949) (60344) in AFE48-AU 930E-2 S/N A30098 & A30100 BARRICK. Diagram image and parts list.
