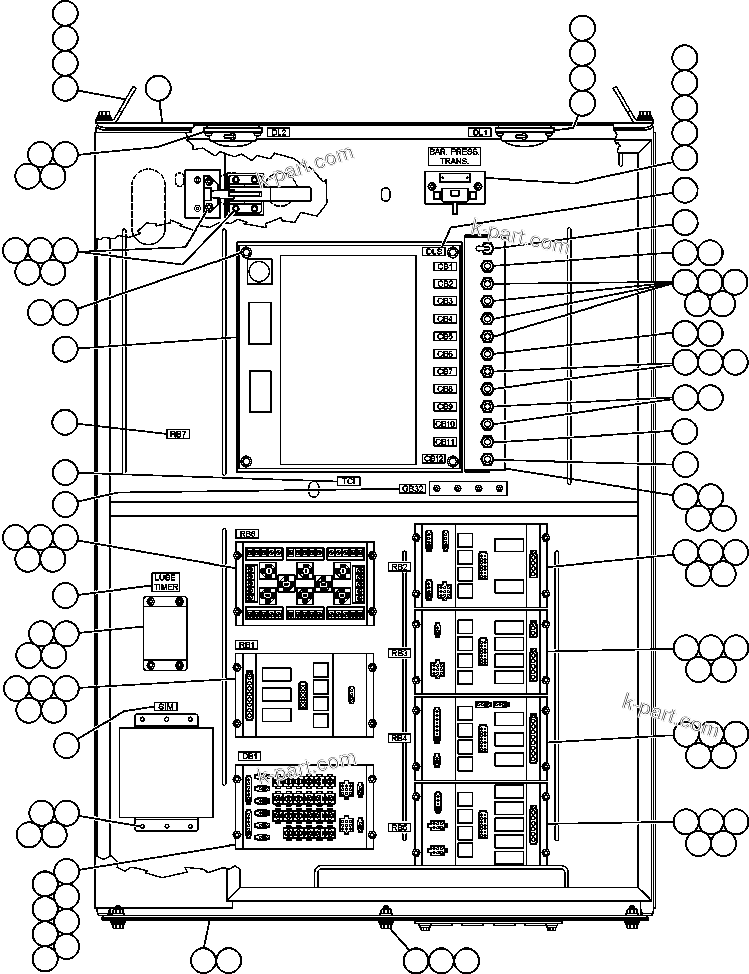

ELECTRICAL INTERFACE CABINET (4000 ENG) | AFE48-AR 930E S/N A30115 SUNCOR

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE48-AR 930E S/N A30115 SUNCOR

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	VS0035	LIGHT, DOME	3
?	VZ1912	BULB	1
?	TM9090	INSULATOR	1
?	TG1929	MACHINE SCREW - #10 X 1/2"	9
?	DC3101	LOCKWASHER - #10	9
?	EC7462	PLATE, NAME - DL1	1
?	EC7458	PLATE, NAME - DL2	1
?	PB9744	PRESSURE TRANSDUCER ASSEMBLY	1
?	MM0207	LOCKWASHER - M6	2
?	MM0459	FLAT WASHER - M6	54
?	MM0176	NUT - M6	2
?	WB2282	PLATE, NAME - PRESSURE TRANSDUCER	1
?	EG7240	BOX, INTERFACE CABINET	1
?	EF8112	EYE, LIFTING	2
?	MM0610	CAPSCREW - M10 X 1.50 X 50 (ZINC)	4
?	01643-31032	FLAT WASHER - M10	12
?	MM0471	LOCKWASHER - M10	12
?	PB1006	LATCH/KEEPER SET	2
?	MM0459	FLAT WASHER - M6	14
?	MM0469	LOCKWASHER - M6	12
?	MM0019	CAPSCREW - M6 X 1.00 X 16	8
?	MM0025	CAPSCREW - M6 X 1.00 X 20	4
?	PB9743	PANEL, TCI (SEE INDEX)	1	60107
?	VD1921	CAPSCREW - 1/4" - 20NC X 2 3/4"	4
?	TR1307	FLAT WASHER - 1/4"	4
?	SR8325	SWITCH, TOGGLE	1
?	WB2200	PLATE, NAME - DLS	1
?	PB7104	BREAKER, CIRCUIT - 20 AMP	4
?	EC8805	PLATE, NAME - CB1	1
?	EC8806	PLATE, NAME - CB2	1
?	EC8807	PLATE, NAME - CB3	1
?	EC8808	PLATE, NAME - CB4	1
?	PB6072	BREAKER, CIRCUIT - 5 AMP	1
?	EC8809	PLATE, NAME - CB5	1
?	PB6073	BREAKER, CIRCUIT - 15 AMP	1
?	EC8810	PLATE, NAME CB6	1
?	EC8811	PLATE, NAME CB7	1
?	EC8812	PLATE, NAME CB8	1
?	PB8547	BREAKER, CIRCUIT - 10 AMP	2
?	EC8802	PLATE, NAME - CB9	1
?	EC8801	PLATE, NAME - CB10	1
?	EG8379	PLATE, NAME - CB11	1
?	EG8380	PLATE, NAME - CB12	1
?	WB2304	PLATE, NAME - GB32	1
?	WB2283	PLATE, NAME - TCI	1
?	SM1947	BOARD, RELAY - PAYLOAD - RB2 (SEE FIG 60269)	1	60269
?	EC8820	PLATE, NAME - RB2	1
?	SM1951	BOARD, RELAY - STOP LIGHT - RB3 (SEE FIG 60269)	1	60269
?	EC8821	PLATE, NAME - RB3	1
?	SM5651	BOARD, RELAY - PARKING BRAKE - RB4 (SEE FIG 60269)	1	60269
?	EC8822	PLATE, NAME - RB4	1
?	SM1959	BOARD, RELAY - HEADLIGHT - RB5 (SEE FIG 60269)	1	60269
?	EC8823	PLATE, NAME - RB5	1
?	SM1963	BOARD, DIODE RESISTOR - DB1	1
?	SM3124	DIODE	23
?	EG0664	RESISTOR - 270 OHM	1
?	EG8333	RESISTOR - 20.00 OHM	1
?	EC8825	PLATE, NAME - DB1	1
?	PC0342	MODULE, INTERFACE - SPECIAL	1
?	EG8381	PLATE, NAME - SIM	1
?	SM1943	BOARD, RELAY - TURN SIGNAL - RB1 (SEE FIG 60269)	1	60269
?	EC8819	PLATE, NAME - RB1	1
?	PC0337	TIMER, LINCOLN LUBE	1
?	MM0379	LOCKWASHER - 5MM (EXTERIOR TOOTH)	52
?	MM0373	NUT - 5MM	52
?	WB2281	PLATE, NAME - LUBE TIMER	1
?	SM3001	BOARD, RELAY AUXILIARY - RB6 (SEE FIG 60269)	1	60269
?	EC8824	PLATE, NAME - RB6	1
?	WB2280	PLATE, NAME - RB7	1
?	EG7963	MOUNTING, BRACKET	1
?	EG7962	PLATE, MOUNTING	1
?	EG7968	GASKET	1
?	MM0605	CAPSCREW - M10 X 1.50 X 25	6
?		NOTE: NS = NOT SHOWN	-1
?	EG8039	STRIP, SEAL	2
?	EG8041	STRIP, SEAL	2
