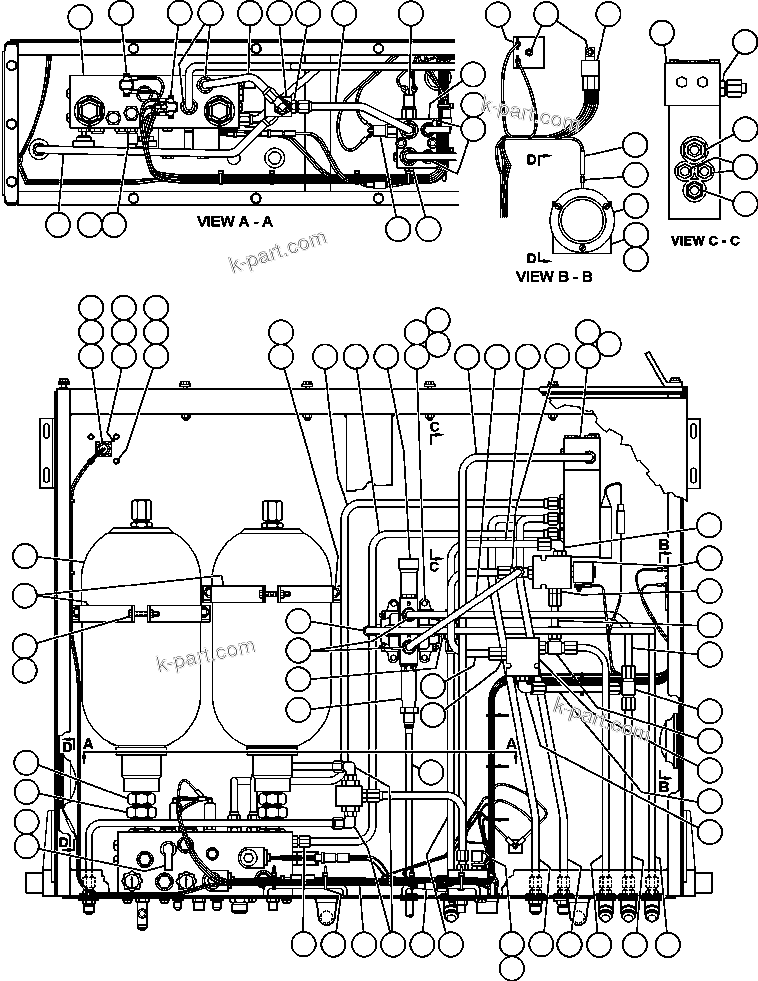

HYDRAULIC/BRAKE CABINET ASSM - 1 | AFE48-AL 930E S/N A30111 MORENCI

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE48-AL 930E S/N A30111 MORENCI

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	TY8075	BRACKET, MOUNTING	2
?	C1605	CAPSCREW - 3/8" - 16NC X 1 3/4"	2
?	TG9225	LOCKNUT - 3/8"	2
?	MM0461	FLAT WASHER - M10	8
?	MM0056	CAPSCREW - M10 X 1.50 X 40	8
?	MM0471	LOCKWASHER - M10	4
?	MM0178	NUT - M10	4
?	PB6780	ACCUMULATOR - 2.5 GALLON	2
?	SM2117	PLATE, NUT CONNECTOR SHELL - #14	1
?	SM0721	GASKET - #14 SHELL	1
?	WA5641	MACHINE SCREW - #4	4
?	VD7129	LOCKWASHER - #4	1
?	SF0542	MACHINE SCREW - #4	1
?	VN9717	NUT - #4	1
?	SM2784	PLATE, CONNECTOR	1
?	MM0469	LOCKWASHER - M6	4
?	MM0581	CAPSCREW - M6 X 1.00 X 16	4
?	SR6320	CAPSCREW - 1/2" - 13NC X 7/8"	2
?	EG0601	TUBE	1
?	EG0602	TUBE	1
?	WB0584	FITTING, ADAPTOR	9
?	PB6922	VALVE, HOIST PILOT (SEE INDEX)	1	40064
?	EG0603	TUBE	1
?	EB4164	TUBE	1
?	EC6227	TUBE	1
?	WB0557	FITTING - TEE	2
?	PC0105	VALVE, RELAY (SEE INDEX)	1	60125
?	WB0508	FITTING - 90 DEG	5
?	PB7242	VALVE, SOLENOID (SEE INDEX)	1	40045
?	TZ5040	TUBE	1
?	EG1127	TUBE	1
?	EC6228	TUBE	1
?	WB0418	FITTING - TEE	1
?	EC3343	TUBE	1
?	TZ5042	TUBE	1
?	EC3342	TUBE	1
?	PB8367	VALVE, CHECK	1
?	EG0604	TUBE	1
?	EG0605	TUBE	1
?	EG0607	TUBE	1
?	PB6528	COUPLING, DIAGNOSTIC - MALE	3
?	PB6039	COUPLING, DIAGNOSTIC - FEMALE	1
?	PB6041	CAP, DUST	3
?	EG0608	TUBE	1
?	PB6894	CABLE ASSEMBLY	1
?	PB6895	KIT, CONNECTION	1
?	VZ3250	DIODE	2
?	EF6943	HARNESS, BRAKE CABINET INTERNAL	1
?	VZ0598	TYRAP	12
?	WA4796	FITTING	2
?	WB0602	FITTING	2
?	TY7550	BLOCK, JUNCTION	1
?	PB6992	SWITCH, STOP LIGHT	1
?	EF8198	TUBE	1
?	PB6803	VALVE, SHUTTLE	1
?	EF8197	TUBE	1
?	PB6784	SWITCH, PARK BRAKE BRAKE	1
?	PB6783	SWITCH, ACCUMULATOR PRESSURE	1
?	PC0081	MANIFOLD, BRAKE (SEE INDEX)	1	55117
?	TY9260	TUBE	1
?	PB6785	SWITCH, BRAKE LOCK LOW PRESSURE	1
?	VM0314	PLUG, O-RING	2
?	PC0018	TIMER	1
?	SG3408	NUT - #10	2
?	PB4767	RELAY - BRAKE WARNING	1
?	SF9896	KNIFE, DISCONNECT	2
?	DL4172	SLEEVE, INSULATING	2
?	VS0035	DOME LIGHT	2
?	SR6747	BULB	2
?	TM9090	INSULATOR	2
?	DC3101	LOCKWASHER - #10	6
?	VF2231	MACHINE SCREW - #10 - 3/8"	6
?	WB1024	FITTING	1
?	WB0586	FITTING	1
?	WB0585	ADAPTOR, FITTING	3
?	WB0567	FITTING, TEE	1
?	WB0583	FITTING	1
?	DD5640	FLAT WASHER - 1/2"	2
