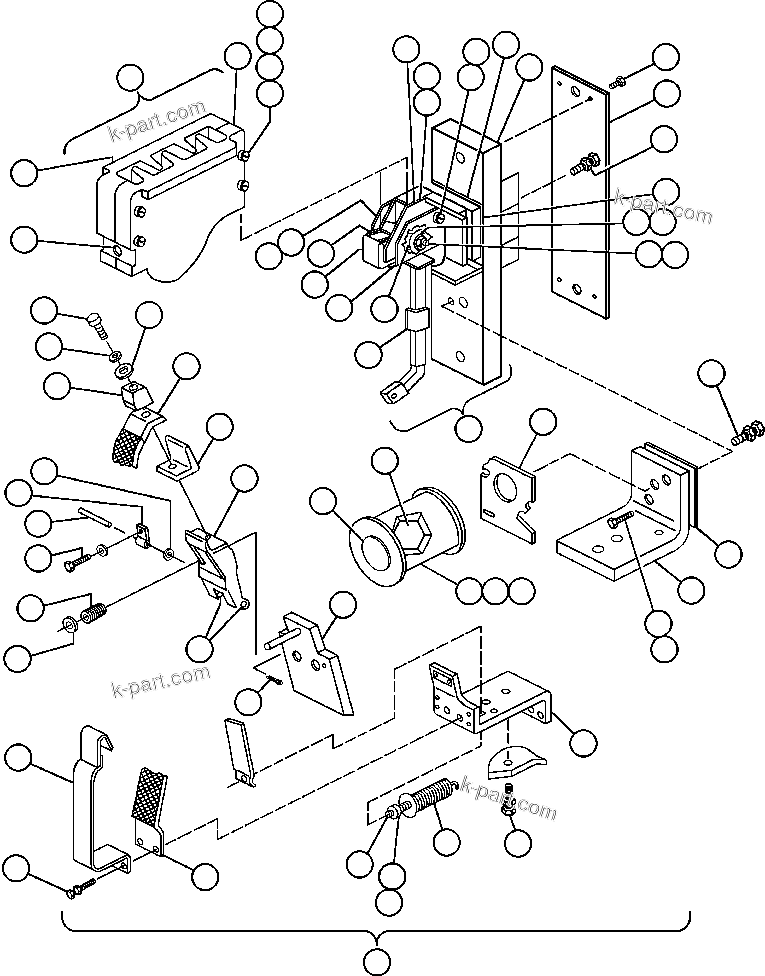

CONTACTOR - G.F. (TV3419) | AFE48-AL 930E S/N A30111 MORENCI

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE48-AL 930E S/N A30111 MORENCI

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	TV3419	CONTACTOR	1
?	VS8893	BASE	1
?	VS9207	SCREW WITH LOCKWASHER - #8 - 36NF X 1/2"	1
?	VS8939	FRAME, MAGNET	1
?	VS9318	STOP	1
?	C5746	CAPSCREW - 1/4" - 20NC X 3/4"	2
?	C5774	LOCKWASHER - 1/4"	2
?	VE5759	SPRING WITH PLUG	1
?	SD4235	LOCKWASHER - 1/4" (INTERNAL TOOTH)	1
?	SF2755	NUT - #10 - 32NF	2
?	VS9034	CALIBRATING SCREW - #10 - 32NF X 2 7/16"	1
?	BF1890	ARMATURE ASSEMBLY	1
?	R3869	SCREW - 5/16" - 18NC X 5/8"	2
?	C1538	LOCKWASHER - 5/16"	2
?	VS8971	HORN WITH SPRING	1
?	VM0276	SHUNT, FLEXIBLE	1
?	VS9172	PIN - 5/16" X 2 7/8" STN STL	1
?	VS9171	CLAMP	2
?	VS6881	WASHER - 5/16" (BRASS)	2
?	VS9209	SCREW WITH LOCKWASHER - #10 - 32NF X 1/2"	4
?	VE5760	ARM	1
?	VJ0819	BUSHING, PLAIN - 0.3135" ID (BRONZE)	2
?	VM0252	SPRING	1
?	VE5761	COTTER PIN - 3/32" X 1/2"	1
?	VS9175	SEAT, SPRING	1
?	VM0228	ARCING HORN	1
?	VJ7860	CAPSCREW - 5/16" - 18NC	2
?	120386	WASHER - 5/16" (NARROW)	6
?	VE4696	LOCKWASHER - 5/16"	2
?	VS9285	CONTACTOR TIP	2
?	VS9173	ARCING HORN	1
?	VM0293	BLOWOUT COIL WITH STATIONARY CONTACT SUPPORT	1
?	TR8320	MACHINE SCREW, SL FIL HD - #10 - 32NF X 1/2"	2
?	DC3101	LOCKWASHER - #10	3
?	VS9071	POLE PIECE	1
?	VS9072	POLE PIECE	1
?	VE5763	MACHINE SCREW - #10 - 32NF X 3" (BRASS)	1
?	VS8897	INSULATION TUBE - 0.546"	2
?	VS8897	INSULATION TUBE - 0.546"	1
?	VS8898	INSULATION TUBE - 2.230"	1
?	VS8903	SHIELD - 0.060"	2
?	VE5764	INSULATION TUBE - 2.227"	1
?		(NOT USED THIS APPLICATION)	2
?	VS8895	CORE, BLOWOUT COIL	1
?	VS8894	CORE, MAGNET	1
?	VS8899	INSULATION - 2 1/4"	1
?	H6820	SCREW - 5/16" - 18NC X 1 1/4"	4
?	C1538	LOCKWASHER - 5/16"	4
?	C1603	CAPSCREW - 3/8" - 16NC X 1 1/4"	1
?	C0312	LOCKWASHER - 3/8"	1
?	VE5765	MACHINE SCREW - #8 X 1 1/4"	1
?	VS9049	SHIELD	1
?	VE5766	MACHINE SCREW - #6 X 3/8"	2
?	VJ9158	SCREW - #10 - 32NF X 3/8"	4
?	H2648	LOCKWASHER - #10	4
?	VS6662	FLAT WASHER - #10 (NARROW)	4
?	VE4604	FLAT WASHER - #8	1
?	VE2248	SHIM - 0.035"	1
?	VE3288	PLATE, LOCKING	1
?	VE5767	ARC CHUTE	1
?	VE5768	SIDE, ARC CHUTE	1
?	VE5769	SIDE, ARC CHUTE	1
?	VS8275	PIN	2
?	VE5770	MACHINE SCREW - #10 - 32NF X 1/4"	4
?	VE4600	FLAT WASHER - #10 (NARROW)	8
?	VS6662	FLAT WASHER - #10	4
?	SF2755	NUT - #10 - 32NF	4
?	VM0186	COIL, OPERATING	1
?	VE0252	SPRING WASHER - 1.40 ID, ZINC PL	1
