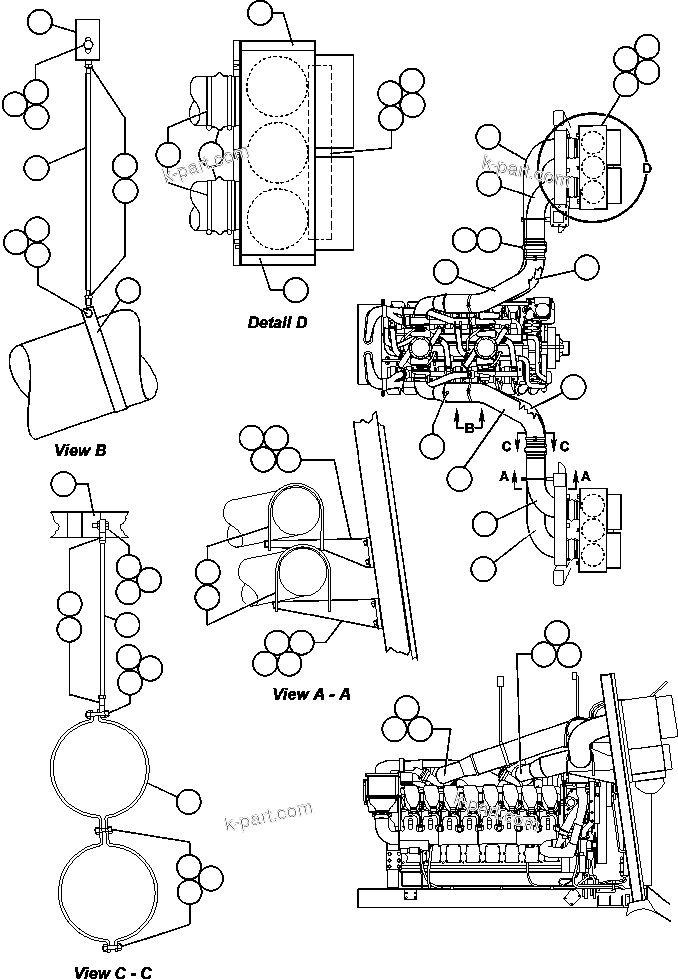

AIR CLEANER PIPING | AFE48-AL 930E S/N A30111 MORENCI

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE48-AL 930E S/N A30111 MORENCI

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	WA1096	CLAMP, T-BOLT	16
?	WB1060	ELBOW - 90 DEG	2
?	WB1061	ELBOW - 68 DEG	2
?	VW7882	HOSE, HUMP	8
?	WA1075	CLAMP, T-BOLT	8
?	EH6626	TUBE, LOWER FRONT - R.H.	1
?	EH6629	TUBE, LOWER REAR - R.H.	1
?	EH6627	TUBE, UPPER REAR - R.H.	1
?	EH6631	TUBE, UPPER REAR - R.H.	1
?	EH6633	TUBE, UPPER FRONT - L.H.	1
?	EH6637	TUBE, UPPER REAR - L.H.	1
?	EH6632	TUBE, LOWER FRONT - L.H.	1
?	EH6635	TUBE, LOWER REAR - L.H.	1
?	R2028	PLUG, PIPE	4
?	MM0617	CAPSCREW - M12 X 1.75 X 25	16
?	WA1066	CLAMP, T-BOLT - DIA. 6.69 (1)	4
?	WA1067	CLAMP, T-BOLT - DIA. 6.81 (2)	4
?	PB6850	AIR CLEANER ASSEMBLY (SEE INDEX)	2	14491
?	TR4229	CAPSCREW - 5/8" - 11NC X 1 3/4"	28
?	C1541	LOCKWASHER - 5/8"	28
?	WA0361	FLAT WASHER - 5/8" (HARDENED)	28
?	TB1406	GUARD, RAIN	2
?	TB1018	GUARD, RAIN - R.H.	2
?	TB1019	GUARD, RAIN - L.H.	2
?	TR2961	CAPSCREW - 5/8" - 11NC X 1"	8
?	VC1390	LOCKWASHER - 5/8"	8
?	TR9082	FLAT WASHER - 5/8"	8
?	EG9233	BRACKET	2
?	WA4726	FLAT WASHER - 3/8" (HARDENED)	40
?	HE5611	LOCKNUT - 3/8" - 16NC	12
?	VC8762	CAPSCREW - 3/8" - 16NC X 1 1/2"	4
?	WA1602	END, ROD	8
?	WA3138	NUT, JAM - 3/8" - 24NF	8
?	EG8037	ROD, THREADED	2
?	TA6490	U-BOLT	4
?	TR4434	CAPSCREW - 3/8" - 16NC X 2"	4
?	TZ5930	CLAMP	2
?	EG9758	BRACKET, MOUNTING	2
?	EG8036	ROD, THREADED	2
?	EG8033	CLAMP, DOUBLE	4
?	TD0792	CAPSCREW - 3/8" - 16NC X 2 1/4"	4
?	MM0462	FLAT WASHER - M12	32
?	MM0472	LOCKWASHER - M12	32
?	EG6276	BRACKET, UPPER	2
?	EG6277	BRACKET, UPPER	2
?		NOTE: (1) CLAMP MAY VARY DUE TO THICKNESS	-1
?		OF ELBOW WB1061.	-1
