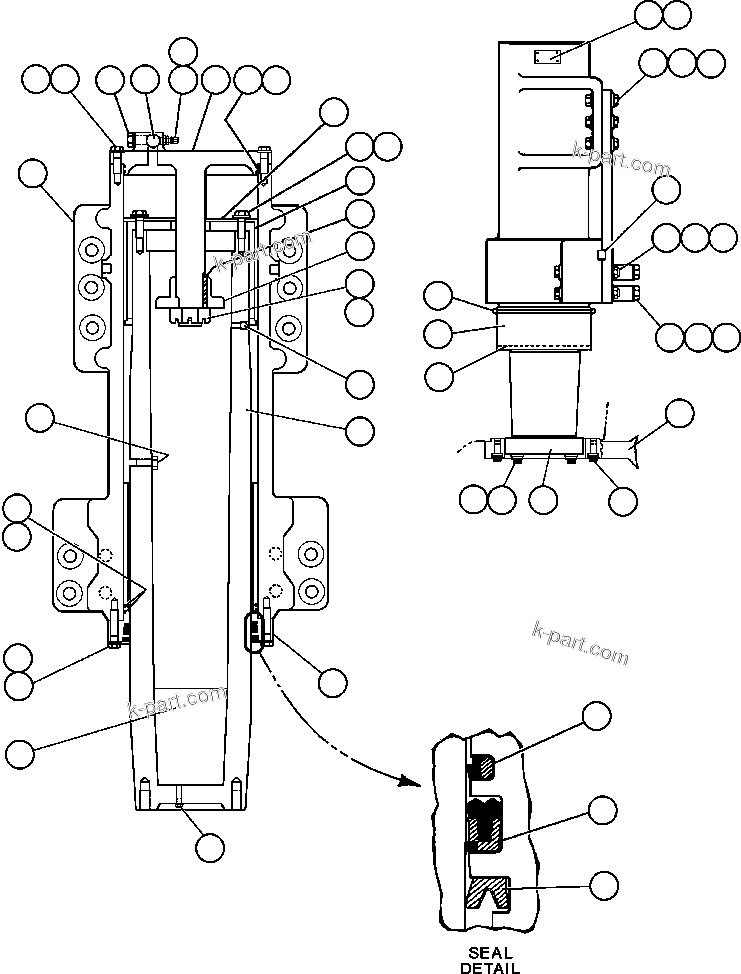

FRONT SUSPENSION & MOUNTING | AFE48-AL 930E S/N A30111 MORENCI

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE48-AL 930E S/N A30111 MORENCI

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	EG3807	FRONT SUSPENSION ASSEMBLY	1
?	ED0195	HOUSING	1
?	EC4598	CAP, SUSPENSION	1
?	WA0363	FLAT WASHER - 3/4" (HARDENED)	60
?	VN9088	CAPSCREW - 3/4" - 10NC X 2 1/2" - G8	24
?	WA1282	RING, BACKUP (1)	4
?	WA5668	SEAL, O-RING (1)	4
?	VN3606	CAPSCREW - 3/4" - 10NC X 3" - G8	12
?	EG3817	BEARING, UPPER (3)	1
?	EG3815	RETAINER, UPPER BEARING	1
?	EG3816	BEARING, UPPER	1
?	EH6529	STOP, PISTON (3)	1
?	VW4451	NUT	1
?	VC2629	PIN, LOCK	1
?	H2981	BALL, STEEL	2
?	EG1216	ROD, PISTON	1
?	EG3810	BEARING, LOWER	1
?	EG3811	BEARING, LOWER	1
?	EG3812	RETAINER, LOWER BEARING	1
?	VN9131	CAPSCREW - 3/4" - 10NC X 3 3/4" - G8	24
?	VM0314	PLUG, O-RING	1
?	VJ3911	OIL, SUSPENSION (5 GAL CONTAINER)	1
?	AK3761	ADDITIVE, OIL (5 GAL CONTAINER)	1
?	TH7520	CAPSCREW - 1" - 14NF X 1 3/4" (SOCKET HEAD)	1
?	PB2194	CHARGING VALVE	1
?	TR9993	VALVE CAP	1
?	TD7179	VALVE CORE	1
?	TF1144	O-RING - HOUSING	1
?	WA0052	O-RING - VALVE STEM	1
?	VD5076	GASKET, FLAT	1
?	TY8879	PLUG, VENT	1
?	TZ8637	PLUG, SENSOR	1
?	PB9958	SEAL, ROD BUFFER - 15 1/2" (1)	1
?	PB9788	SEAL, ROD DOUBLE LIP - 15 1/2" (1)	1
?	PB9959	SEAL, WIPER - 12 1/2" (1)	1
?	WB2892	PLATE, WARNING	2
?	R1073	SCREW, DRIVE - #6 X .19	8
?	EG3818	PLATE	1
?	EH6536	KEY (3)	1
?	WA0368	FLAT WASHER - 1 1/2" (HARDENED)	12
?	VN9182	CAPSCREW - 1 1/2" - 6NC X 6" - G8	6
?	WA0404	NUT - 6NC - G8	6
?	WA0370	FLAT WASHER - 1 3/4" (HARDENED)	12
?	WB0925	CAPSCREW - 1 3/4" - 5NC X 14"	8
?	WA0405	NUT - 5NC - G8	4
?	ED7915	SPACER	4
?	ED7912	RETAINER, PLATE	1
?	TY2149	FLAT WASHER, (HARDENED)	14
?	WA4817	CAPSCREW - 1 1/4" - 12NF X 5" (12 PT HEAD)	38
?	EF2753	ARM, STEERING - L.H.	1
?	EF2754	ARM, STEERING - R.H.	1
?	TF4079	CLAMP	2
?	EF3373	BOOT	1
?	EF3374	BOOT WIRE	1
?	ED7916	KEY, SHEAR	1
?		NOTE: NS = NOT SHOWN	-1
?	EF5480	COVER, PROTECTOR (2)	1
?	C1602	CAPSCREW - 3/8" - 16NC X 1" (2)	2
?	DF3042	FLAT WASHER - 3/8" (2)	2
?	WA3925	DECAL, HYDRAIR	1
?	AK3857	NOTE: (1) INCLUDED IN AK3857 SEAL KIT.	-1
?		(2) INCLUDED IN EG3807 FRONT SUSPENSION ASSM.	-1
?	MK4035	(3) REWORKED UNDER MK4035 FRONT	-1
?		SUSPENSION MODIFICATION KIT.	-1
?		(QUANTITIES SHOWN ARE ONE SIDE ONLY)	-1
