AFE48-AC 930E S/N A30076-A30078 & A30080 SYNCRUDE

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	BF4186	TANK, SURGE	1
?	BF4187	TANK, UPPER FRONT	1
?	BF4188	TANK, LOWER FRONT	1
?	BF4189	TANK, UPPER REAR	1
?	BF4190	TANK, LOWER REAR	1
?	BF4191	TANK, CENTER FRONT	1
?	BF3005	TANK, CENTER REAR	1
?	BF3006	SUPPORT, CENTER REAR	2
?	BF4192	SUPPORT, CENTER FRONT	2
?	BF4193	TUBE	626
?	BF4194	TUBE	774
?	VE1219	TUBE, STAY END	24
?	BF3010	BAFFLE, AIR TOP	2
?	BF3011	BAFFLE, AIR BOTTOM	2
?	BF3012	BAFFLE, AIR TOP	4
?	BF3013	BAFFLE, AIR BOTTOM	4
?	BF4196	MEMBER, SIDE - R.H. FRONT	1
?	BF4197	MEMBER, SIDE - L.H. FRONT	1
?	BF3016	MEMBER, SIDE - R.H. REAR	1
?	BF3017	MEMBER, SIDE - L.H. REAR	1
?	VE7654	RING, FAN	1
?	BF4198	SHROUD, FAN	1
?	VE1285	BRACKET, X-BRACE	2
?	BF3020	ROD, X-BRACE	2
?	C5747	CAPSCREW - 5/16" - 18NC X 3/4"	4
?	VE4005	CAPSCREW - 3/8" - 16NC X 3/4"	8
?	C1602	CAPSCREW - 3/8" - 16NC X 1"	38
?	VE3460	CAPSCREW - 1/2" - 13NC X 1"	44
?	C1614	CAPSCREW - 1/2" - 13NC X 1 1/4"	20
?	C0312	LOCKWASHER - 3/8"	34
?	BF4199	LOCKWASHER - 1/2"	66
?	VE5442	FLAT WASHER - 5/16"	6
?	E3735	FLAT WASHER - 3/8"	38
?	VE4440	FLAT WASHER - 1/2"	22
?	VE6312	NUT, LOCKING - 5/16"	2
?	C1521	NUT - 3/8"	26
?	VE3461	NUT - 1/2"	22
?	C1528	NUT - 3/4"	12
?	VE4444	ELBOW	2
?	VE4445	NIPPLE	2
?	BF3021	HOSE	2
?	BF3022	HOSE	2
?	VE4011	FITTING	8
?	VE4013	FITTING	4
?	BF3622	CAPSCREW - 3/8" - 16NC X 1"	2
?	VE4000	GROMMENT, RUBBER	1402
?	VE3999	GROMMENT, RUBBER	1402
?	BF4200	COOLER, OIL	1
?	BF4201	CLAMP, U-BOLT	2

Komatsu AFE48-AC 930E S/N A30076-A30078 & A30080 SYNCRUDE parts catalog PDF

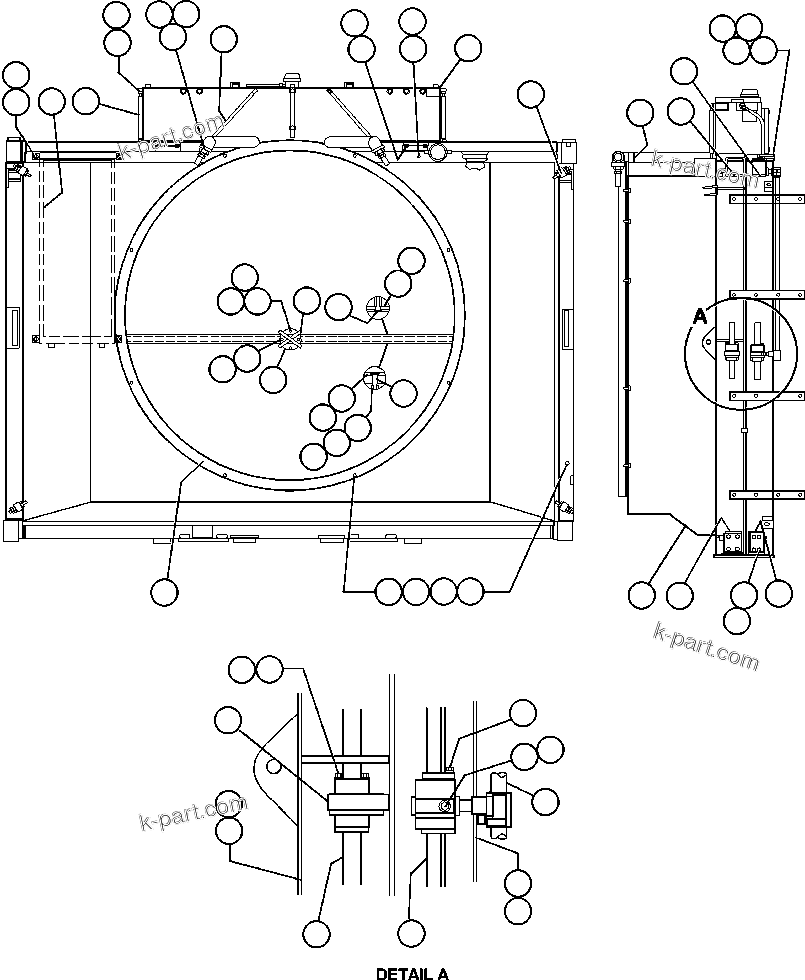

RADIATOR & SHROUD ASSEMBLY (PC0225) (60196) in AFE48-AC 930E S/N A30076-A30078 & A30080 SYNCRUDE. Diagram image and parts list.
