AFE48-AC 930E S/N A30076-A30078 & A30080 SYNCRUDE

23 27 20 18 19 26 17 28 24 30 25 29 21 11 4 1 31 33 10 32 29 35 28 22 36 16 14 9 13 12 37 7 28 6 28 30 29 34 31 38 32 8 12 13 3 5 29 16 15 35 28 8 5 2 39 29 40 28

#	Part Number	Partname	Quantity	Reference
1	WA1096	CLAMP, T-BOLT	16
2	WB1060	ELBOW - 90 DEG	2
3	WB1061	ELBOW - 68 DEG	2
4	VW7882	HOSE, HUMP	4
5	WA1075	CLAMP, T-BOLT	8
6	EG6318	TUBE, LOWER - R.H.	1
7	EG6317	TUBE, UPPER - R.H.	1
8	WA1066	CLAMP, T-BOLT - DIA. 6.69 (1)	4
8	WA1067	CLAMP, T-BOLT - DIA. 6.81 (1)	4
9	R2028	PLUG, PIPE	4
10	EG6315	TUBE, UPPER - L.H.	1
11	EG6316	TUBE, LOWER - L.H.	1
12	MM0462	FLAT WASHER - M12	32
13	MM0472	LOCKWASHER - M12	32
14	EG6276	BRACKET, UPPER	2
15	EG6277	BRACKET, LOWER	2
16	MM0617	CAPSCREW - M12 X 1.75 X 25	16
17	PB6850	AIR CLEANER ASSEMBLY (SEE INDEX)	2	14491
18	TR4229	CAPSCREW - 5/8" - 11NC X 1 3/4"	28
19	C1541	LOCKWASHER - 5/8"	28
20	WA0361	FLAT WASHER - 5/8" (HARDENED)	28
21	TB1406	GUARD, RAIN	2
22	TB1018	GUARD, RAIN - R.H.	2
23	TB1019	GUARD, RAIN - L.H.	2
24	TR2961	CAPSCREW - 5/8" - 11NC X 1"	8
25	VC1390	LOCKWASHER - 5/8"	8
26	TR9082	FLAT WASHER - 5/8"	8
27	EG9233	BRACKET	2
28	WA4726	FLAT WASHER - 3/8" (HARDENED)	40
29	HE5611	LOCKNUT - 3/8" - 16NC	12
30	VC8762	CAPSCREW - 3/8" - 16NC X 1 1/2"	4
31	WA1602	END, ROD	8
32	WA3138	NUT, JAM - 3/8" - 24NF	8
33	EG8037	ROD, THREADED	2
34	TA6490	U-BOLT	4
35	TR4434	CAPSCREW - 3/8" - 16NC X 2"	4
36	TZ5930	CLAMP	2
37	EG9758	BRACKET, MOUNTING	2
38	EG8036	ROD, THREADED	2
39	EG8033	CLAMP, DOUBLE	4
40	TD0792	CAPSCREW - 3/8" - 16NC X 2 1/4"	4
NS\|42		NOTE: (1) CLAMP MAY VARY DUE TO THICKNESS	-1
NS\|43		OF ELBOW WB1061.	-1

Komatsu AFE48-AC 930E S/N A30076-A30078 & A30080 SYNCRUDE parts catalog PDF

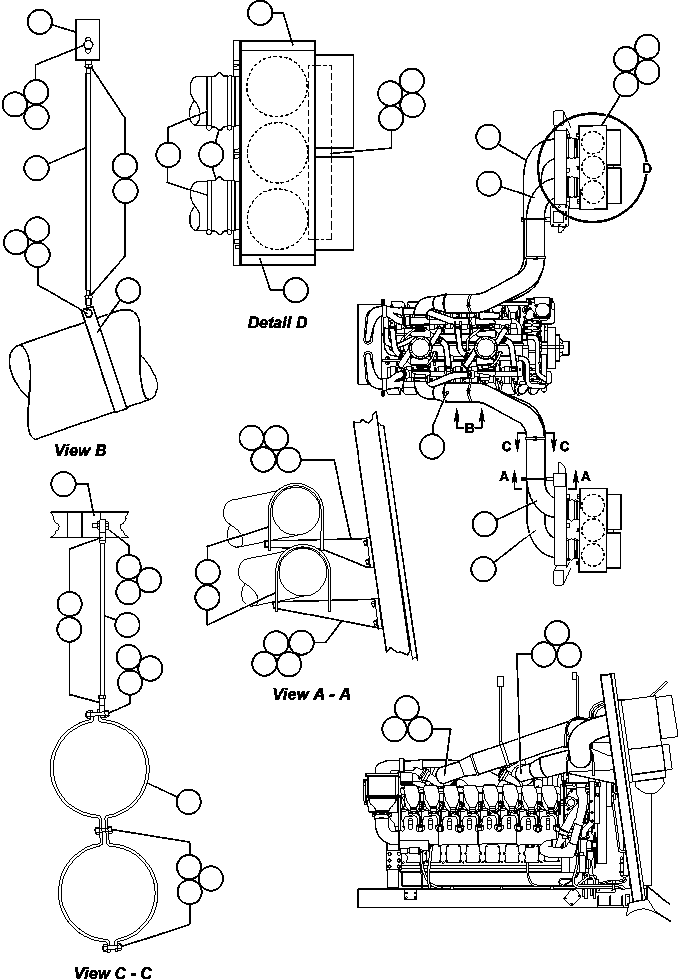

AIR CLEANER PIPING (60171) in AFE48-AC 930E S/N A30076-A30078 & A30080 SYNCRUDE. Diagram image and parts list.
