AFE47-V 730E S/N 32795 & 32797 ISCOR GROOTEGELUK

11 14 11 11 5 6 11 14 13 11 12 3 4 2 5 6 7 8 2 3 4 1 10 9 1

#	Part Number	Partname	Quantity
1	BF2839	VALVE, NEEDLE	2
1	BF2864	O-RING (1)	2
1	BF2860	O-RING (1)	2
1	BF2863	RING, BACK-UP (1)	4
2	BF2840	VALVE, CHECK	3
2	BF2860	O-RING (2)	3
2	BF2864	O-RING (2)	3
2	BF2865	RING, BACK-UP (2)	3
3	BF2842	VALVE, SOLENOID	2
3	BF2860	O-RING (3)	2
3	BF2866	O-RING (3)	2
3	BF2864	O-RING (3)	2
3	BF2863	RING, BACK-UP (3)	4
3	BF2868	RING, BACK-UP (3)	2
4	BF2843	COIL - 24 VOLT	2
5	BF4310	VALVE, PRESSURE REDUCTION (4)	1
6	BF2851	DISC, ORIFICE	1
7	BF4311	VALVE, PRESSURE REDUCTION (4)	1
8	BF2850	DISC, ORIFICE	1
9	BF4309	VALVE, PILOT (AUTOMATIC APPLY)	1
9	BF2860	O-RING (5)	1
9	BF2866	O-RING (5)	1
9	BF2867	O-RING (5)	1
9	BF2864	O-RING (5)	1
9	BF2865	RING, BACK-UP (5)	1
9	BF2868	RING, BACK-UP (5)	2
9	BF2869	RING, BACK-UP (5)	2
10	BF2838	PLUG, CAVITY	1
10		O-RING (6)	1
11	BF3260	PLUG, PORT	7
12	BF2846	CARTRIDGE, LOAD SHUTTLE	1
12	BF2860	O-RING (3)	1
12	BF2866	O-RING (3)	1
12	BF2864	O-RING (3)	1
12	BF2865	RING, BACK-UP (3)	1
12	BF2868	RING, BACK-UP (3)	2
13	BF4312	CARTRIDGE, HOT OIL (7)	1
14	BF3261	PLUG, PORT	2
14	BF2874	O-RING	2
NS\|40	BF2853	NOTE: (1) INCLUDED IN BF2853 SEAL KIT.	-1
NS\|41	BF2854	(2) INCLUDED IN BF2854 SEAL KIT.	-1
NS\|42	BF2856	(3) INCLUDED IN BF2856 SEAL KIT.	-1
NS\|43	BF4313	(4) INCLUDED IN BF4313 SEAL KIT.	-1
NS\|44	BF2855	(5) INCLUDED IN BF2855 SEAL KIT.	-1
NS\|45	BF2852	(6) INCLUDED IN BF2852 SEAL KIT.	-1
NS\|46	BF4314	(7) INCLUDED IN BF4314 SEAL KIT.	-1

Komatsu AFE47-V 730E S/N 32795 & 32797 ISCOR GROOTEGELUK parts catalog PDF

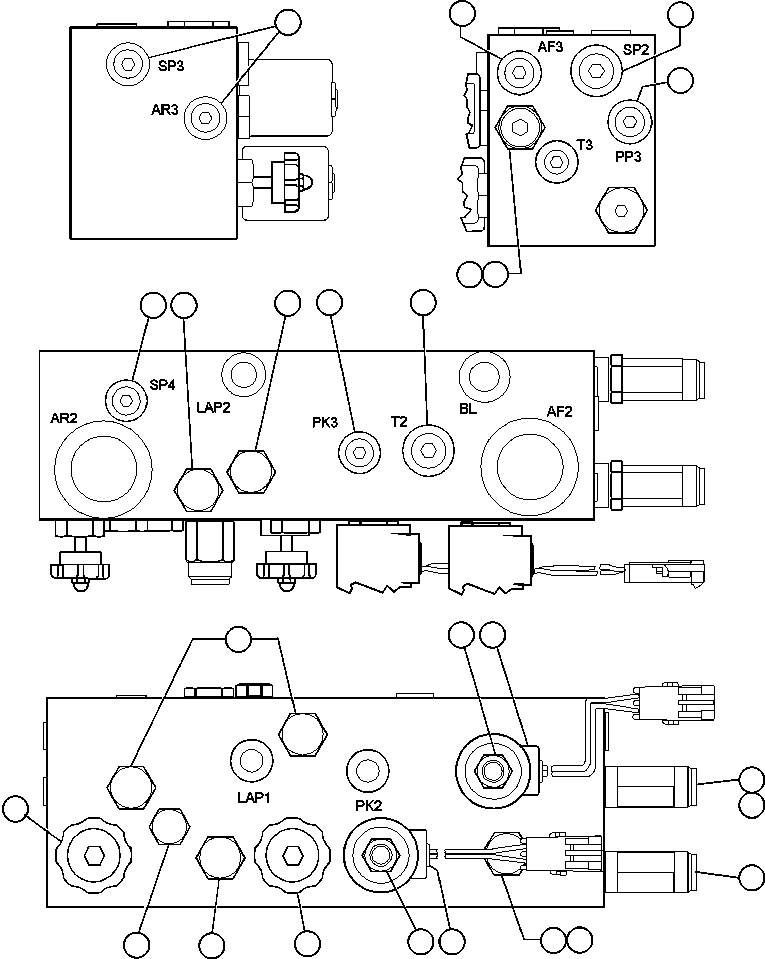

BRAKE MANIFOLD - TWO CIRCUIT (PC0080) (55346) in AFE47-V 730E S/N 32795 & 32797 ISCOR GROOTEGELUK. Diagram image and parts list.
