AFE48-CK 930E-2 S/N A30225 JACOB'S RANCH

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	EF8669	TRANSDUCER ASSEMBLY (PAYLOAD)	2
?	EF8679	CHECK VALVE ASSEMBLY	2
?	TZ8627	BODY, VALVE	2
?	TD7179	CORE, VALVE	2
?	EF8677	ADAPTOR, TRANSDUCER	2
?	07000-51009	O-RING	2
?	EF5480	PLATE, BENT (PROTECTOR)	1
?	C1602	CAPSCREW - 3/8" - 18NC - 1"	2
?	DF3042	FLAT WASHER - 3/8"	2
?	TW2477	BRACKET	1
?	TD0794	CAPSCREW - 5/16" - 18NC X 3/4"	2
?	TV0177	FLAT WASHER - 5/16"	2
?	SC4174	LOCKWASHER - 5/16"	2
?	PB4307	SWITCH, PROXIMITY	1
?	WA4770	MACHINE SCREW - #10 - 24NC X 2"	2
?	VC5344	FLAT WASHER - #10	4
?	DC3101	LOCKWASHER - #10	2
?	DF0017	NUT - #10	2
?	PB7557	SWITCH, PRESSURE (STEERING PRESSURE)	1
?	EJ2077	HARNESS, LEFT FRAME RAIL	1
?	TN6999	COVER	2
?	PB8333	SWITCH, PRESSURE (NITROGEN)	2
?	EC1015	VALVE CHECK ASSEMBLY	2
?	EC1447	BODY, VALVE	2
?	TD7179	CORE, VALVE	2
?	TL3995	O-RING	2
?		NOTE: NS = NOT SHOWN	-1
?	EH0753	PLATE, BENT (BODY UP - BODY)	1

Komatsu AFE48-CK 930E-2 S/N A30225 JACOB'S RANCH parts catalog PDF

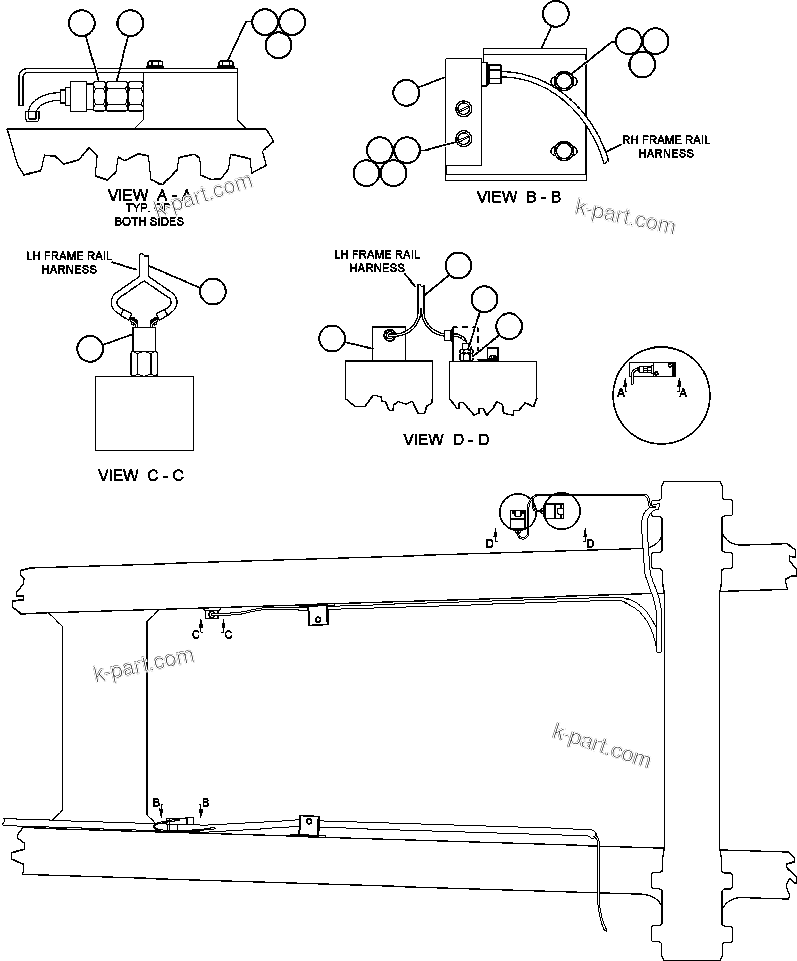

SWITCH - BODY UP, FRT SUSP, STRG ACCUM PRES (60234) in AFE48-CK 930E-2 S/N A30225 JACOB'S RANCH. Diagram image and parts list.
