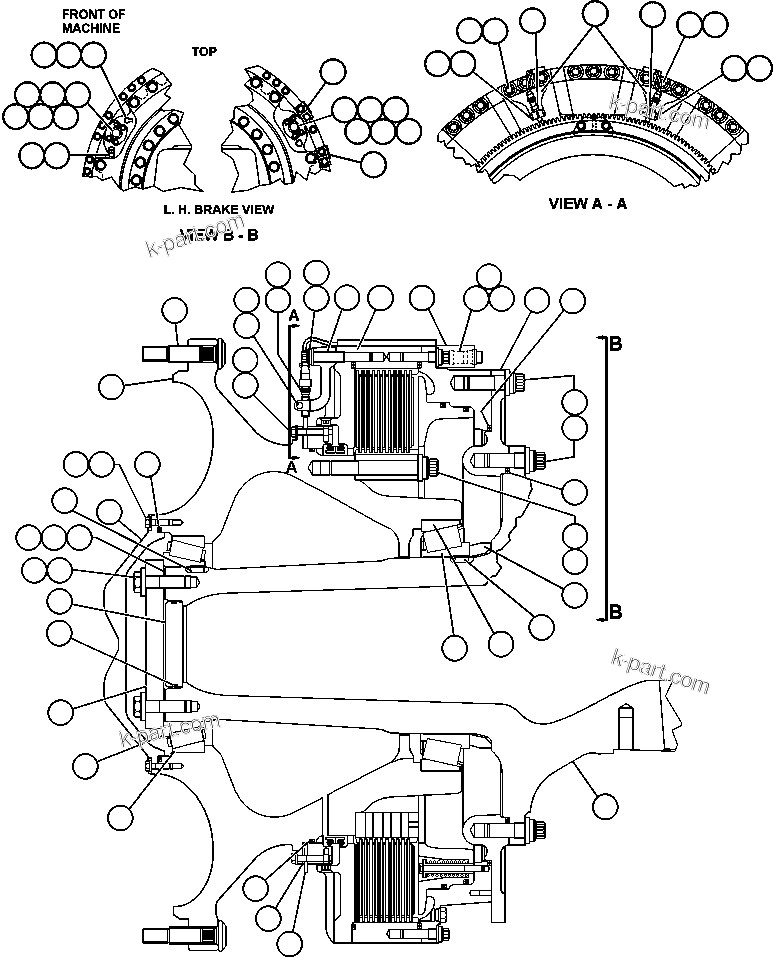

SPINDLE, HUB AND BRAKE INSTALLATION | AFE48-CK 930E-2 S/N A30225 JACOB'S RANCH

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE48-CK 930E-2 S/N A30225 JACOB'S RANCH

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	EG7692	HUB, WHEEL	1
?	EH0826	STUD, HEADED	57
?	EG7697	COVER	1
?	C1540	LOCKWASHER - 1/2"	20
?	C1614	CAPSCREW - 1/2" - 13NC X 1 1/2"	20
?	EH7192	O-RING (1)	1
?	ED3769	SHIM - .005 (1)	3
?	ED3770	SHIM - .007 (1)	4
?	ED3771	SHIM - .020 (1)	6
?	TY2148	FLAT WASHER - 1" (HARDENED)	8
?	VM8258	CAPSCREW - 1" - 8NC X 3 3/4"	8
?	EG7699	RETAINER, BEARING	1
?	ED3768	CAP, SPINDLE	1
?	EH7190	O-RING (1)	1
?	PC0521	CUP, ROLLER (TAPERED) (1)	1
?	PC0520	CONE, ROLLER (TAPERED) (1)	1
?	EH7195	O-RING (1)	1
?	ED3755	SHIM (1)	30
?	ED4887	GEAR, SPEED SENSOR	1
?	WA0360	FLAT WASHER - 1/2" (HARDENED)	12
?	VN9095	CAPSCREW - 1/2" - 13NC X 2 3/4"	12
?	VN9055	CAPSCREW - 3/8" - 16NC X 1 3/4" (L.H. SIDE REQUIRES QTY.2)	1
?	HE5611	LOCKNUT - 3/8" - 16NC (L.H. SIDE REQUIRES QTY.2)	1
?	PB9889	SENSOR, SPEED	1
?	WA5659	FLAT WASHER (HARDENED) SPECIAL (L.H. SIDE REQUIRES QTY.4)	2
?	WA0961	CAPSCREW - 7/8" - 9NC X 5"(12 PNT)(L.H. SIDE REQUIRES QTY.	2
?	EG0588	MOUNT, SENSOR (L.H. SIDE REQUIRES QTY. 2)	1
?	EH7198	FRONT BRAKE ASSEMBLY (SEE INDEX)	1	60001
?	ED3775	ADAPTOR, BRAKE	1
?	TY2149	FLAT WASHER (HARDENED) - 1 1/4"	89
?	WA5669	CAPSCREW (12 PNT) - 1 1/4" - 12NF X 3 1/2"	57
?	WA5660	CAPSCREW (12 PNT) - 1 1/4" - 12NF X 7 1/2"	32
?	EH7196	O-RING (1)	1
?	EH7194	O-RING (1)	1
?	PC0002	CUP, ROLLER (TAPERED) (1)	1
?	PB9996	CONE, ROLLER (TAPERED) (1)	1
?	ED3772	SPACER, BEARING	1
?	EG7694	SPINDLE	1
?	PB8964	SENSOR, SPEED (L.H. SIDE ONLY)	1
?	EG1768	BRACKET (L.H. SIDE REQUIRES QTY. 2)	1
?	EG0667	HARNESS, SPEED SENSOR (L.H. SIDE ONLY)	1
?	EG0657	HARNESS, SPEED SENSOR	1
?	SM2117	PLATE, NUT CONNECTOR (L.H. SIDE REQUIRES QTY.2)	1
?	WA5642	MACHINE SCREW - #4 - 40NC X 1/2" (L.H. SIDE REQUIRES QTY.8)	4
?	562-22-32290	PIN	2
?	WB1057	REDUCER, O-RING BOSS	1
?	PB6528	COUPLING, DIAGNOSTIC	1
?	PB6041	CAP, DUST	1
?	ED6514	TUBE	1
?	VG9095	O-RING	1
?	TF8090	CLAMP, SPLIT	4
?	WA2572	FITTING, CAPNUT	1
?	WA2567	FITTING, CAPNUT	1
?	WB0537	FITTING, ELBOW - 45 DEG	1
?	EF9609	TUBE	1
?	WA3574	O-RING	1
?	WA2573	FITTING, CAPNUT	1
?	AK4320	NOTE: (1) INCLUDED IN AK4320 BEARING KIT.	-1
?		(QUANTITIES SHOWN ARE FOR ONE SIDE ONLY.)	-1
