AFE48-BM 930E-2 S/N A30161 THRU A30163 CODELCO

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	GE0199	INSULATOR ASSEMBLY	2
?	BF3907	TRIM, PLASTIC EDGING	-1
?	GE0170	SENSOR, DC-AC	6
?	GE0215	BAR, BUS	4
?	GE0199	INSULATOR ASSEMBLY	8
?	VE4519	FLAT WASHER	-1
?	VE4699	LOCKWASHER	-1
?	VE4698	NUT	-1
?	VE5882	CAPSCREW	-1
?	VE7202	FLAT WASHER	-1
?	DC3584	LOCKWASHER	-1
?	GE0156	REACTOR ASSEMBLY	6
?	VE4515	FLAT WASHER	-1
?	VE4687	LOCKWASHER	-1
?	VE4641	CAPSCREW	-1
?	TY4273	BAR, BUS	16
?	VC6561	CAPSCREW - 1/2" - 13NC X 1 1/2"	3
?	TR6008	FLAT WASHER - 1/2"	6
?	TR5445	LOCKWASHER - 1/2"	3
?	TR6443	NUT - 1/2"	3
?	GE0477	PANEL ASSEMBLY - GRID LEMS	1
?	GE0478	BRACKET	1
?	GE0479	INSULATOR	2
?	DF3445	FLAT WASHER - 1/4"	8
?	GE0480	LOCKWASHER - 1/4"	8
?	VE5882	CAPSCREW - 1/4" 20NC X 3/4"	8
?	VE4516	FLAT WASHER - 3/8"	2
?	VE4687	LOCKWASHER - 3/8"	2
?	TC1230	NUT - 3/8"	2

Komatsu AFE48-BM 930E-2 S/N A30161 THRU A30163 CODELCO parts catalog PDF

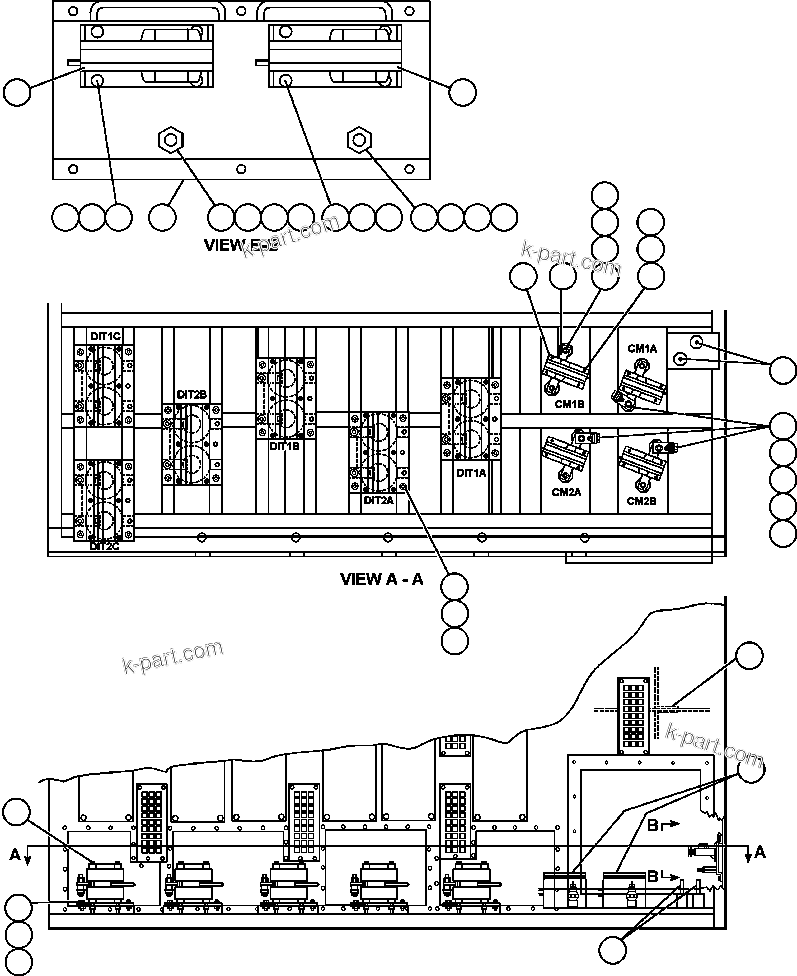

CONTROL CABINET (LOWER BACK SIDE) (64149) in AFE48-BM 930E-2 S/N A30161 THRU A30163 CODELCO. Diagram image and parts list.
