AFE48-BM 930E-2 S/N A30161 THRU A30163 CODELCO

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	GE0013	LOUVER ASSEMBLY	4
?	GE0016	COVER	4
?	VE5762	FLAT WASHER - 5/16"	-1
?	VE4696	LOCKWASHER - 5/16"	-1
?	BF0699	CAPSCREW - 5/16" - 18NC X 3/4"	-1
?	VE4516	FLAT WASHER - 3/8"	-1
?	VE4687	LOCKWASHER - 3/8"	-1
?	TC1234	CAPSCREW - 3/8" - 16NC X 3/4"	-1
?	GE0015	COVER	2
?	GE0633	COVER (SIDE) - LEFT	1
?	GE0014	COVER (SIDE) RIGHT	1
?	GE0021	COLLAR ASSEMBLY	4
?	GE0018	DIFFUSER ASSEMBLY	4
?	GE0019	GASKET	2
?	GE0020	GASKET	2
?	VE3035	PYTHON - #1062	-1
?	GE0017	MOTOR, BLOWER (SEE INDEX)	2	64000
?	GE0435	RESISTOR - .747 OHMS	3
?	GE0034	CONNECTION, INSULATOR	16
?	GE0024	SPACER ASSEMBLY	4
?	GE0029	TUBE	10
?	GE0475	BAR, BUS - INSULATED	5
?	GE0476	BAR, BUS - INSULATED	5
?	PB8171	SPACER, END	4
?	GE0033	BAR, BUS - INSULATED	1
?	GE0031	BAR, BUS	4
?	GE0030	BAR, BUS	4
?	GE0032	BAR, BUS	6
?	GE0022	RESISTOR - .794 OHMS	14
?	GE0023	INSULATOR	40
?	GE0038	SPACER	29
?	GE0037	GROMMET	4
?	GE0026	RESISTOR - .149 OHMS	1
?	GE0454	FRAME, GRID	1
?	WB2477	DECAL, HIGH VOLTAGE	2
?	GE0479	INSULATOR ASSEMBLY	2
?	VE4739	CAPSCREW (SPECIAL)	2
?	VE4516	FLAT WASHER - 3/8"	4
?	VE4687	LOCKWASHER - 3/8"	2
?	TC1233	NUT - 3/8"	2
?	GE0494	MOUNT, BRACKET	1
?	GE0036	CLEAT, CABLE	2
?	GE0035	CLAMP, CABLE	2
?	TC1234	CAPSCREW - 3/8" - 16NC X 3/4"	2
?	VE4687	LOCKWASHER - 3/8"	4
?	GE0040	CAPSCREW - 3/8" - 16NC X 3 1/2"	2
?	VE4515	FLAT WASHER - 3/8"	2
?	GE0620	KIT, STEP	1
?		NOTE: NS = NOT SHOWN	-1
?	PB8167	CAPSCREW, PUSHER - 1/2" - 13NC X 6 1/2"	-1
?	VE4739	CAPSCREW - 3/8" - 16NC X 1"	-1
?	GE0040	CAPSCREW - 3/8" - 16NC X 3 1/2"	4
?	VE4518	CAPSCREW - 1/2" - 13NC X 1 1/2"	-1
?	VE4648	FLAT WASHER - 5/16"	-1
?	VE4515	FLAT WASHER - 3/8"	-1
?	VE4519	FLAT WASHER - 1/2" (NARROW)	-1
?	BF1888	FLAT WASHER - 1/2"	-1
?	GE0041	FLAT WASHER - (SPECIAL)	-1
?	GE0042	FLAT WASHER - 5/8"	-1
?	GE0043	FLAT WASHER - (SPECIAL)	-1
?	GE0044	FLAT WASHER - (SPECIAL)	-1
?	VE4696	LOCKWASHER - 5/16"	-1
?	VE4687	LOCKWASHER - 3/8"	-1
?	VE4699	LOCKWASHER - 1/2"	-1
?	VE5171	LOCKWASHER - 5/8"	-1
?	VE5013	NUT - 5/16" - 18NC	-1
?	VE4698	NUT - 1/2" - 13NC	-1
?	GE0045	NUT - 5/8" - 11NC	-1

Komatsu AFE48-BM 930E-2 S/N A30161 THRU A30163 CODELCO parts catalog PDF

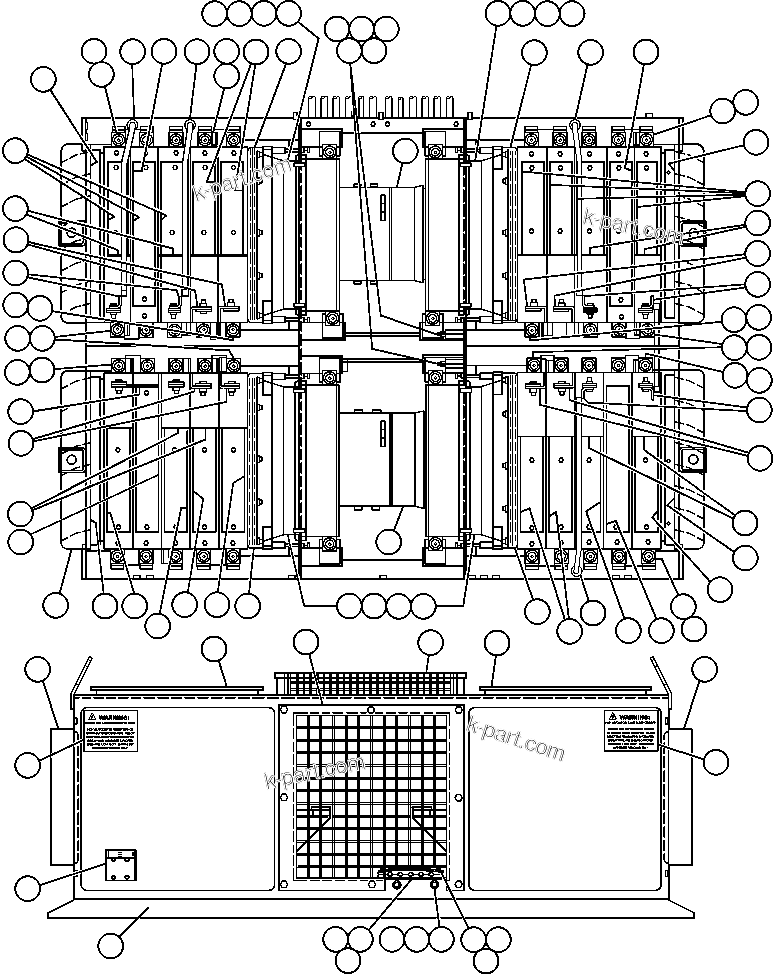

RETARDING GRID ASSEMBLY (HIGH ALTITUDE) (PC0424) (64170) in AFE48-BM 930E-2 S/N A30161 THRU A30163 CODELCO. Diagram image and parts list.
