AFE48-BM 930E-2 S/N A30161 THRU A30163 CODELCO

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	SM0926	SCREW, PANEL	5
?	SM5319	RADIO MODULE (1)	1
?	SM5332	PLATE, MOUNTING	1
?	SM2701	OVERLAY, LEXAN	1
?	PB9704	RADIO	1
?	PB9985	ANTENNA, RADIO (L DECK FRONT OUTSIDE CORNER)	1
?	PB9957	CABLE, EXT ANTENNA	1
?	SM4491	SUPPORT	1
?	PB9766	HARNESS, ADAPTOR	1
?	PC0441	SONALARM, SIGNAL	1
?	PB8658	MACHINE SCREW	1
?	EH7299	WARNING LIGHTS MODULE (1)	1
?	SM2712	PLATE, WARNING LIGHT	1
?	SM2819	LEXAN OVERLAY, WARNING LIGHTS	1
?	PB6972	SWITCH, ROCKER	1
?	PB9723	SWITCH, ROCKER	1
?	SM4443	FLASHER ASSEMBLY - RED LENS	30
?	VL6234	LAMP	30
?	EH9353	SOCKET STRUCTURE	1
?	EH7298	SOCKET STR, INDICATOR LIGHTS	1
?	SM4473	DECAL, CYLINDER OIL TEMPERATURE	1
?	SM5083	DECAL, CYLINDER OIL LEVEL	1
?	SM5052	DECAL, PARKING BRAKE	1
?	SM4315	DECAL, (NOT USED THIS APPLICATION)	4
?	SM5103	DECAL, NO POWER	1
?	SM5065	DECAL, STEERING SYSTEM PRESSURE	1
?	SM5056	DECAL, BRAKE	1
?	SM4470	DECAL, BACKUP LIGHTS	1
?	SM5099	DECAL, PROPULSION SYSTEM WARNING	1
?	SM5053	DECAL, ACCUM PRE-CHARGE PRESSURE	1
?	SM5089	DECAL, CIRCUIT BREAKER TRIPPED	1
?	SM5075	DECAL, BODY-UP	1
?	SM5072	DECAL, 5 MINUTE ENGINE SHUTDOWN TIMER	1
?	SM5098	DECAL, PROPULSION SYSTEM TEMP	1
?	SM5105	DECAL, PROPULSION SYSTEM NOT READY	1
?	SM5084	DECAL, CYLINDER OIL FILTER	1
?	SM5070	DECAL, RETARDER	1
?	SM5071	DECAL, RETARD SPEED CONTROL	1
?	SM5057	DECAL, BRAKE OIL PRESSURE	1
?	SM5078	DECAL, FUEL	1
?	SM5063	DECAL, ENGINE SHUTDOWN	2
?	SM5076	DECAL, CHECK ENGINE	1
?	SM5101	DECAL, RETARD AT CONTINUOUS LEVEL	1
?	SM5097	DECAL, REDUCED PROPULSION SYSTEM	1
?	SM5102	DECAL, NO PROPEL	1
?	SM5106	DECAL, PROPEL SYSTEM REST	1
?	EH9893	PLM/FILTER MINDER MODULE (1)	1
?	SM2707	PLATE, PLM MOUNTING	1
?	SM2784	PLATE, CONNECTOR MOUNTING	1
?	SF0542	MACHINE SCREW - #4NC - 40NC X 5/16"	1
?	VD7129	LOCKWASHER - #4	1
?	VN9717	NUT - #4 - 40NC	1
?	PC0389	GAUGE, RESTRICTION AIR CLEANER	2
?	SM2708	LEXAN OVERLAY	1
?	SM0926	SCREW, PANEL	4
?	EH6363	PLM CONTROL BOX ASSEMBLY	1
?	562-86-37404	BOX, CONTROL	1
?	581-86-55710	BATTERY	1
?	EF9160	CABLE - CONTROLLER TO P.C. (2)	1
?	PB9862	COVER, PROTECTIVE	1
?	WA5641	MACHINE SCREW - #4 - 40NC X 3/8"	4
?	SM2117	PLATE, NUT	1
?	SM0721	GASKET	1
?	WA4605	SCREW, PHILLIPS - #10 - 24NC X 1/2"	4
?	EF9159	HARNESS, PAYLOAD METER	1
?	PB9050	HOSE, VACUUM	2
?	PB9051	FITTING, SINGLE BARB W/FILTER	2
?	PB9056	FITTING, COMPRESSION - FEMALE	2
?	WA3367	NUT	10
?	SM5201	SPEAKER	2
?	MM0207	LOCKWASHER - M6	17
?	MM0176	NUT - M6 X 1.00	17
?	MM0206	LOCKWASHER - M5 (INTERNAL TOOTH)	1
?	MM0373	NUT - M5 X .80	1
?	31127R1	CAPSCREW - M6 X 12	6
?	SM5335	PANEL, OVERHEAD	1
?	PC0257	MODULE, DIMMER CONTROL	1
?	31127R1	CAPSCREW - M6 X 12	4
?	MM0207	LOCKWASHER - M6	4
?	MM0176	NUT - M6	4
?	EG7488	HARNESS, DIMMER INTERFACE	1
?	VZ4843	TYRAP	10
?	SM5122	BRACKET	1
?	PC0251	ALARM, SIGNAL	1
?		NOTE: NS = NOT SHOWN	-1
?	TA0602	FITTING, NYLON	2
?	TA0603	FITTING, NYLON	2
?	TM4777	TUBE, NYLON	2
?		NOTE: (1) MODULE NOT SERVICED AS AN ASSEMBLY -	-1
?		ORDER INDIVIDUAL COMPONENT PARTS.	-1
?		(2) INCLUDED IN TOOL GROUP.	-1

Komatsu AFE48-BM 930E-2 S/N A30161 THRU A30163 CODELCO parts catalog PDF

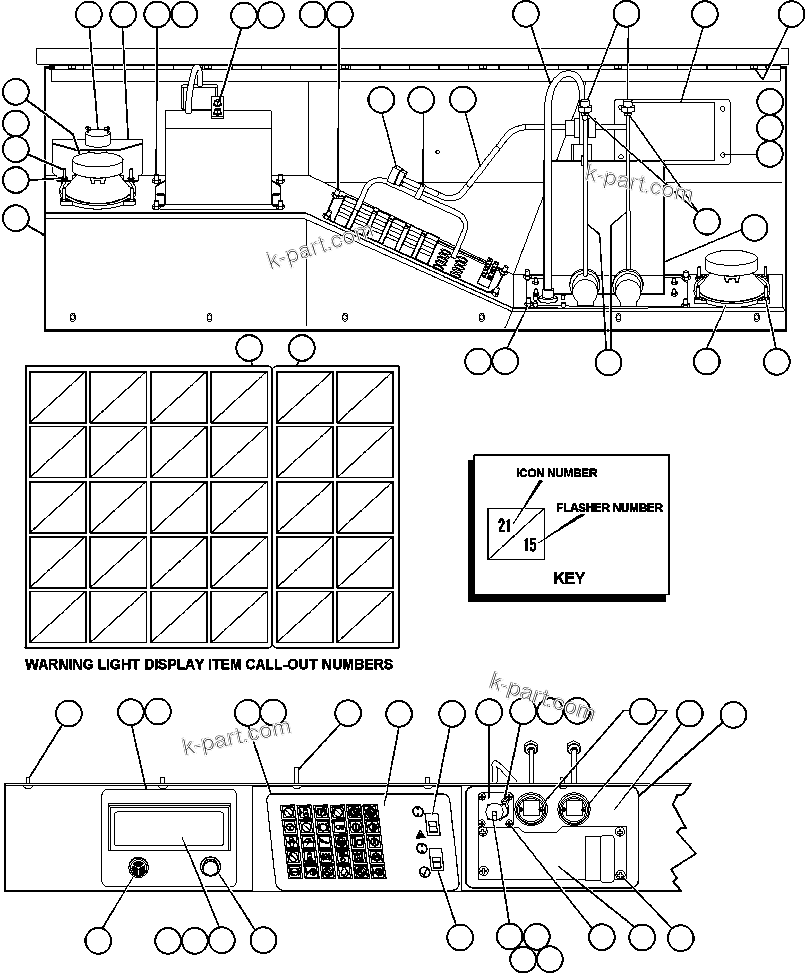

OVERHEAD DASH MODULE (60360) in AFE48-BM 930E-2 S/N A30161 THRU A30163 CODELCO. Diagram image and parts list.
