AFE48-BM 930E-2 S/N A30161 THRU A30163 CODELCO

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	EG4849	BRACKET, MOUNTING	14
?	EH5386	PLATE, MOUNTING	1
?	EG9117	PLATE, MOUNTING	1
?	EG9116	PLATE, MOUNTING	1
?	EH5384	PLATE, MOUNTING	1
?	EG6726	FLAP, MUD	2
?	EG9121	FLAP, MUD	1
?	EG6728	FLAP, MUD	1
?	TY8848	BAR, RETAINER	2
?	EG9119	PLATE	8
?	EH5387	PLATE	2
?	EG9142	BAR, FLAT	1
?	EG9143	BAR, FLAT	1
?	MM0606	CAPSCREW - M10 X 1.50 X 30	88
?	MM0471	LOCKWASHER - M10	108
?	MM0461	FLAT WASHER - M10	128
?	EF4831	BRACKET, ANGLE	1
?	EF4827	BRACKET, ANGLE	1
?	EF4832	BAR, FLAT	1
?	EF4828	BAR, FLAT	1
?	EF4833	FLAP, MUD	1
?	EF4829	FLAP, MUD	1
?	MM0607	CAPSCREW - M10 X 1.50 X 35	64
?	EF3392	BAR, FLAT	4
?		(NOT USED THIS APPLICATION)	-1
?	EF3391	STRIP, BACKUP	4
?	EH5379	FLAP, MUD	2
?	EH5380	FLAP, MUD	2
?	EF3394	FLAP, MUD	2
?	EG9122	FLAP, MUD	1
?	EH5381	STRIP, BACKUP	2

Komatsu AFE48-BM 930E-2 S/N A30161 THRU A30163 CODELCO parts catalog PDF

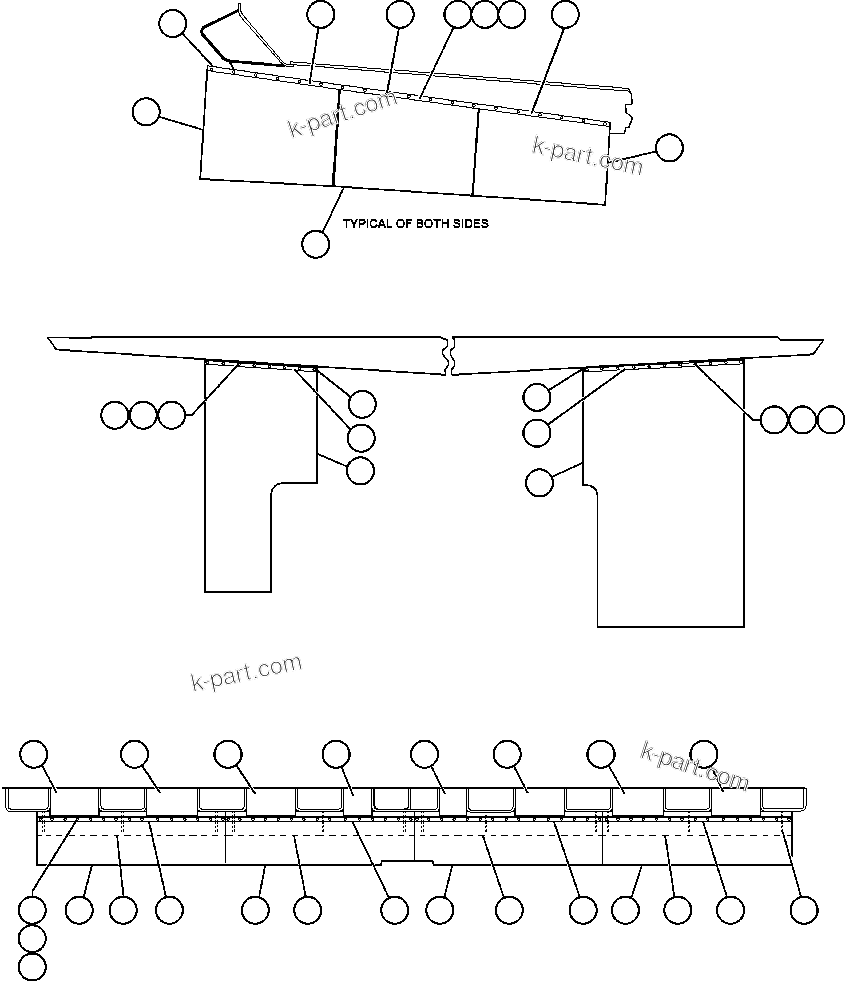

BODY TO DECK & BODY MUD FLAP INSTL (60192) in AFE48-BM 930E-2 S/N A30161 THRU A30163 CODELCO. Diagram image and parts list.
