AFE48-BM 930E-2 S/N A30161 THRU A30163 CODELCO

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	PC0544	PANEL ASSEMBLY	1
?	GE0375	BACKPLANE WIRE	1
?	GE0526	HINGE, WELD-ON	1
?	GE0367	CARD - (FB144)	1
?	GE0466	KIT, BATTERY	1
?	GE0368	CARD - (FB160)	1
?	GE0309	CARD - (FB104)	1
?	VE8180	GUIDE, CARD	8
?	VE8181	CATCH	2
?	VE8183	STRIKE	2
?	GE0370	BLOCK, TAP	2
?	GE0371	COVER	1
?	VE8188	SPRING	1
?	VE8189	LOCKWASHER	2
?	TD1549	NUT	2
?	VE4655	FLAT WASHER	2
?	VC1390	LOCKWASHER - #10	30
?	VJ9161	MACHINE SCREW - #10 - 32NF X 1/2"	2
?	VS6662	FLAT WASHER - #10	16
?	VE8187	MACHINE SCREW	2
?	SF2755	NUT - #10	22
?	VE8178	LOCKWASHER	4
?	VE8184	NUT, MINIATURE	4
?	VE8182	MACHINE SCREW	8
?	TR5445	LOCKWASHER - #6	8
?	GE0372	CEMENT	-1
?	VE4385	NUT, CAP	16
?	GE0374	PLATE, FACE	1
?	VE8196	SOCKET ASSEMBLY	2
?	GE0378	RECEPTACLE	1
?	GE0382	MACHINE SCREW	4
?	HE5125	FLAT WASHER - #6	4
?	VE5959	NUT	4
?	VE8772	PIN, ROLL	1
?	VE8771	LATCH	1
?	PB2075	PIN, GUIDE	4
?	PB2076	PIN, GUIDE	4
?	BF3883	COVER	1

Komatsu AFE48-BM 930E-2 S/N A30161 THRU A30163 CODELCO parts catalog PDF

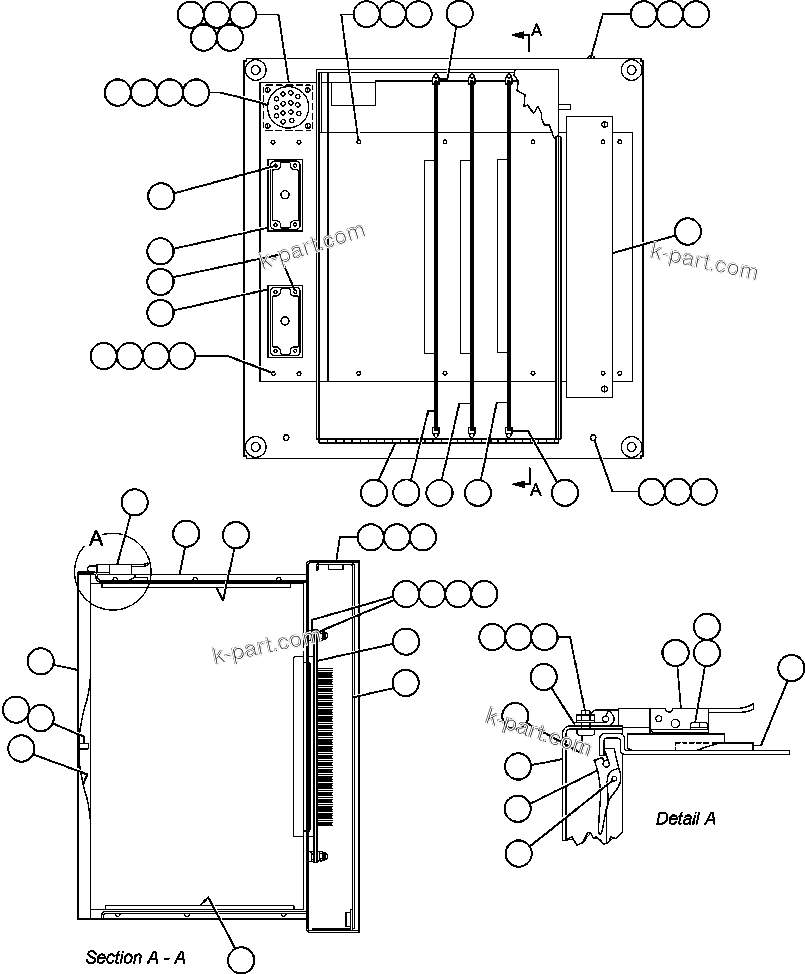

T.C.I. PANEL (PC0544) (60335) in AFE48-BM 930E-2 S/N A30161 THRU A30163 CODELCO. Diagram image and parts list.
