AFE50-AJ 830E S/N A30644-A30645 ANTELOPE COAL

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	C1676	CAPSCREW - 7/16" - 20NF X 1 1/2"	2
?	TD0795	LOCKWASHER - 7/16"	2
?	SM5385	BASE, COMPONENTS	1
?	SM5926	LIGHTER, CIGAR - 12 VOLT	1
?	SC5252	MACHINE SCREW - #8 - 32NC X 3/4"	1
?	VM9910	LOCKWASHER - #8	1
?	TV2179	NUT - #8 - 32NC	1
?	VE2894	BEZEL	1
?	SM0550	PANEL, SHIFT CONSOLE	1
?	VE2590	TRAY, ASH	1
?	SM5110	SENSOR, ANGLE	1
?	TG5720	CAPSCREW - 3/8" - 16NC X 1"	3
?	TR4436	FLAT WASHER - 3/8"	3
?	TC1231	LOCKWASHER - 3/8"	3
?	TC1233	NUT - 3/8" - 16NC	3
?	PB8639	SWITCH, ROCKER	2
?	TF7982	GROMMET, RUBBER	1
?	PB8624	SWITCH, PUSH BUTTON	1
?	PB6343	BUTTON, PLUG	1
?	PB4060	SWITCH, PUSH BUTTON	1
?	PB6503	SWITCH, PUSH PULL	1
?	PB5957	KNOB	1
?	ED2863	POTENTIOMETER	1
?	TY8745	SWITCH, CONTROL	1
?	WA4513	SCREW, SELF-TAPPING - #10 - 24NC X 1/2"	9
?	TZ7321	PLATE, NAME - LICLU	1
?	MM0593	CAPSCREW - M8 X 1.25 X 20	10
?	MM0470	LOCKWASHER - M8	15
?	SM2224	SEAL, STRIP	1
?	SM0887	COVER, COMPONENTS BASE	1
?	SM2223	SEAL, STRIP	1
?		HARNESS (1)	1
?	SM2222	SEAL, STRIP	2
?	SM2826	SEAL, STRIP	1
?	SM2463	SEAL, STRIP	1
?	SM2827	SEAL, STRIP	1
?	SM2324	SEALANT	1
?		HARNESS (1)	1
?	MM0016	CAPSCREW - M8 X 1.25 X 16	3
?	MM0460	FLAT WASHER - M8	3
?	TF6925	CLAMP	3
?	SM5278	PLATE, BENT	1
?	MM0019	CAPSCREW - M6 X 1.00 X 16	2
?	MM0469	LOCKWASHER - M6	2
?	MM0459	FLAT WASHER - M6	2
?		HARNESS (1)	1
?	PB7004	AID MODULE ASSEMBLY A.I.D.	1
?	VE3422	BOX (W/O CARDS)	1
?	BF1539	CHASSIS ASSEMBLY	1
?	BF1540	CARD CAGE ASSEMBLY	1
?	BF1541	MOTHERBOARD ASSEMBLY	1
?	BF1542	FRONT PANEL ASSEMBLY	1
?	VE1407	KNOB	1
?	BF1552	RING, RETAINING	1
?	VJ8805	CARD, FLASHER/COOLANT LEVEL	1
?	VJ8806	CARD, TEMPERATURE	1
?	VJ9023	CARD, DIODE (W/SOUND)	1
?	VJ9024	CARD, DIODE (W/O SOUND)	1
?	PB5672	CARD, SINGLE TEMPERATURE LATCH	1
?	MM0582	CAPSCREW - M6 X 1.00 X 20	4
?	MM0469	LOCKWASHER - M6	4
?	TZ7319	PLATE, NAME - RD1	1
?	TZ7320	PLATE, NAME - RD2	1
?	MM0718	NUT - M8 X 1.25	1
?	MM0711	FLAT WASHER - M6 (HARDENED)	4
?	PC0040	CARD, OIL LEVEL TEMPERATURE	1
?	VJ9025	CARD, DUAL HOT SWITCH INVERTER	1
?	PB8624	SWITCH, PUSH BUTTON	1
?	SM0628	COVER	1
?	HE2467	MACHINE SCREW - #6 - 32NC X 1/2"	2
?	HE5125	FLAT WASHER - #6	4
?	DF4944	LOCKWASHER - #6	2
?	DD2468	NUT - #6 - 32NC	2
?	EG4513	HARNESS (DATA STORE)	1
?		NOTE: (1) ALL SERVICED AS EH7497 BUDDY	-1
?		SEAT AREA HARNESS.	-1

Komatsu AFE50-AJ 830E S/N A30644-A30645 ANTELOPE COAL parts catalog PDF

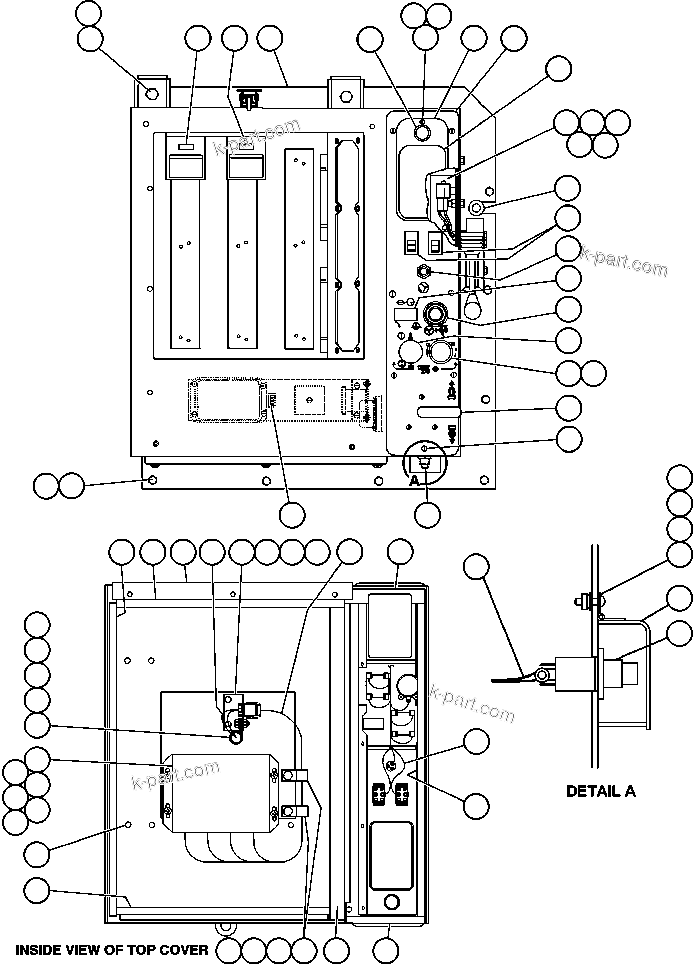

CAB INTERFACE COMPARTMENT (60267) in AFE50-AJ 830E S/N A30644-A30645 ANTELOPE COAL. Diagram image and parts list.
