AFE50-AJ 830E S/N A30644-A30645 ANTELOPE COAL

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	TF8090	CLAMP, SPLIT	4
?	VG9095	O-RING	2
?	C1614	CAPSCREW - 1/2" - 13NC X 1 1/2"	28
?	C1540	LOCKWASHER - 1/2"	52
?	WA5630	CLAMP, SPLIT	8
?	VG9096	O-RING	2
?	C1615	CAPSCREW - 1/2" - 13NC X 1 3/4"	24
?	PB6921	VALVE, HOIST CONTROL (SEE INDEX)	1	40003
?	WB0584	FITTING, STRAIGHT	1
?	HA6231	HOSE	1
?	WB0375	FITTING, ELBOW - 90 DEG	1
?	WB0557	FITTING, TEE	1
?	PB8318	ELBOW	1
?	TF3231	CLAMP, SPLIT	10
?	WA0187	O-RING	1
?	PB8761	PUMP, HOIST (SEE INDEX)	1	60246
?	VG9058	RING, SEATING	4
?	WA0098	O-RING	1
?	WA0878	CAPSCREW - 3/4" - 10NC X 2 1/2" (12 PT)	4
?	PB9875	PUMP, STEERING (SEE INDEX)	1	41335
?	WA5629	CLAMP, SPLIT	2
?	C1631	CAPSCREW - 5/8" - 11NC X 2 1/4"	4
?	C1541	LOCKWASHER - 5/8"	16
?	WA3568	FITTING, TUBE	2
?	WB0547	FITTING, ELBOW - 45 DEG	2
?	PB4685	COUPLING, HYDRAULIC	2
?	TA2968	PLUG, DUST	2
?	WB0520	FITTING, ELBOW - 90 DEG	1
?	VL9963	CLAMP, SPLIT	2
?	C1629	CAPSCREW - 5/8" - 11NC X 1 3/4"	6
?	VN7716	CLAMP, SPLIT	2
?	C1630	CAPSCREW - 5/8" - 11NC X 2"	4
?	WA0361	FLAT WASHER - 5/8"	6
?	C7595	CAPSCREW - 5/8" - 11NC X 1 1/4"	4
?	EC8707	BRACKET	1
?	VN9952	NUT, LOCK - 5/8" - 11NC	2
?	DC7524	CAPSCREW - 3/8" - 16NC X 7/8"	2
?	WA0720	FLAT WASHER - 3/8"	2
?	C0312	LOCKWASHER - 3/8"	2
?	WB0580	FITTING, STRAIGHT	1
?	TY8353	VALVE, SHUT-OFF (SEE INDEX)	1	40166
?	VH6718	CLAMP, SPLIT	4
?	WA0232	O-RING	1

Komatsu AFE50-AJ 830E S/N A30644-A30645 ANTELOPE COAL parts catalog PDF

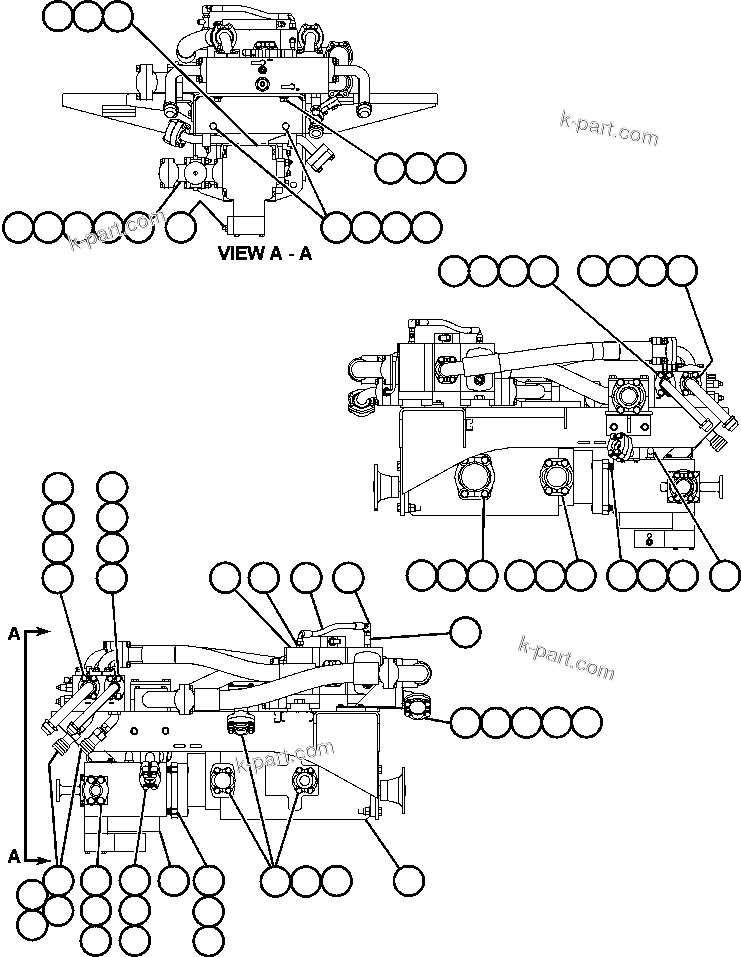

PUMP/VALVE MODULE - 1 (41634) in AFE50-AJ 830E S/N A30644-A30645 ANTELOPE COAL. Diagram image and parts list.
