AFE50-AJ 830E S/N A30644-A30645 ANTELOPE COAL

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	SM1082	INSTRUMENT PANEL, MOLDED	1
?	SM5164	DASH MODULE, UPPER - L.H. (1)	1
?	SM4358	PLATE, MOUNTING	1
?	EG4130	HARNESS	1
?	VH5017	STRAP, TIE	5
?	VZ5080	BULB	6
?	PB8551	GAUGE, OIL PRESSURE	1
?	PB6927	VOLTMETER	1
?	PB6982	INSERT, BLANK	2
?	PB7903	LOUVER, BALL	1
?	SM2785	HOURMETER	1
?	PB6926	GAUGE, FUEL LEVEL	1
?	PB6401	KIT, BEZEL OVERLAY	6
?	PB6303	GAUGE, WATER TEMPERATURE	1
?	SM2722	LEXAN OVERLAY	1
?	SM0926	SCREW - M6	18
?	PB8320	ADAPTOR	8
?	PB8319	LOUVER	8
?	SM5367	SCREW - M6	9
?	PB6402	KIT, BEZEL OVERLAY	2
?	PB6985	SPEEDOMETER, DIGITAL - MPH	1
?	TY8743	PANEL, BLANK INSERT	1
?	WA4605	SCREW, PHILLIPS - #10 - 24NC X 1/2"	2
?	TW3834	INDICATOR, HIGH BEAM	1
?	VZ5080	BULB	3
?	TW5472	INDICATOR, TURN	2
?	WA6639	LEXAN OVERLAY	1
?	PB6984	TACHOMETER - DIGITAL	1
?	PB8658	SCREW - M6	11
?	SM5458	DASH MODULE, UPPER - R.H. (1)	1
?	SM5328	PLATE, MOUNTING	1
?	PB7019	LIGHT, INDICATOR	1
?	VL6234	BULB	1
?	PB6972	SWITCH, ROCKER	2
?	EG8345	HARNESS	1
?	VH5017	STRAP, TIE	5
?	SM2729	LEXAN OVERLAY	1
?	PB7903	LOUVER, BALL	1
?	SM5296	DASH MODULE, LOWER - R.H. (1)	1
?	SM4356	PLATE, MOUNTING	1
?	PB7019	LIGHT, INDICATOR	1
?	VL6234	BULB	1
?	SM5295	LEXAN OVERLAY	1
?	PB6972	SWITCH, ROCKER	3
?	EG8948	HARNESS	1
?	VH5017	STRAP, TIE	5
?	PB9752	SWITCH, ROCKER	1
?	VM7105	SWITCH, KEY	1
?	SM1088	PLATE, RETAINER - R.H.	1
?	TX7829	SEAL, STEERING COLUMN	1
?	SM1086	PLATE, RETAINER - L.H.	1
?	SM5317	DASH MODULE, LOWER - L.H. (1)	1
?	SM4357	PLATE, MOUNTING	1
?	EG4129	HARNESS	1
?	VH5017	STRAP, TIE	5
?	TW5117	RHEOSTAT	1
?	PB0529	KNOB	1
?	TY9878	CONTROL, ELECTRIC WIPER	1
?	PB7026	SWITCH, ROCKER	1
?	PB6343	PLUG, BUTTON	1
?	PB7019	LIGHT, INDICATOR	1
?	VL6234	BULB	1
?	SM5326	LEXAN OVERLAY	1
?	SM2783	HOSE, AIR	2
?	CC6103	CLAMP, WORM DRIVE	4
?		(NOT USED THIS APPLICATION)	-1
?		(NOT USED THIS APPLICATION)	-1
?		(NOT USED THIS APPLICATION)	-1
?		NOTE: NS = NOT SHOWN	-1
?	VS8192	BOARD, TERMINAL (INSTR PANEL LIGHTS)	1
?	TG1929	MACHINE SCREW - #10 - 24NC X 1/2"	2
?	DC3101	LOCKWASHER - #10	2
?		NOTE: (1) NOT SOLD AS AN ASSEMBLY.	-1
?		ORDER INDIVIDUAL COMPONENT PARTS.	-1

Komatsu AFE50-AJ 830E S/N A30644-A30645 ANTELOPE COAL parts catalog PDF

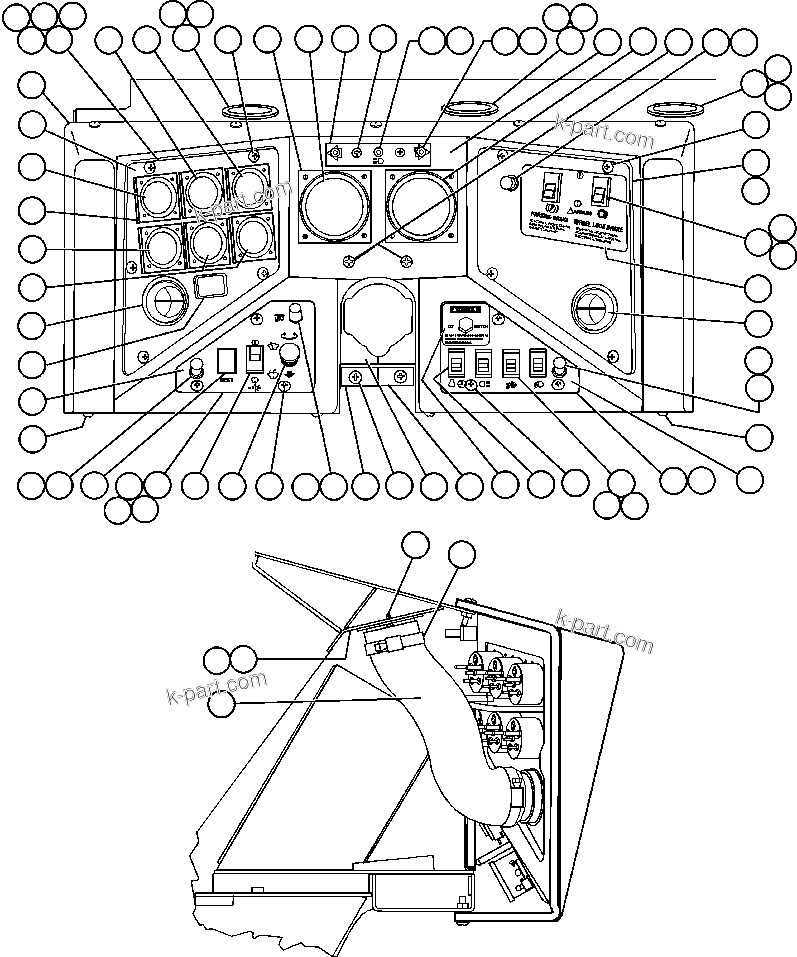

INSTRUMENT PANEL ASSEMBLY (55074) in AFE50-AJ 830E S/N A30644-A30645 ANTELOPE COAL. Diagram image and parts list.
