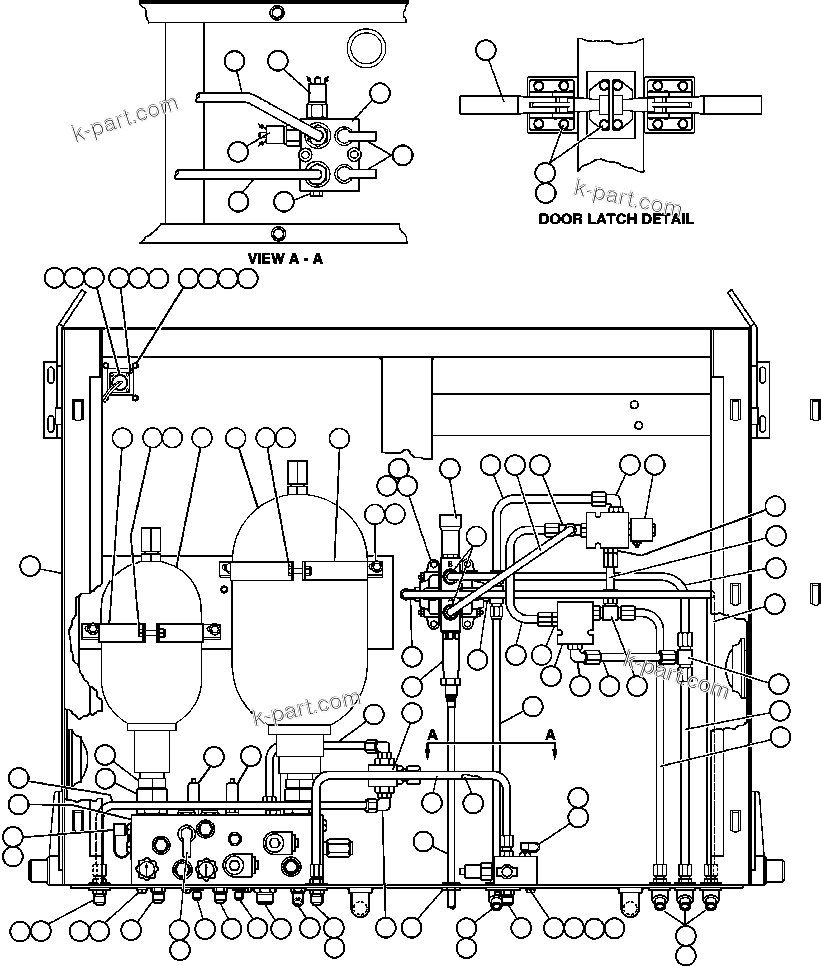

BRAKE CABINET ASSEMBLY - 1 (EH3880) | AFE50-AG 830E S/N A30641 ANTELOPE COAL

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE50-AG 830E S/N A30641 ANTELOPE COAL

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	WA5641	MACHINE SCREW - #4 - 40NC X 3/8"	4
?	SM2117	PLATE, NUT CONNECTOR SHELL	1
?	SM0721	GASKET	1
?	SF0542	MACHINE SCREW - #4 - 40NC X 5/16"	1
?	VD7129	LOCKWASHER - #4	1
?	VN9717	NUT - #4	1
?	PB7058	ACCUMULATOR - 2.5 GAL (SEE INDEX)	1	40016A
?	C1605	CAPSCREW - 3/8" - 16NC X 1 3/4"	2
?	TG9225	LOCKNUT - 3/8" - 16NC	2
?	TY8075	BRACKET, MOUNT	1
?	MM0056	CAPSCREW - M10 X 1.50 X 40	8
?	MM0461	FLAT WASHER - M10	8
?	MM0178	NUT - M10 X 1.50	4
?	PB6922	HOIST PILOT VALVE (SEE INDEX)	1	40064
?	WB0567	FITTING, TEE	1
?	EB4164	TUBE	1
?	EC6227	TUBE	1
?	WB0557	FITTING, TEE	2
?	WB0508	FITTING, ELBOW - 90 DEG	5
?	PB7242	SOLENOID VALVE ASSEMBLY (SEE INDEX)	1	40045
?	TZ5040	TUBE	1
?	EC6231	TUBE	1
?	EC6228	TUBE	1
?	WB0418	FITTING, TEE	1
?	EC3343	TUBE	1
?	TZ5042	TUBE	1
?	EC3342	TUBE	1
?	PB8367	VALVE, PILOTED CHECK	1
?	EG0608	TUBE	1
?	EG0607	TUBE	1
?	PB6895	KIT, CONNECTOR	1
?	PB6894	CABLE	1
?	WB0602	FITTING, STRAIGHT ADAPTOR	2
?	WA4796	FITTING, O-RING	2
?	PB6528	COUPLING, DIAGNOSTIC	3
?	PB6041	PLUG, DUST	3
?	EF8198	TUBE	1
?	EF8002	TUBE	1
?	PB6803	VALVE, SHUTTLE	1
?	VE2959	O-RING	2
?	EF8197	TUBE	1
?	PB6784	SWITCH, PRESSURE - PARK BRAKE	1
?	PB8308	SWITCH, PRESSURE - ACCUMULATOR	1
?	EJ1726	CABINET, BRAKE	1
?	TY9260	TUBE	1
?	PC0080	MANIFOLD, BRAKE (SEE INDEX)	1	55346
?	WB0249	FITTING, ELBOW - 45 DEG	4
?	SR6301	CAPSCREW - 1/4" - 20NC X 2 3/4"	2
?	C5774	LOCKWASHER - 1/4"	2
?	VN9773	FLAT WASHER - 1/4"	2
?	C5780	NUT - 1/4" - 20NC	2
?	WB0585	FITTING, STRAIGHT ADAPTOR	4
?	SG2103	GROMMET, RUBBER	1
?	WB0430	FITTING, BULKHEAD - STRAIGHT	3
?	TF2449	FLAT WASHER - 3/4"	12
?	WB0537	FITTING ELBOW - 45 DEG	1
?	WB0593	FITTING, STRAIGHT ADAPTOR	1
?	WB0581	FITTING, STRAIGHT ADAPTOR	1
?	WB0584	FITTING, STRAIGHT ADAPTOR	8
?	WB0574	FITTING, STRAIGHT ADAPTOR	1
?	C1601	CAPSCREW - 3/8" - 16NC X 3/4"	4
?	DF3042	FLAT WASHER - 3/8"	4
?	PB6785	SWITCH, PRESSURE - BRAKE LOCK LOW PRESSURE	1
?	TY7550	BLOCK, JUNCTION	1
?	VM0314	PLUG, O-RING	2
?	PB6992	SWITCH, PRESSURE - STOP LIGHT	1
?	PB1006	LATCH/KEEPER SET	4
?	MM0019	CAPSCREW - M6 X 1.00 X 16	24
?	MM0702	FLAT WASHER - M6	24
?	PB7057	ACCUMULATOR - 1 GALLON (SEE INDEX)	1	40016
?	TY8072	BRACKET, MOUNTING	1
?	MM0581	CAPSCREW, M6 X 1.00 X 16	4
?	MM0469	LOCKWASHER - M6	4
?	MM0176	NUT - M6 X 1.00	4
?	SM2784	PLATE, CONNECTOR MOUNTING	1
?		(NOT SOLD AS AN ASSEMBLY.	-1
?		ORDER COMPONENT PARTS.)	-1
